MSI A520M-A PRO DDR4 AM4 Micro ATX Motherboard
MSI A520M-A PRO DDR4 AM4 Micro ATX Motherboard
E£4000.00E£3099.00
MSI A520M-A PRO DDR4 AM4 Micro ATX Motherboard
Brand | MSI |
Model | A520M-A PRO |
SOCKET | AMD Socket AM4 |
CHIPSET | AMD A520 Chipset |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 2 |
MAX MEMORY (GB) | 64 |
PCI-E X16 | 1 |
PCI-E GEN | Gen3 |
PCI-E X1 | 1 |
SATAIII | 4 |

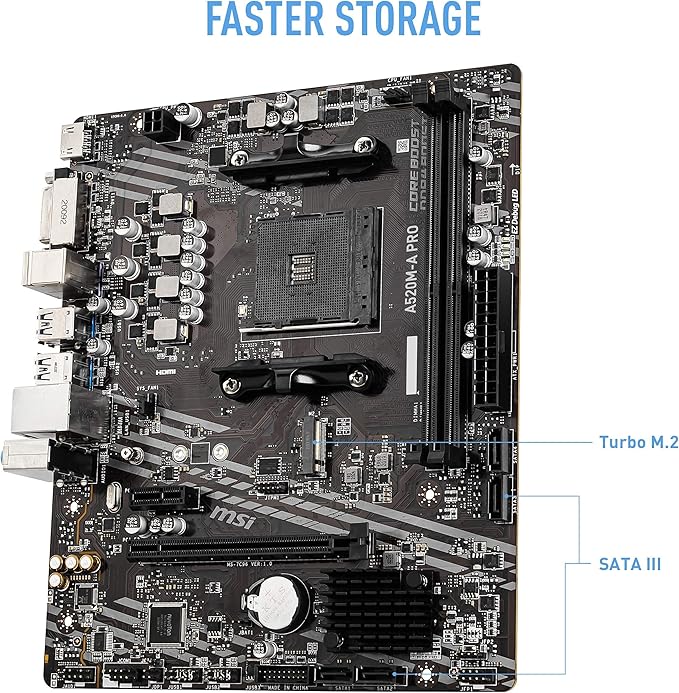

M.2 SLOT | 1 |
USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
USB 3.2 PORTS (REAR) | 4(Gen 1, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 2(Type A) |
SERIAL PORTS(FRONT) | 1 |
AUDIO PORTS (REAR) | Realtek ALC892/ALC897 Codec |
DVI-D | 1 |
HDMI | 1 |
DIRECTX | 12 |
OPERATING SYSTEM | Support for Windows 10 64-bit |
FORM FACTOR | MATX |
CPU | Supports 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update |
Memory | 2x DDR4 memory slots, support up to 64GB |
Slots | 1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slot |
Storage | 1x M.2 slot, 6x SATA 6Gbps ports |
USB Port | 6x USB 3.2 Gen 1, 6x USB 2.0 |
Audio | 8-Channel(7.1) HD Audio with Audio Boost |
LAN | Realtek 8111H Gigabit LAN controller |
Brand Name | MSI |
CPU Socket | Socket AM4 |
Compatible Devices | Personal Computer |
RAM Memory Technology | DDR4 |
Compatible Processors | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processorsSupports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
Chipset Type | AMD A520 |
Memory Clock Speed | 4600 MHz |
Platform | Windows 10 |
Model Name | PRO |
Memory Storage Capacity | 4 GB |
