MSI PRO A620M-E ProSeries Motherboard (AMD AM5, DDR5, PCIe 4.0, SATA 6Gb/s, M.2, USB 3.2 Gen 1, Gbps LAN, DVI/HDMI, mATX)

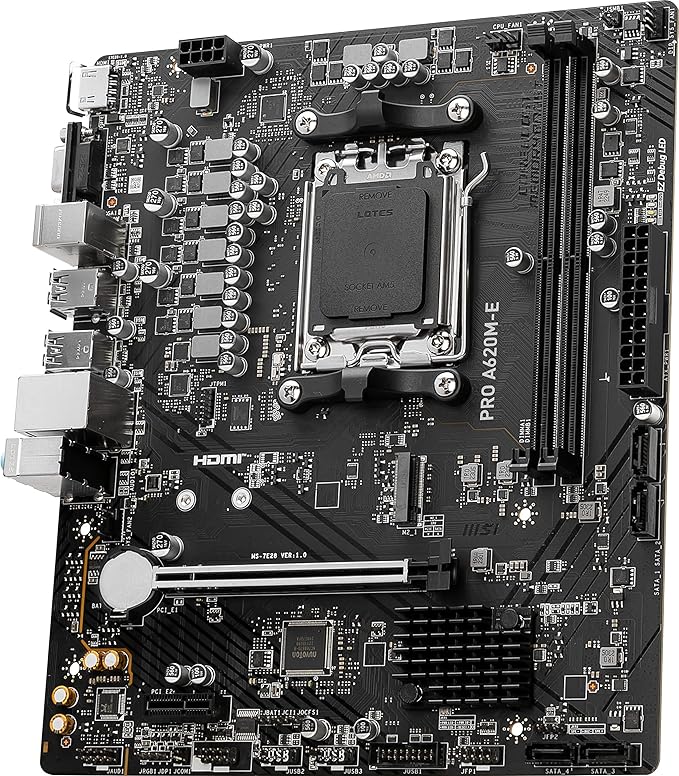

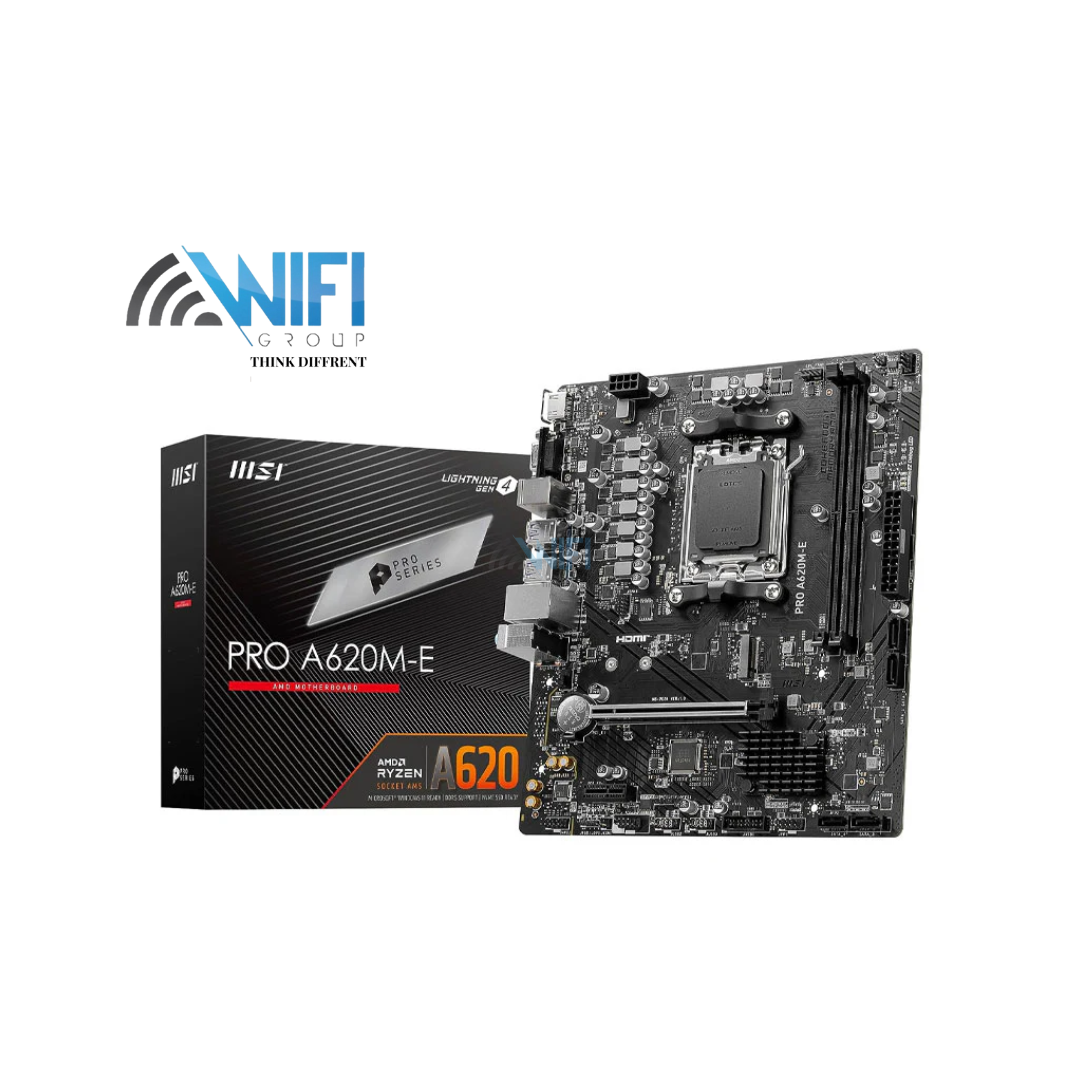

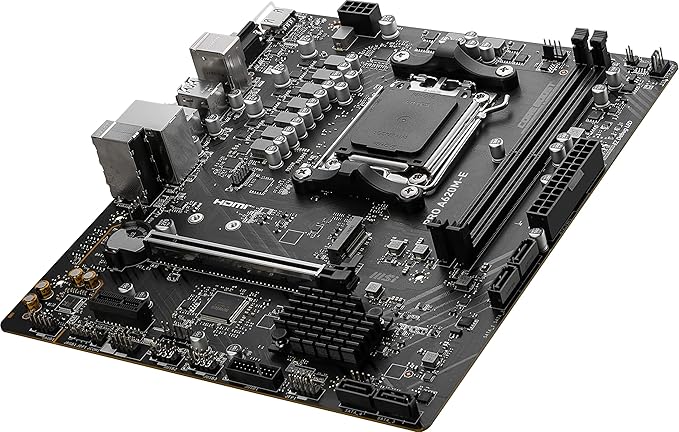

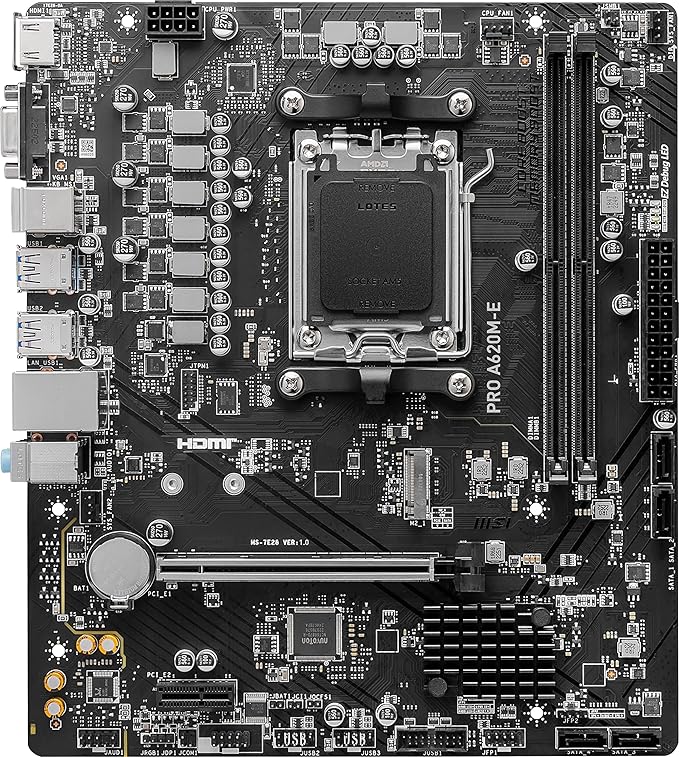

MSI PRO A620M-E ProSeries Motherboard

• Supports AMD Ryzen 7000 Series Desktop Processors

• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

• CHIPSET

  	AMD A620
  CPU SUPPORT	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
  MEMORY	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
  ONBOARD GRAPHICS	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  STORAGE	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
  RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
  LAN	Realtek RTL8111H Gigabit LAN
  AUDIO	Realtek ALC897 Codec 7.1-Channel High Definition Audio
  INTERNAL I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
  LED FEATURE	4x EZ Debug LED
  BACK PANEL PORTS	HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0
  OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
  PCB DIMENSION (W × L)	mATX 211mmx243.84mm
