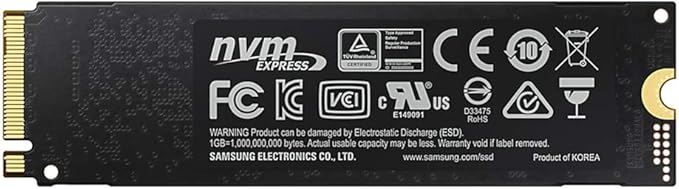

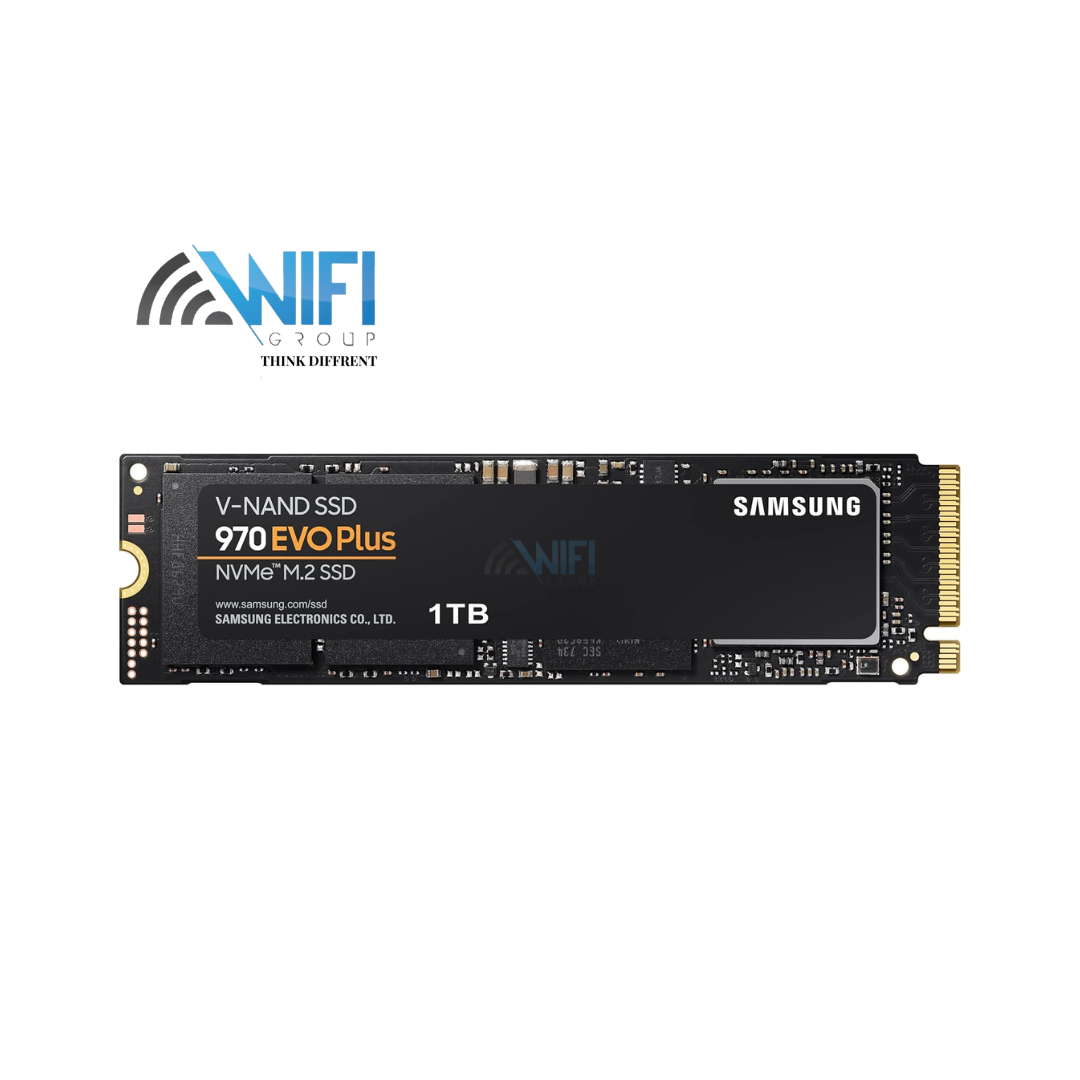

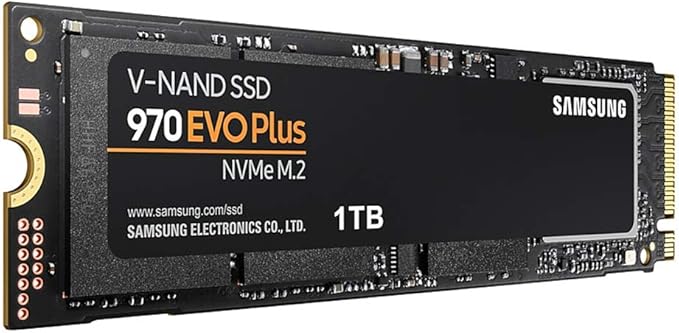

Samsung 970 EVO Plus NVMe M.2 1TB SSD

Samsung 970 EVO Plus NVMe M.2 SSD

Type
Product Type
NVMe SSD

Storage Type

Internal

Interface
PCIe Gen 3.0 x4, NVMe 1.3

Read/Write Speeds

3,500/3,300 MB/s

Usage Application
Client PCs

Series
970 EVO Plus

Application
Consumer

Yes

Storage
Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Key Features
Sequential Read Speed
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed
Up to 3,300 MB/s * Performance may vary based on system hardware & configuration

Random Read Speed
Random Read (4KB, QD32): Up to 620,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration

Random Write Speed
Random Write (4KB, QD32): Up to 560,000 IOPS; Random Write (4KB, QD1): Up to 62,000 IOPS * Performance may vary based on system hardware & configuration

Controller
In-house

NAND Flash
Samsung V-NAND 3-bit MLC

Cache Memory

Samsung 2GB Low Power DDR4 SDRAM

Trim Support
Supported

AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

Security

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

S.M.A.R.T. Support
Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

WWN Support

Not supported

Device Sleep Mode Support
Yes

Temperature proof
Yes

NVMe
Yes

Gaming SSDs
Yes

General
Average Power Consumption (system level)
*Average: 6 W*Maximum: 9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Voltage
3.3 V ± 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Environmental Specs
Operating Temperature
0 - 70 ℃ Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

Form Factor
Product
M.2 (2280)

Dimensions (W x H x D)
Product
3.16" x 0.87" x 0.09"

Weight
Product
0.3 oz.

Software
Management SW

Magician Software for SSD management
