ASUS ZenScreen MB166C Portable USB Monitor- 15.6 inch, Full HD, IPS, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface

ASUS ZenScreen MB166C Portable USB Monitor- 15.6 inch, Full HD, IPS, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface

• 15.6-inch Full HD portable anti-glare IPS display with an ultraslim and thin design helps you get things done more efficiently when you’re on the go

• USB Type-C connector (DP Alt mode) for user convenience and compatibility with compatible devices

• ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience.

• Automatically sense its orientation and switch the monitor between landscape and portrait modes via DisplayWidget software.​

• User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility.

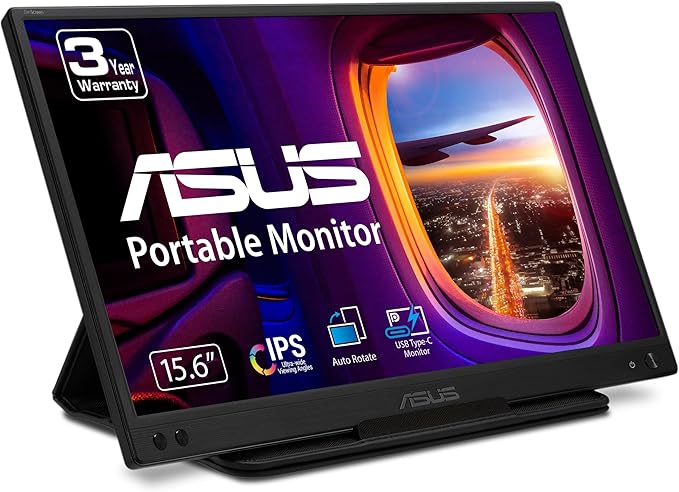

Sleek and portable design

ASUS ZenScreen™ is ideal for life on the road. This sleek portable display is light weight and has a slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.

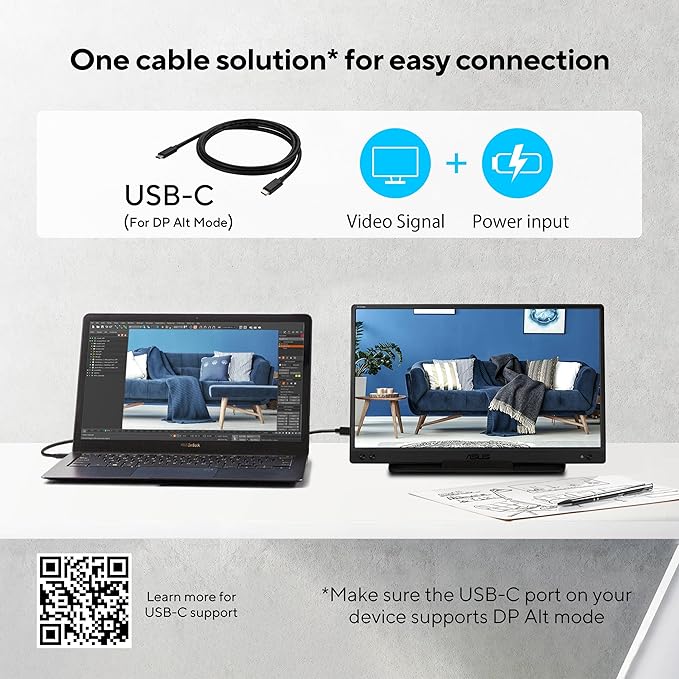

One cable is all you need

ZenScreen MB166C uses a single USB Type-C* connection for both power and video transmission from your host device. This means you have less cables to work with, so you get a neater work area.

ASUS blue light filter

Exclusive ASUS Ultra-Low Blue Light technology protects you from potentially harmful blue light. It offers four filter settings that are easily accessed through the onscreen display menu via the hotkey.

Model

ASUS ZenScreen MB166C

Display

Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 800:1
Display Colors : 262K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes

Video Feature

Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes
DisplayWidget : Yes
Low Blue Light : Yes

Audio Feature

Speaker : No

I/O Ports

USB-C x 1 (DP Alt Mode)

Signal Frequency

Digital Signal Frequency : USB-C: 24-83KHZ (H) / 60Hz(V)

Power Consumption

Power Consumption : 5.24 W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design

Height Adjustment : No
1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension without Stand (W x H x D) : 36.01 x 22.56 x 1.18 cm (14.18" x 8.88" x 0.46")
Box Dimension (W x H x D) : 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")

Weight (Esti.)

Net Weight without Stand : 0.78 kg (1.72 lbs)
Gross Weight : 1.7 kg (3.75 lbs)

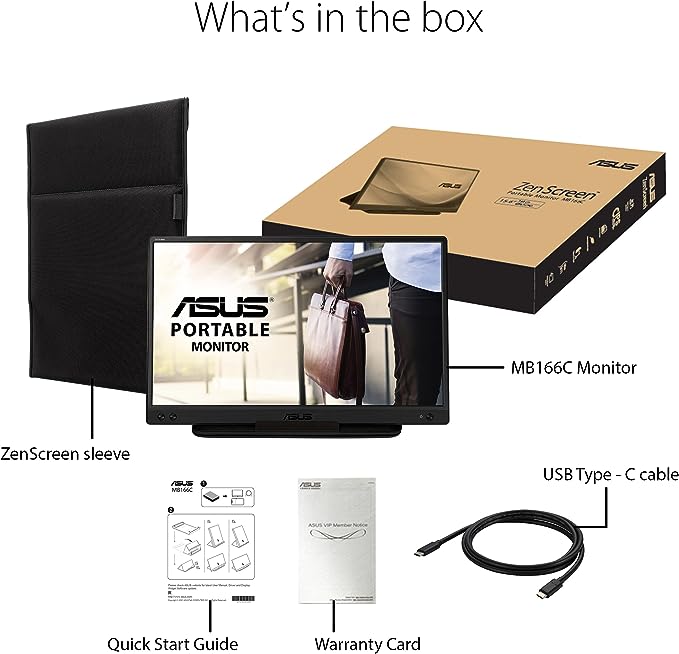

Accessories (vary by regions)

Quick start guide
USB-C cable
Warranty Card
ZenScreen sleeve

Certificate

TÜV Flicker-free
TÜV Low Blue Light
