Gigabyte Aorus C500 Mid Tower Case

Gigabyte Aorus C500 Mid Tower Case

• Optimized Airflow design

• Support Motherboards up to E-ATX

• Up to 420mm Liquid Cooling Compatible

• Support Vertical GPU Installation

• Modular Easy Installation

• Full-Size Tempered Glass Side Panel

• With USB 3.0 x2 and USB 3.1 Gen2 Type-C x1 on I/O panel

• RGB Fusion 2.0

• Pre-installed 4 fans with ARGB & PWM Connector Hub

MAX COMPATIABILITY

The AORUS C500 GLASS is compatible with every single AORUS component and has room to hold up to E-ATX motherboards and radiators up to 420mm, providing users with the upmost flexibility.

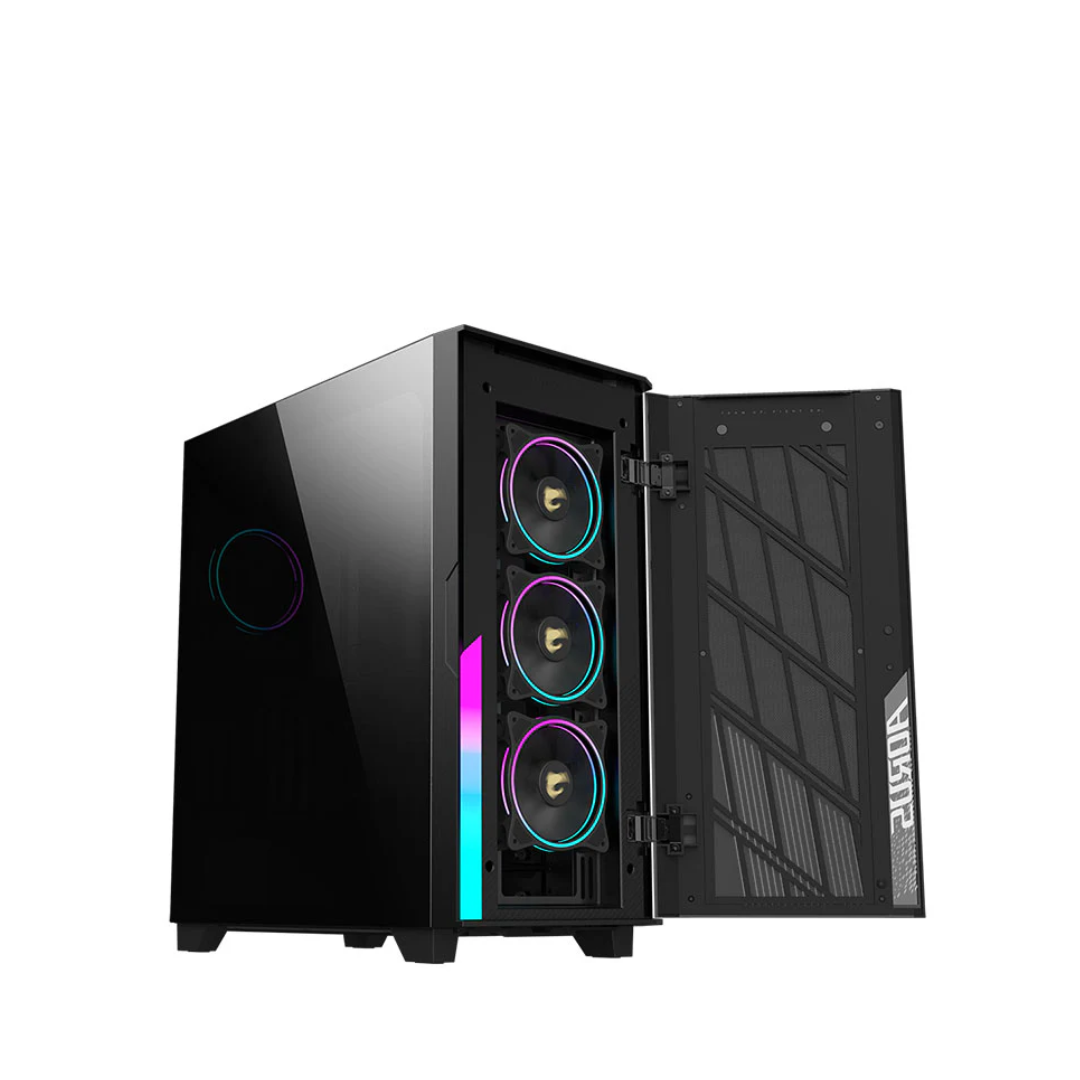

EASY-ACCESS SWING DOOR FRONT PANEL

The swing door design allows easy front access without having to remove the entire panel, which avoids the risk of detaching any cables by accident.

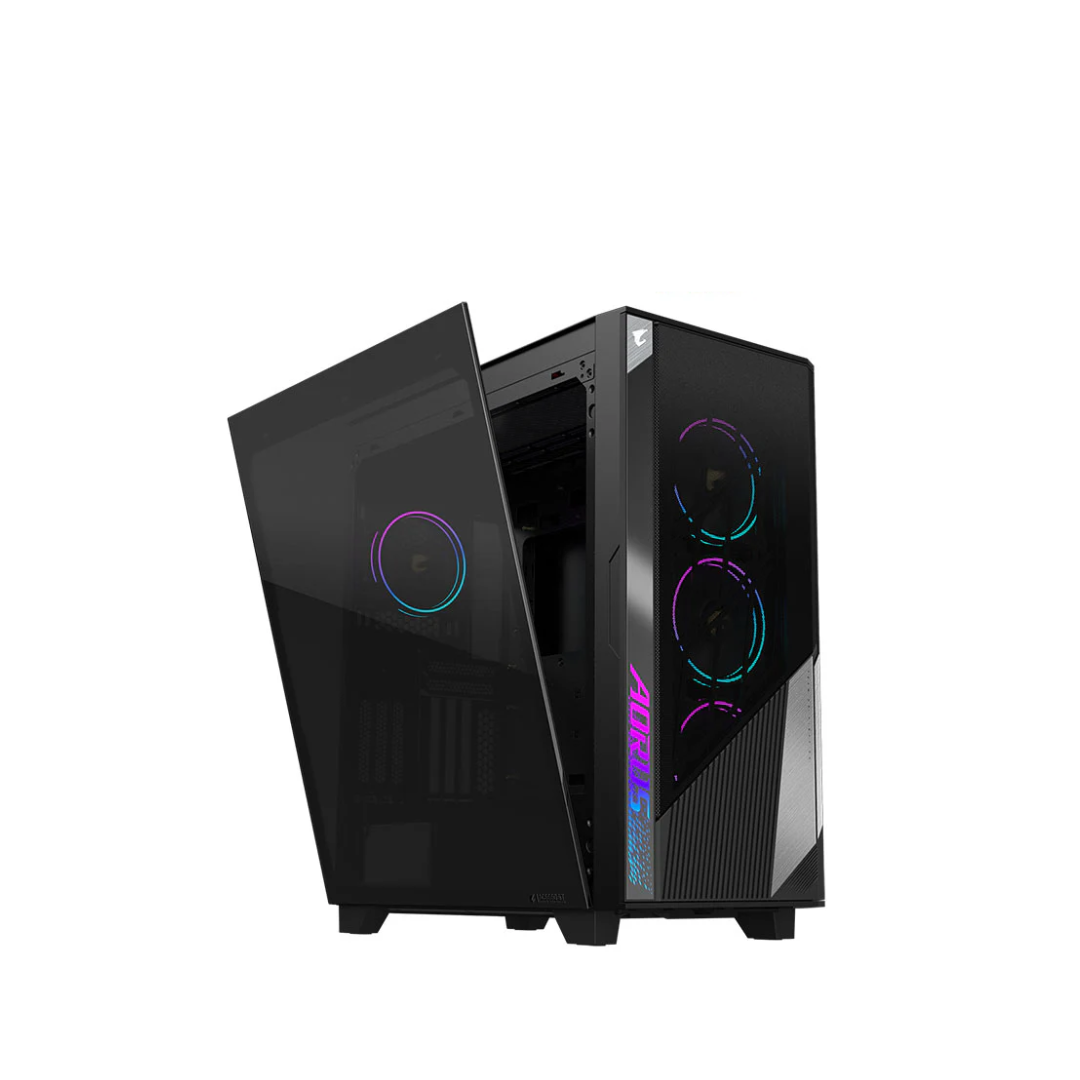

TEMPERED GLASS PANEL WITH ANTI-DROPPING DESIGN

The 4mm tempered glass side panel is thoughtfully designed to be removed by tilting out the top first to prevent accidental drops. The non-drilled design further improves the glass panel's strength and safety.

VERSATILE FRONT I/O.

REAL 11 CORE CABLE.

The 2 USB 3.0 ports use the 11-core USB cables to ensure stable signal integrity. The front I/O also offers versatile connectivity, including a USB 3.1 Gen-2 Type-C port and an audio port

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices

ARGB & PWM CONNECTOR HUB

The built-in ARGB and PWM connector hub is equipped with 5x 5V 3-pin and 5x PWM connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous

• Case Form Factor : Mid Tower

• M/B Type : Mini ITX / Micro ATX / ATX / E-ATX

• Color : Black

• Materials : Steel, Plastic, Glass

• Dimensions : H=548 W=250 D=482 mm (Within ± 1% error)

• Expansion slots : 8 + 3 (Requires PCIE Riser Cable)

• 5.25" Drive Bays : None

• 3.5“/2.5” Drive Bays : 2

• 2.5" Drive Bays : 2

• I/O Panel

  USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out
  (supports AC97 /HD Audio)

• Pre-installed Fan

  Front : 120mm x3 (ARGB & PWM)
  Rear : 120mm x1 (ARGB & PWM)

• Fan Support

  Front : 120mm x3 / 140mm x3
  Top : 120mm x3 / 140mm x2
  Rear : 120mm x1 / 140mm x1

• Radiator Support

  Front : Max 420mm
  Top : Max 360mm
  Rear : 140mm

• Power Supply Type : Standard ATX (Not included)

• Maximum Compatibility

  CPU Height : 190mm
  GPU Length : 420mm
  PSU Length : 220mm

• Vertical GPU Mount ; Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)

• Dust Filters : Top, Front, Bottom

• RGB Lighting : Yes (Support RGB Fusion 2.0)

• Weight : N.W. 13.4 Kg

• Package Dimensions : H=594 W=336 D=584 mm

• Accessories

  1. Manual
  2. Accessories kit
