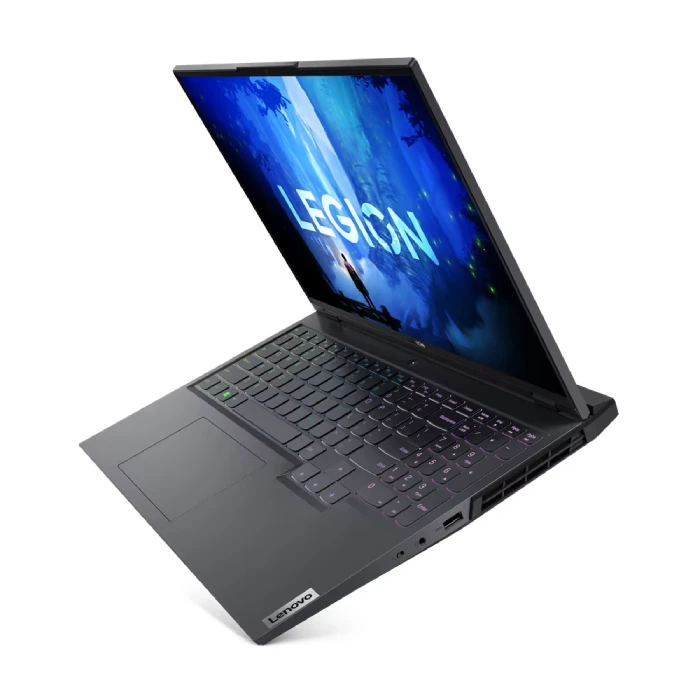

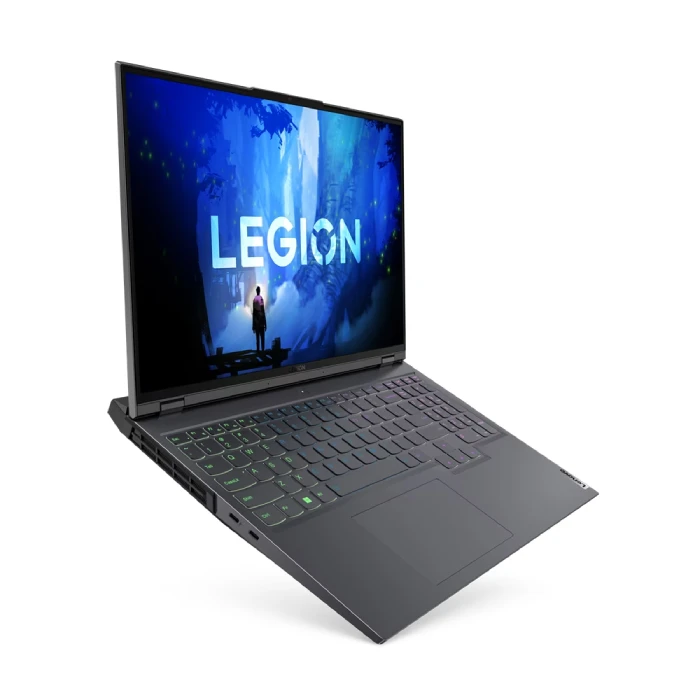

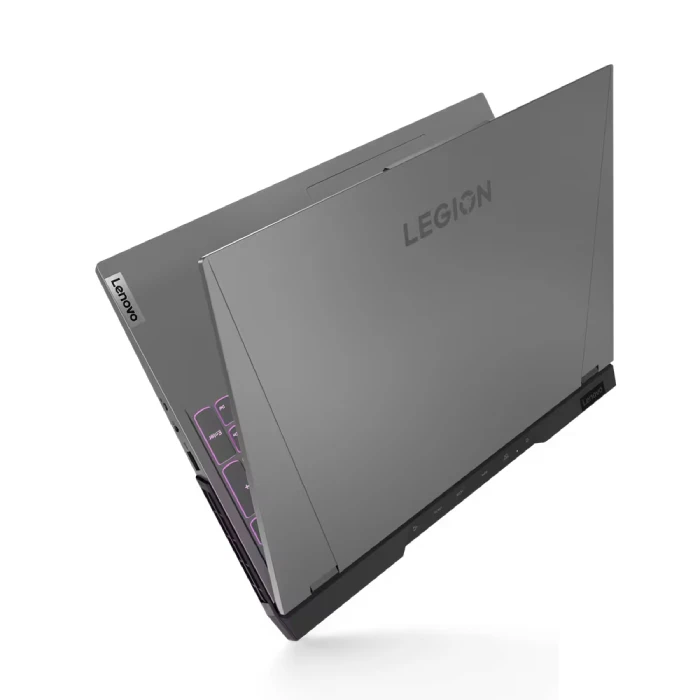

Lenovo Legion 5 Core I7 12700H - 16G Ram - 2TB NVME , VGA Nvidia 8GB RTX 3070 Ti - 15.6 FHD 165Hz -Win 11 Home - Grey

PERFORMANCE

Processor

Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB

Graphics

NVIDIA GeForce RTX 3070 Ti 8GB GDDR6, Boost Clock 1485MHz, TGP 140W

Chipset

Intel SoC Platform

Memory

2x 8GB SO-DIMM DDR5-4800

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-4800 offering

Storage

2x 1TB SSD M.2 2280 PCIe 4.0x4 NVMe

Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB

Storage Slot

Two M.2 2280 PCIe 4.0 x4 slots

RAID Preset

RAID 0

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC3287 codec

Speakers

Stereo speakers, 2W x2, Nahimic Audio

Camera

HD 720p with E-shutter

Microphone

2x, Array

Battery

Integrated 80Wh

Power Adapter

300W Slim Tip (3-pin)

DESIGN

Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision, G-SYNC

Touchscreen

None

Color Calibration

No color calibration

Keyboard

4-Zone RGB Backlit, English (US)

Touchpad

Buttonless Mylar surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)

Case Color

Storm Grey

Surface Treatment

Anodizing

Case Material

Aluminium (Top), PC-ABS (Bottom)

Dimensions (WxDxH)

358.8 x 262.35 x 19.99 mm (14.13 x 10.33 x 0.79 inches)

Weight

Around 2.4 kg (5.3 lbs)

SOFTWARE

Operating System

Windows 11 Home, English

Bundled Software

Office Trial

CONNECTIVITY

Ethernet

100/1000M (RJ-45)

WLAN + Bluetooth

Wi-Fi 6E, 11ax 2x2 + BT5.1

Standard Ports

• 1x USB 3.2 Gen 1 (Always On)

• 2x USB 3.2 Gen 1

• 1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)

• 1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 135W and DisplayPort 1.4)

• 1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4)

• 1x HDMI 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Power connector

Security Chip

Firmware TPM 2.0

Fingerprint Reader

None

Other Security

E-shutter

SERVICE

Base Warranty

1-year, Courier or Carry-in

Included Upgrade

None

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 3

• RoHS compliant
