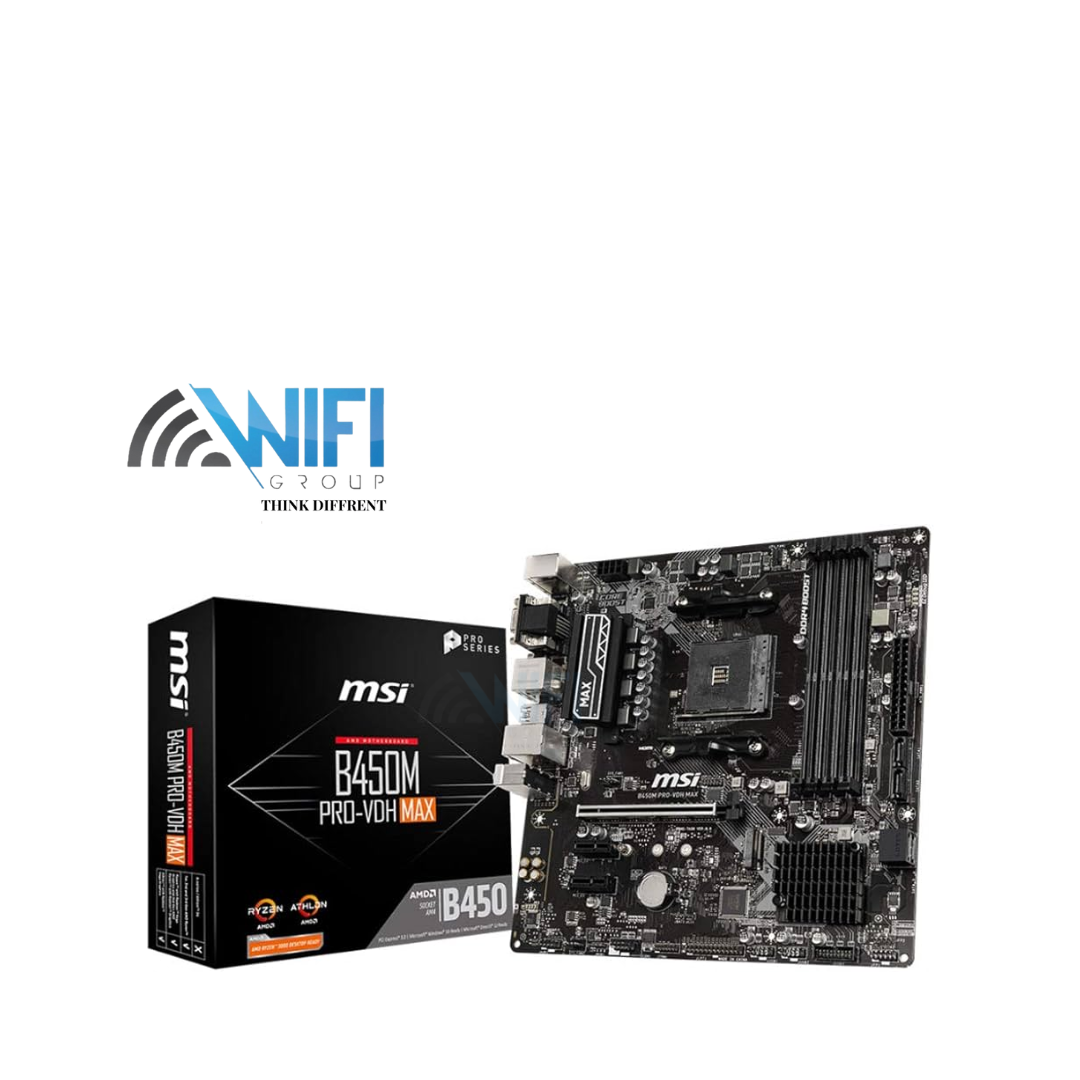

Motherboard MSI AMD B450M PRO-VDH Max

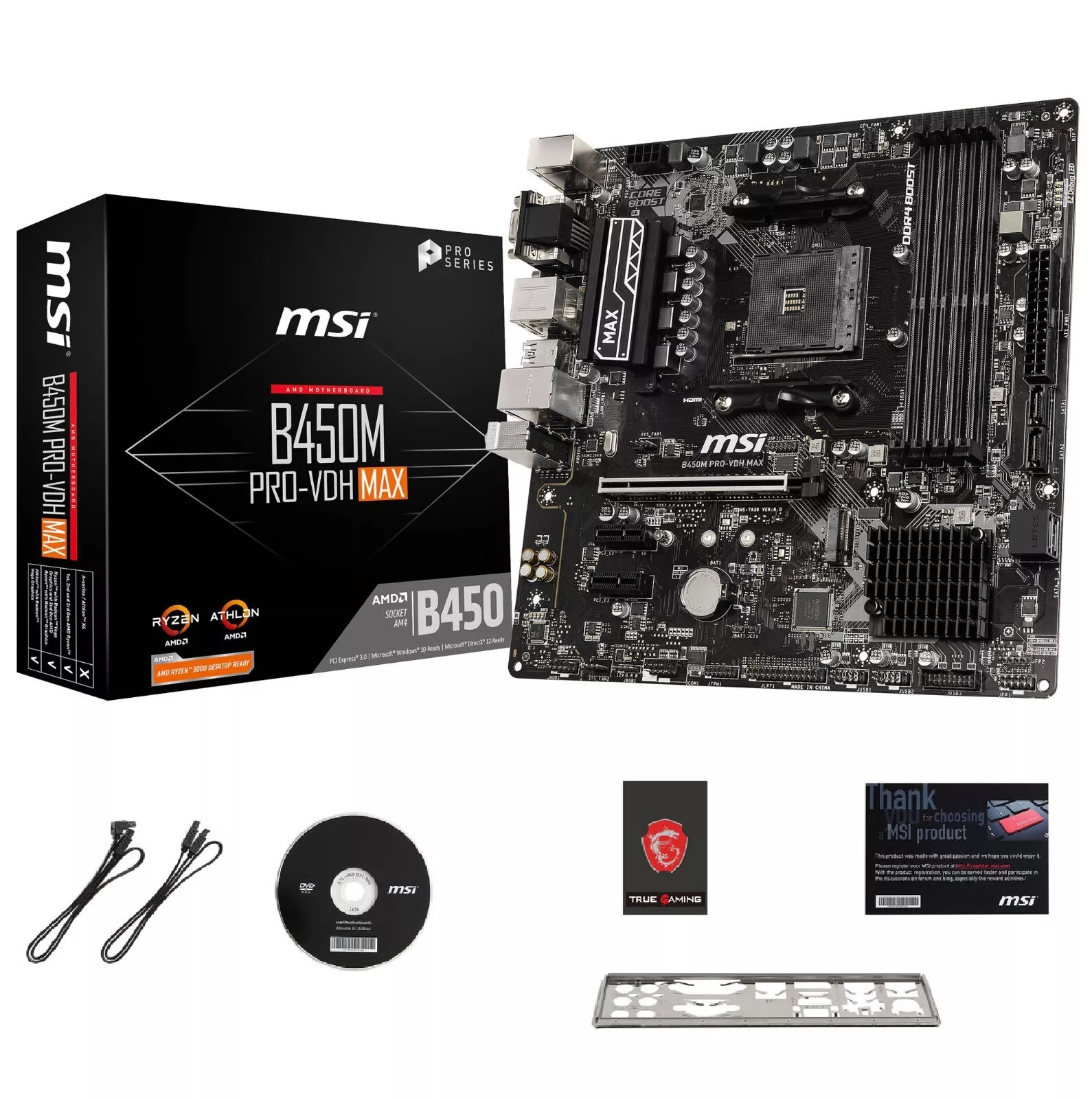

Motherboard MSI AMD B450M PRO-VDH Max AM4 Micro ATX DDR4-SDRAM

• Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 3466+(OC) MHz

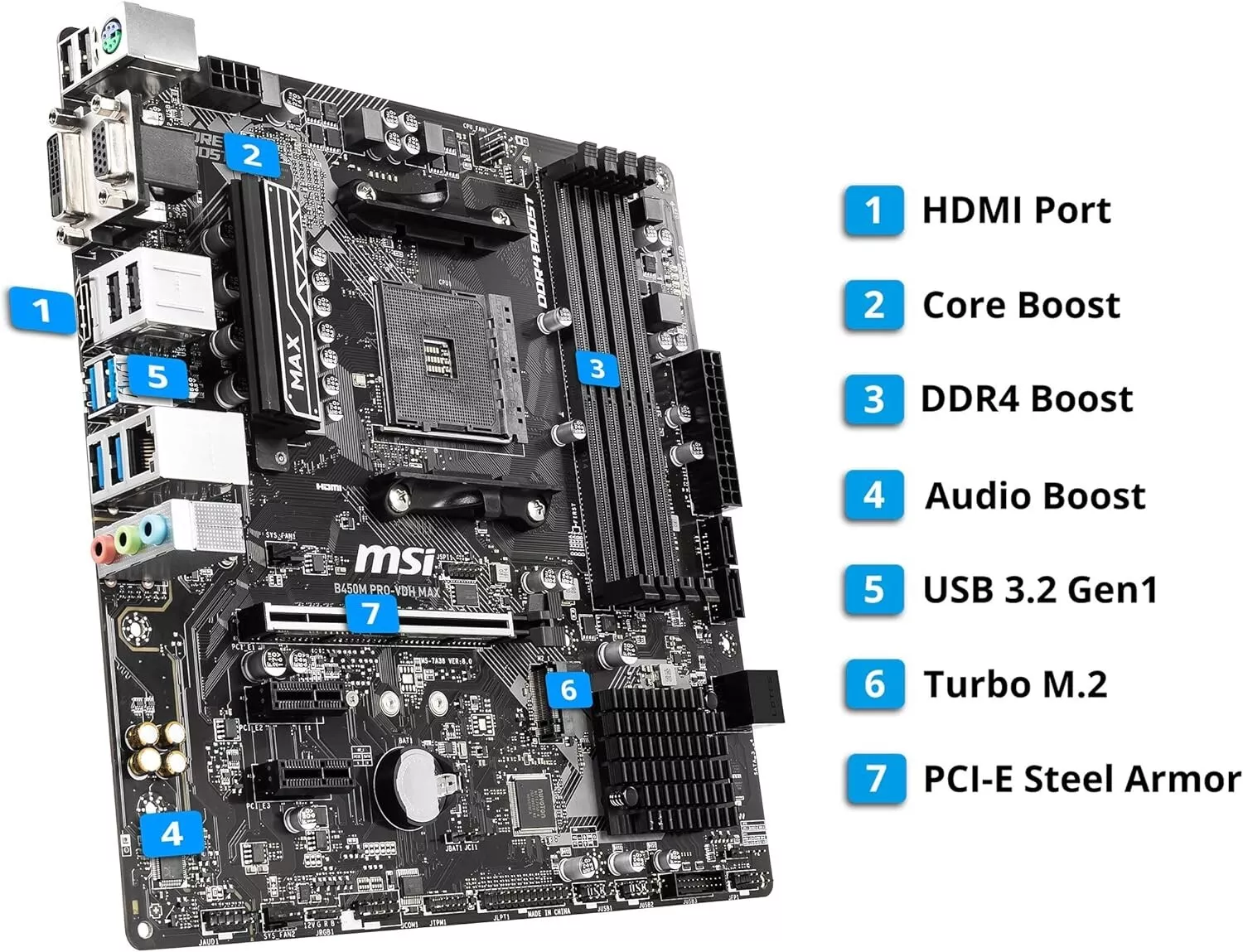

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

• Audio Boost: Reward your ears with studio grade sound quality.

• EZ Debug LED: Easiest way to troubleshoot

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

• PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

PROCESSOR

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4

CHIPSET : AMD B450 Chipset

MEMORY

4 x DDR4 memory slots, support up to 128GB ComboPI 1.0.0.3-based and above BIOS are required.

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

For AMD Ryzen Gen3 (R5/R7/R9)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)

For AMD Other Processors

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Supports Dual Channel mode

Supports ECC UDIMM memory (non-ECC mode)

Support non-ECC UDIMM memory

SLOTS :

1 x PCIe 3.0 x16 slot

1st, 2nd and 3rd Gen AMD Ryzen support x16 mode

Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode

Athlon with Radeon Vega Graphics support x4 mode

2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS :

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz

Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors

Maximum shared memory of 2048 MB

Graphics specifications may vary depending on the CPU installed.

STORAGE :

AMD B450 Chipset

4 x SATA 6Gb/s ports

Supports RAID 0, RAID1 and RAID 10

1 x M.2 slot (Key M)

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s

Supports 2242/ 2260 /2280 storage devices

USB :

AMD B450 Chipset

2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector

8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

AMD processor

4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN :

1 x Realtek 8111H Gigabit LAN controller

INTERNAL CONNECTORS :

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x 4-pin CPU fan connector

2 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x Parallel port connector

1 x RGB LED strip connector

1 x Clear CMOS jumper

BACK PANEL PORTS :

PS/2

VGA Port

USB 2.0 Port

USB 3.2 Gen1

LAN Port

HD Audio Connectors

DVI-D Port

HDMI Port

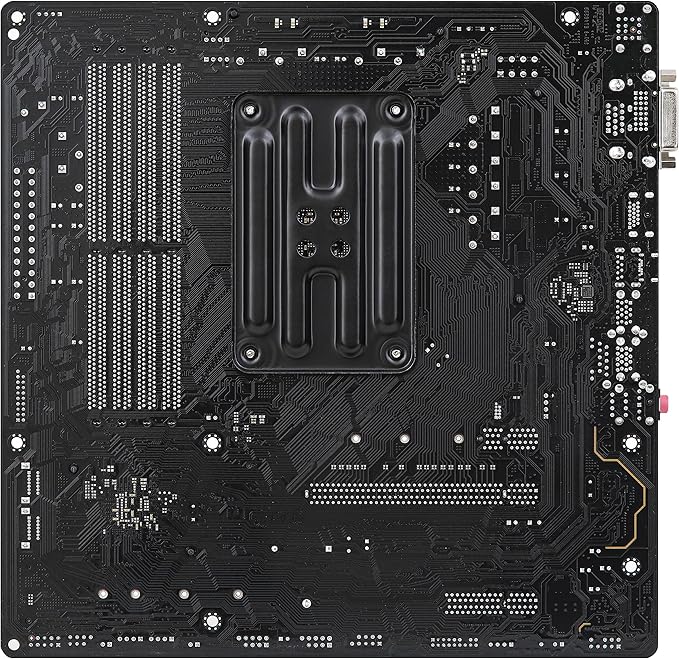

DIMENSIONS :

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

m-ATX Form Factor

MOUNTING : 8 mounting holes

OPERATING SYSTEM

Support for Windows 10 64-bit

Support for Windows 7 64-bit
To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
