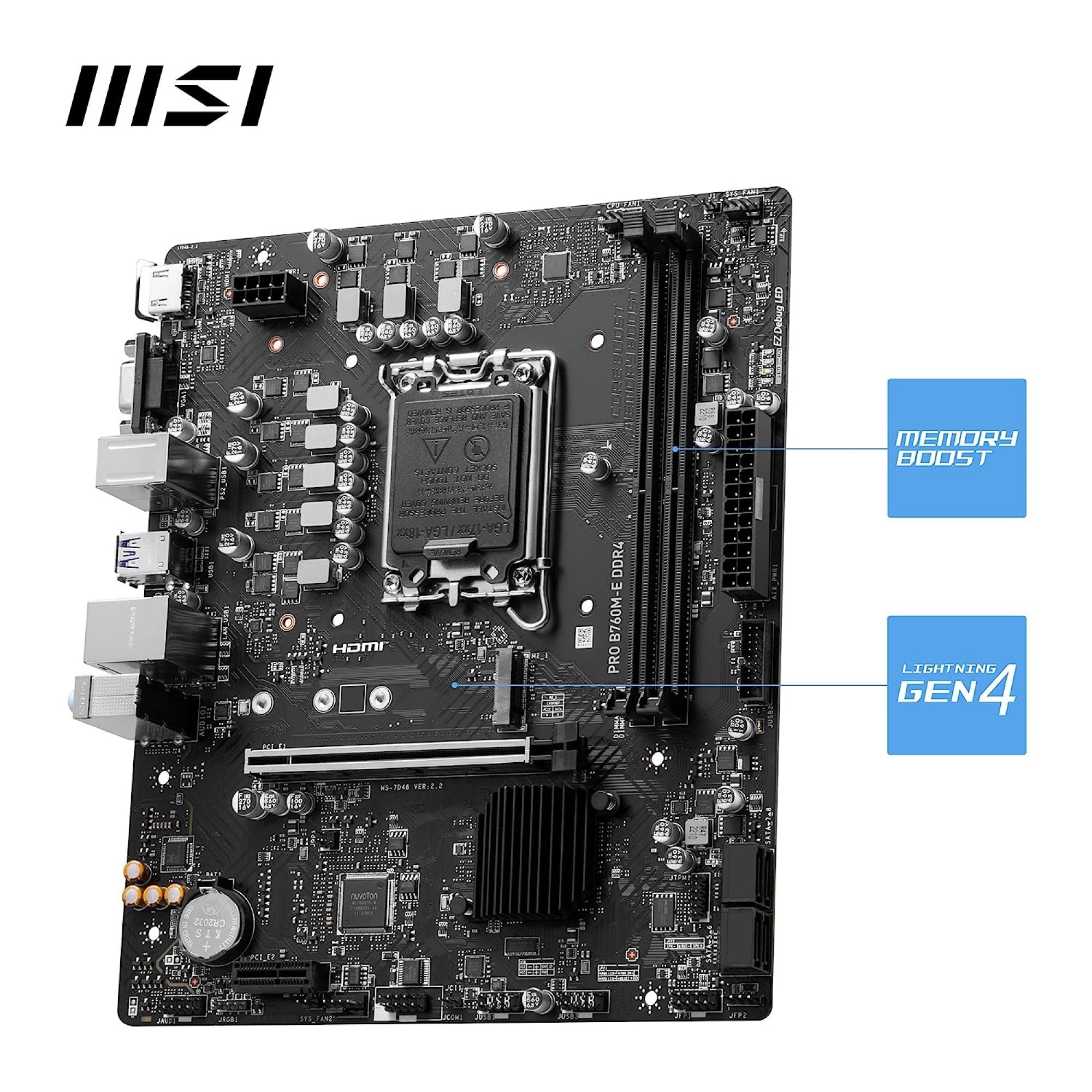

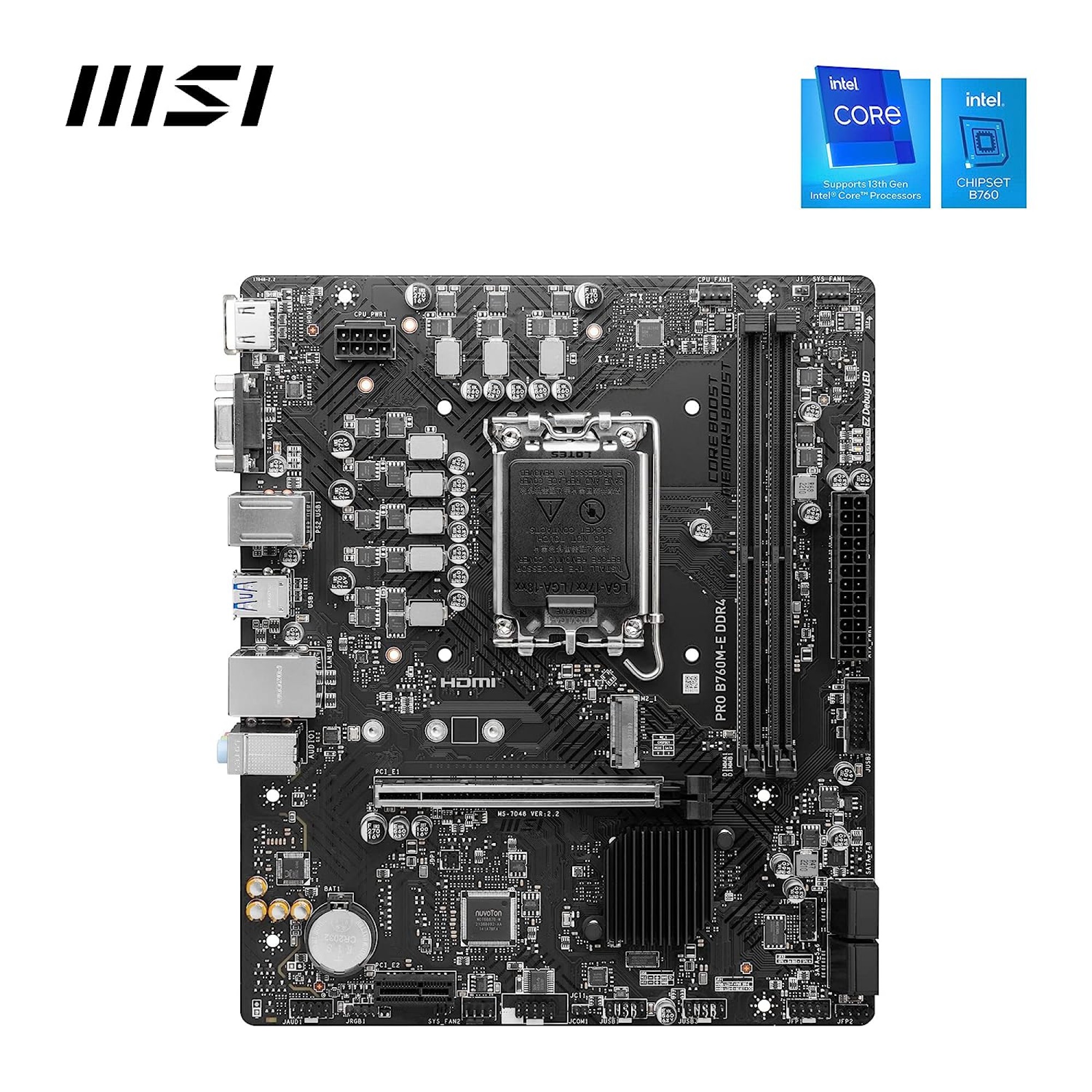

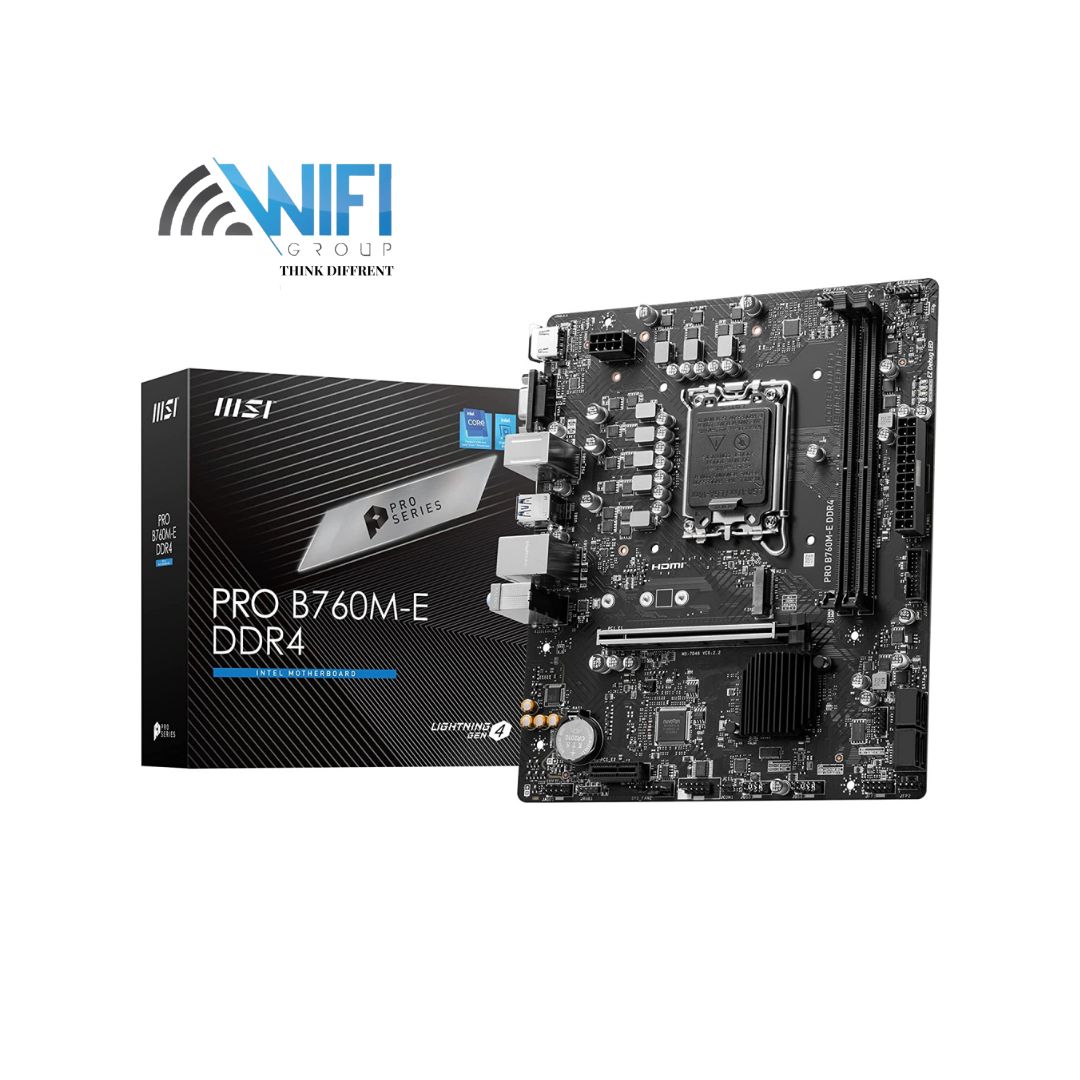

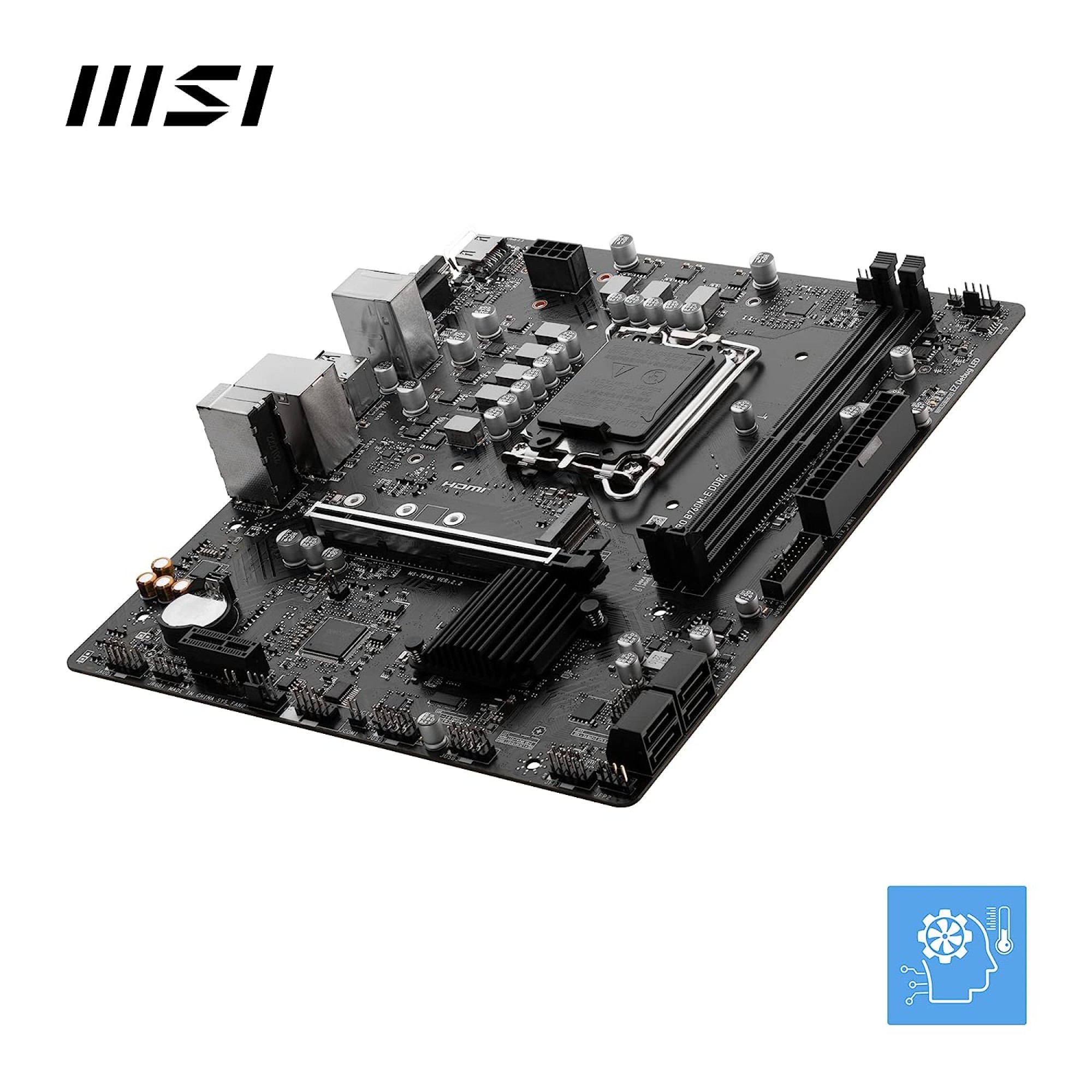

MSI Pro B760M-E DDR4
MSI PRO B760M-E Motherboard LGA 1700 DDR4
E£4600.00
Brand | MSI |
|---|---|
Model | PRO B760M-E DDR4 |
Supported CPU | |
CPU Socket Type | LGA 1700 |
|---|---|
CPU Type | Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
Chipsets | |
Chipset | Intel B760 |
|---|
Memory | |
Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
Memory Standard | DDR4 3200 |
Maximum Memory Supported | 64GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
PCI Express x16 | 1 x PCI Express x16 |
PCI Express x1 | 1 x PCI Express x1 |
Storage Devices | |
SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
M.2 | 1 x Key M (PCH PCIe/SATA) |
Onboard Audio | |
Audio Chipset | Realtek ALC897 |
|---|---|
Audio Channels | 8 Channels |
Rear Panel Ports | |
Back I/O Ports | 1 x D-Sub / 1 x HDMI / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 |
|---|
Physical Spec | |
Form Factor | Micro ATX |
|---|
