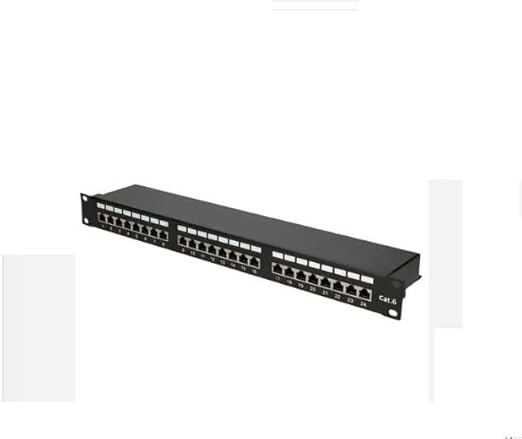

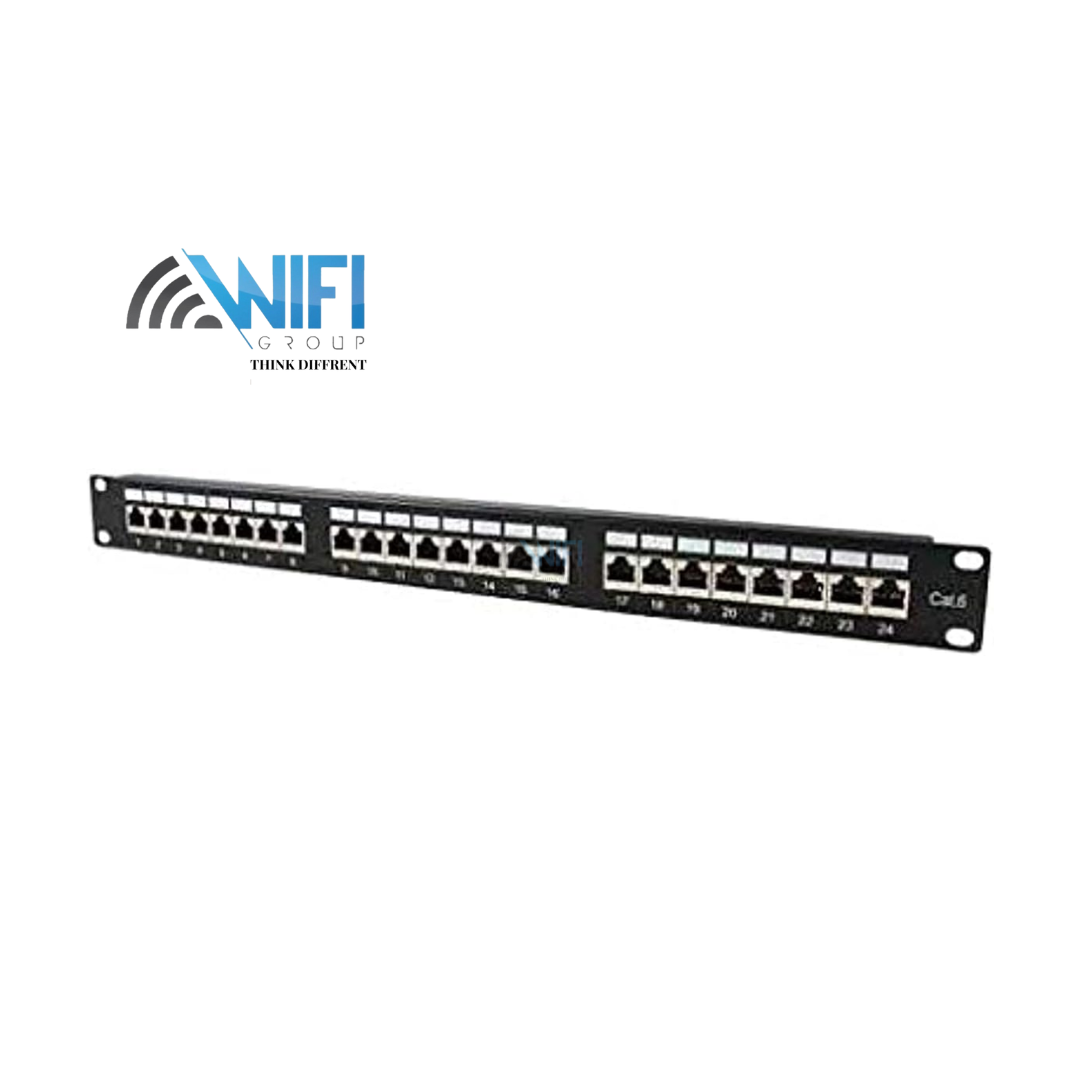

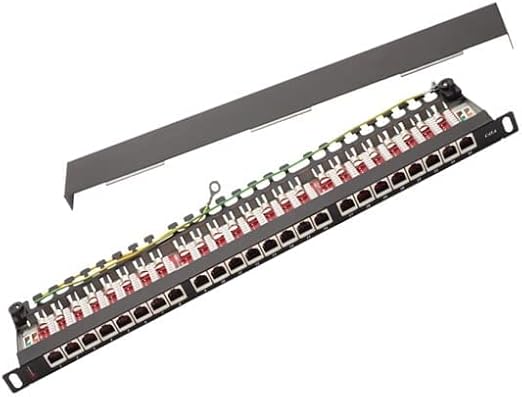

Premium Line 24 Port Cat6 Patch Panel
Premium Line 24 Port Cat6 Patch Panel
E£2173.00
Jack | Phosphor bronze, 50 inch gold plating over nickel in contact area |
IDC | 100 inch nickel plated over phosphor bronze |
Shielded Cover | 50-60 inch nickel plated over phosphor bronze |
ELECTRICAL CHARACTERISTICS | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10M Min. |
Contact Resistance | 2m per contact |
Temperature Range | -10C to 60C |
Humidity | 10%~90%; non condensing |
Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools
The main metal frame are made of SECC material, with the thickness over 1.0mm
The finished product is available in 24 ports (1U)
Designed to perfection
