| العلامة التجارية |
ASUS |
| السلسلة |
PRIME |
| الموديل |
A520M-R |
| الشريحة |
AMD A520 |
| المقبس |
AMD AM4 |
| نوع الذاكرة |
DDR4 |
| دعم الذاكرة |
2 x DIMM, Max. 64GB, DDR4 2133-5100 MHz (OC), Un-buffered Memory, Dual Channel Memory Architecture, ECC support varies by CPU |
| منافذ التوسعة |
1 x PCIe 3.0 x16 slot (x16 mode); 1 x PCIe 3.0 x1 slot via chipset |
| التخزين |
1 x M.2 slot (Key M, PCIe 3.0 x4 & SATA modes, 2242/2260/2280); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 supports PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| كرت الشبكة |
1 x Realtek 1Gb Ethernet |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors |
| منافذ USB |
Rear (6 total): 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A. Front (6 total): 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |
4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A, 1 x HDMI port, 1 x Realtek 1Gb LAN port, 3 x Audio jacks, 1 x PS/2 keyboard port, 1 x PS/2 mouse port |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power, 1 x 4-pin +12V, 1 x M.2 slot, 4 x SATA 6Gb/s ports, 1 x USB 5Gbps header, 2 x USB 2.0 headers, Clear CMOS header, COM Port header, Front Panel Audio header (F_AUDIO), S/PDIF Out header, Speaker header, SPI TPM header, System Panel header |
| البايوس |
128 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), Aluminum heatsink design |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |

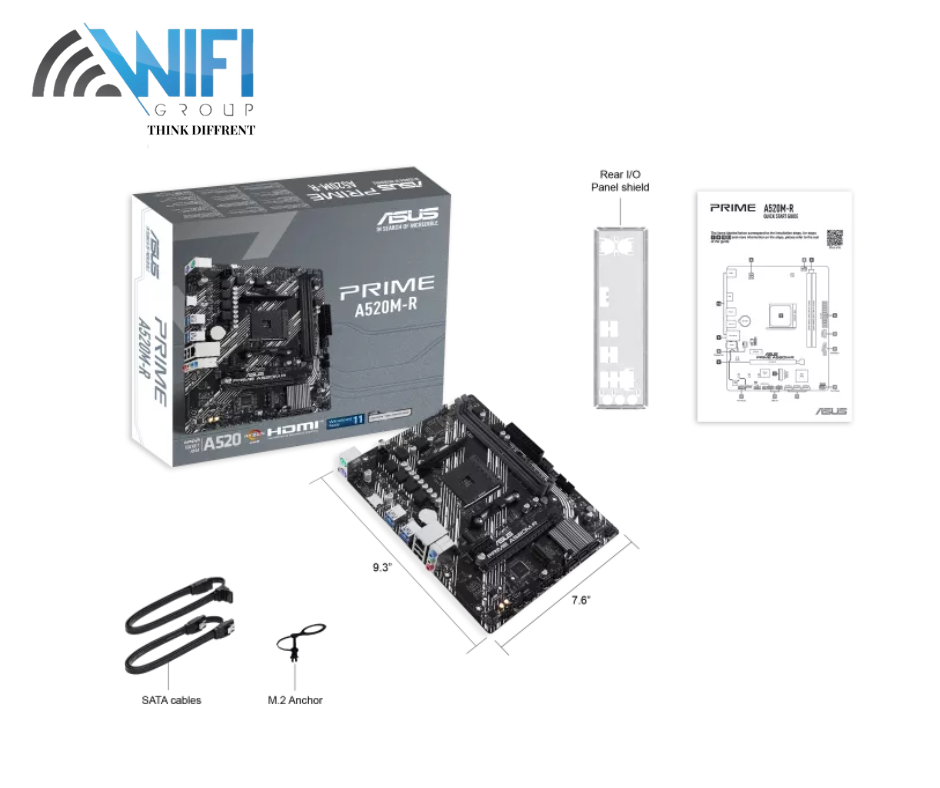

| الملحقات |
2 x SATA 6Gb/s cables, 1 x I/O shield, 1 x M.2 anchor, 1 x Quick start guide |
| الأبعاد |
micro-ATX Form Factor, 23.6 x 19.3 cm (9.3 x 7.6 inch) |
