| العلامة التجارية |
ASUS |
| السلسلة |
PRIME |
| الموديل |
B760-PLUS |
| الشريحة |
Intel B760 |
| المقبس |
Intel LGA1700 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 192GB, DDR5 4800-7200+ MHz (OC), Dual Channel Memory Architecture, Supports Intel XMP, OptiMem II, Non-ECC Un-buffered Memory |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU); 1 x PCIe 4.0 x16 slot (chipset, x4 mode); 2 x PCIe 3.0 x1 slots |
| التخزين |
3 x M.2 slots (Key M, PCIe 4.0 x4/x4/x2 depending on slot, up to 22110 on M.2_2); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Realtek 2.5Gb Ethernet |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Shielding, Premium audio capacitors |
| منافذ USB |
Rear (6 total): 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A. Front (7 total): 1 x USB 3.2 Gen 1 Type-C connector, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |
1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x DisplayPort, 1 x VGA, 1 x HDMI, 1 x vertical M.2 slot (Key E, Wi-Fi module sold separately), 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 3 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 Type-C connector, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), S/PDIF Out header, SPI TPM header, System Panel header with chassis intrude, 1 x Thunderbolt (USB4) header |
| البايوس |
128 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), M.2 heatsink, VRM heatsink design, ProCool, Aura Sync RGB header |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |

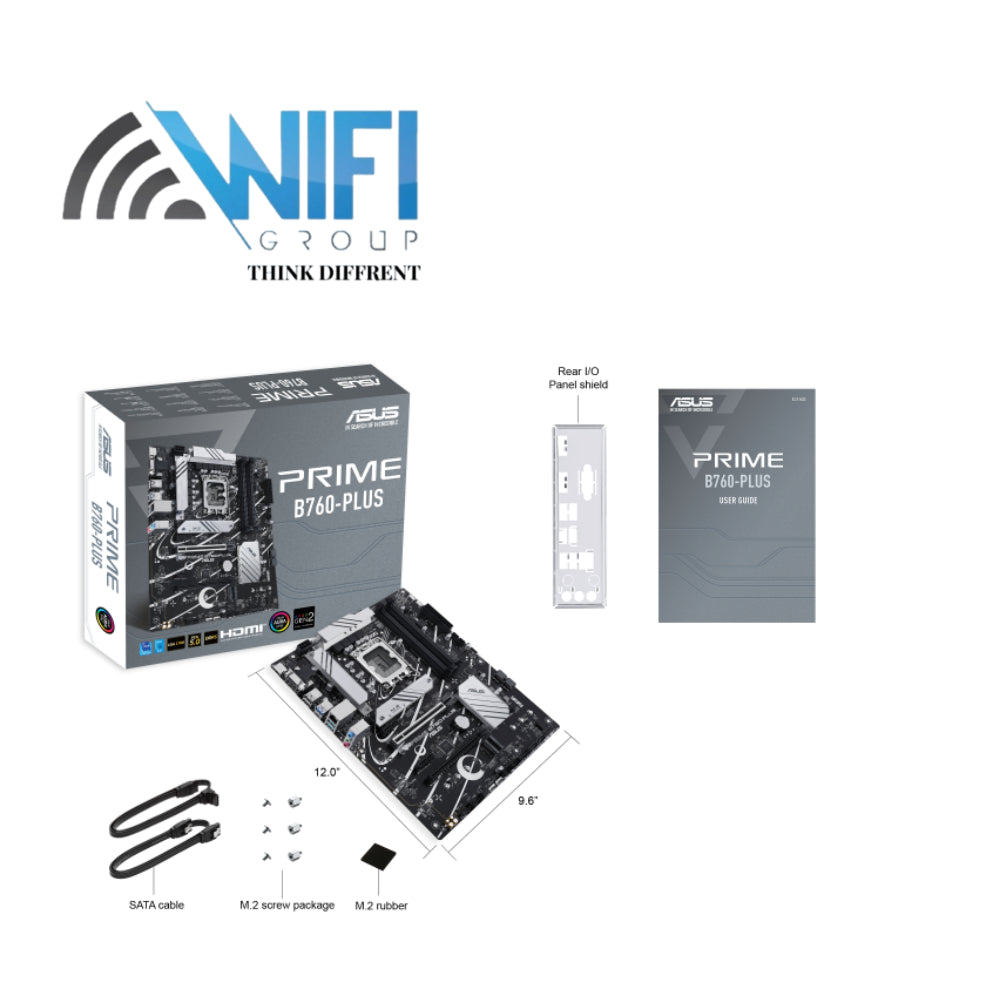

2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, 1 x User guide |
| الأبعاد |
ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch) |
