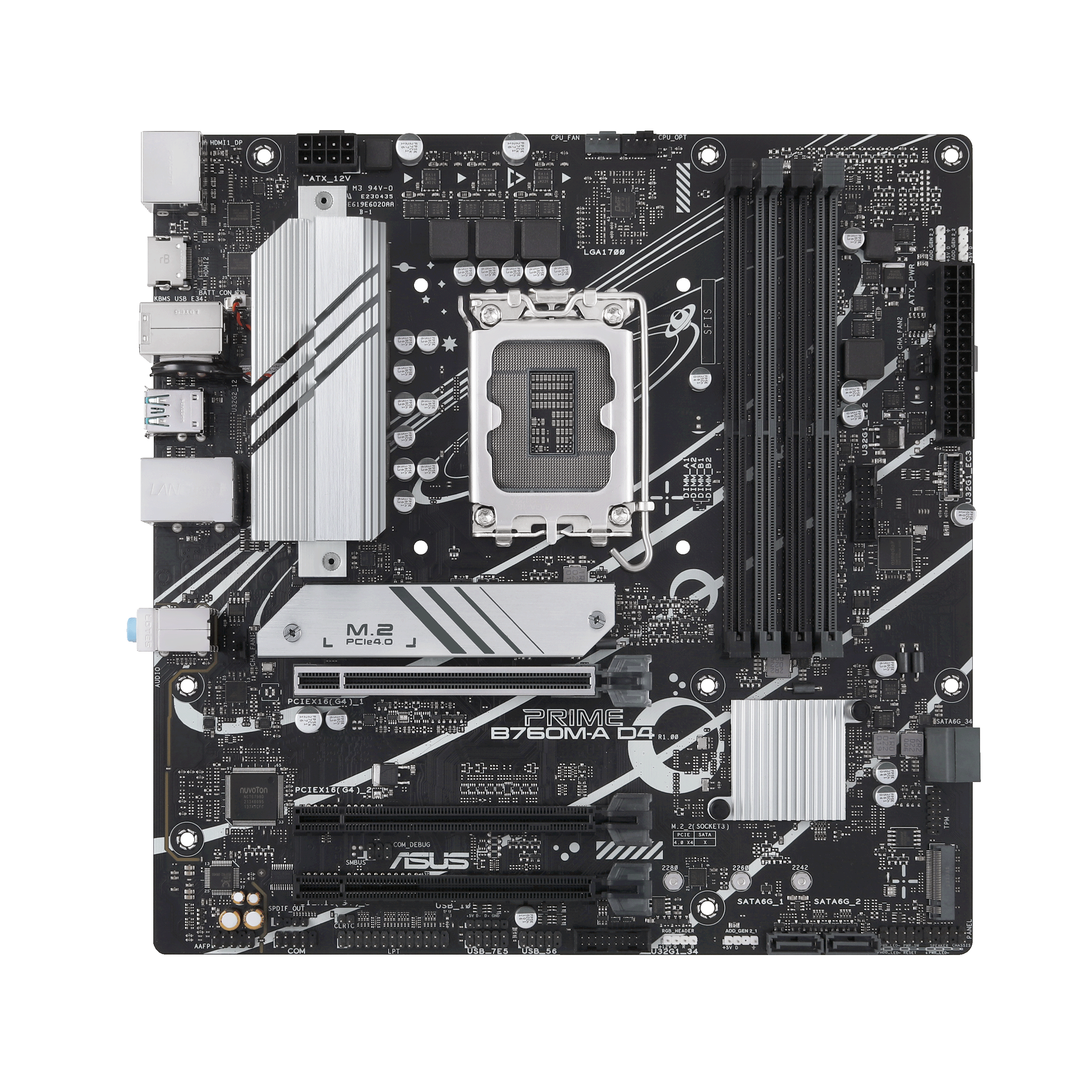

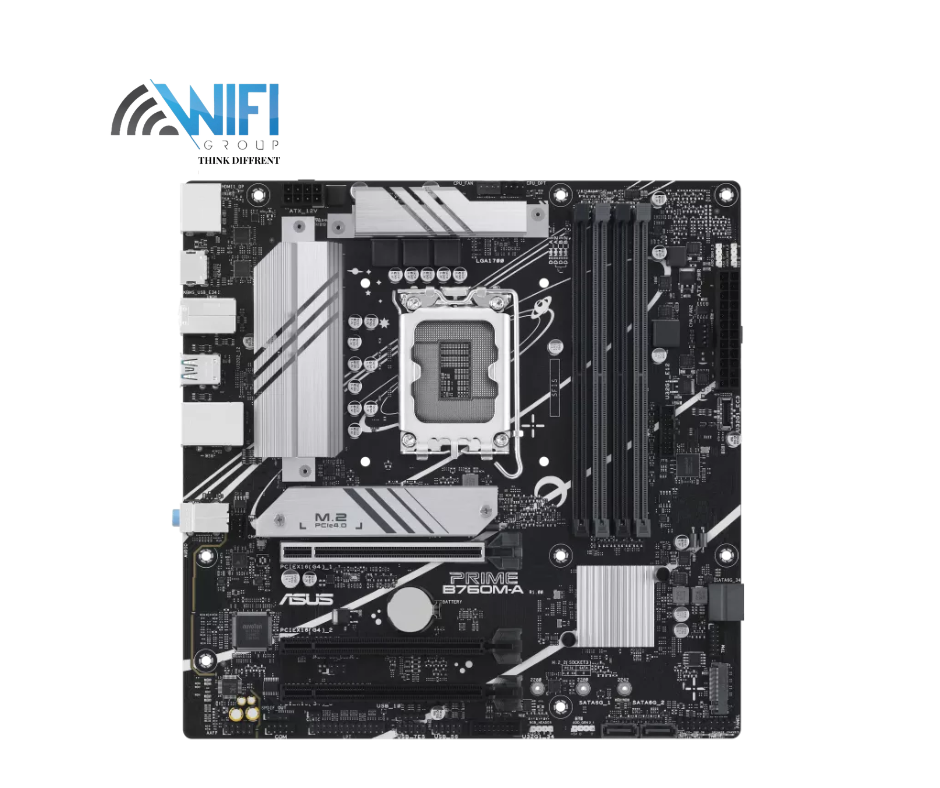

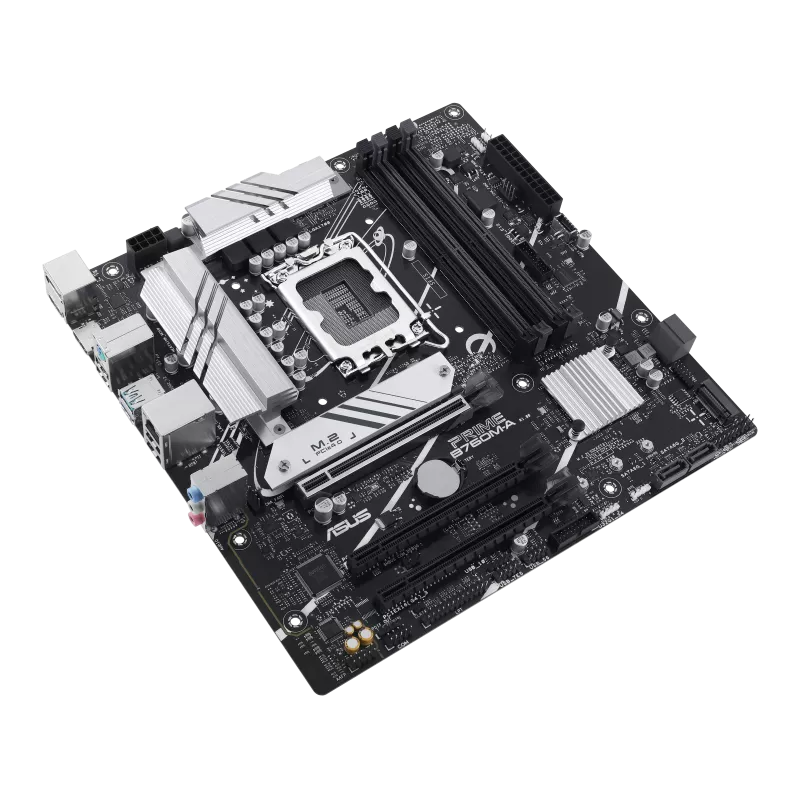

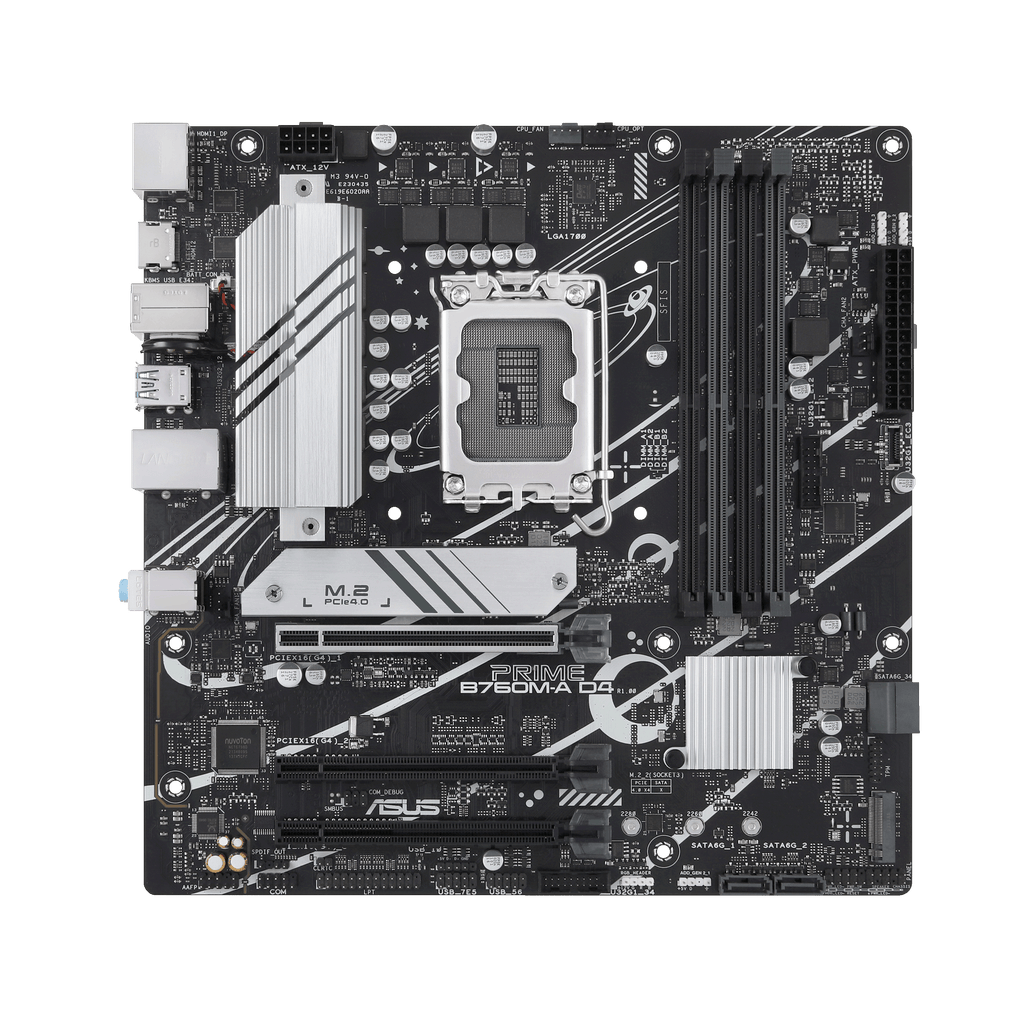

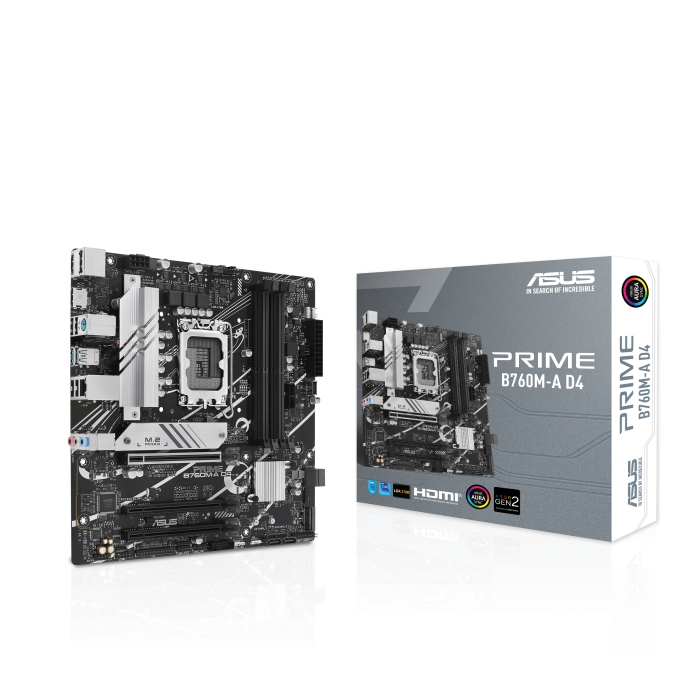

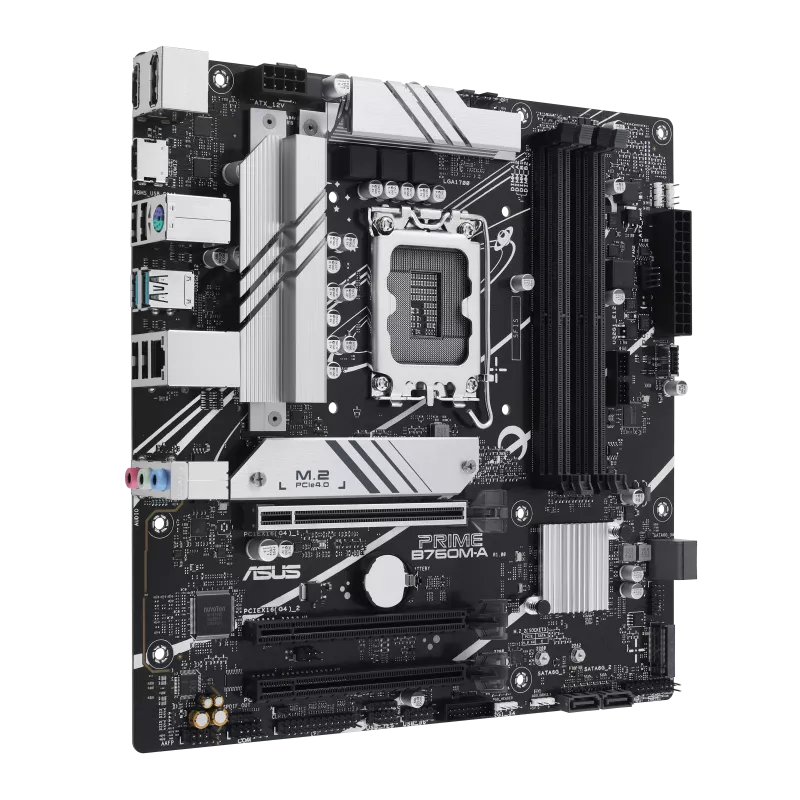

Name: Asus Prime B760M-A Intel DDR4
Brand: ASUS
Price: 5650.00 EGP
Availability: OutOfStock

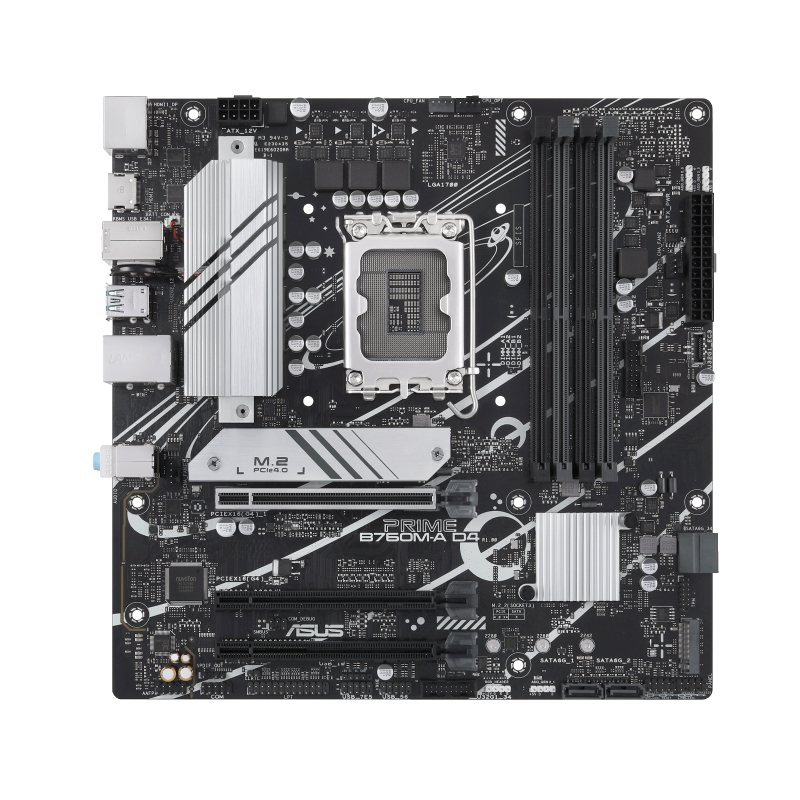

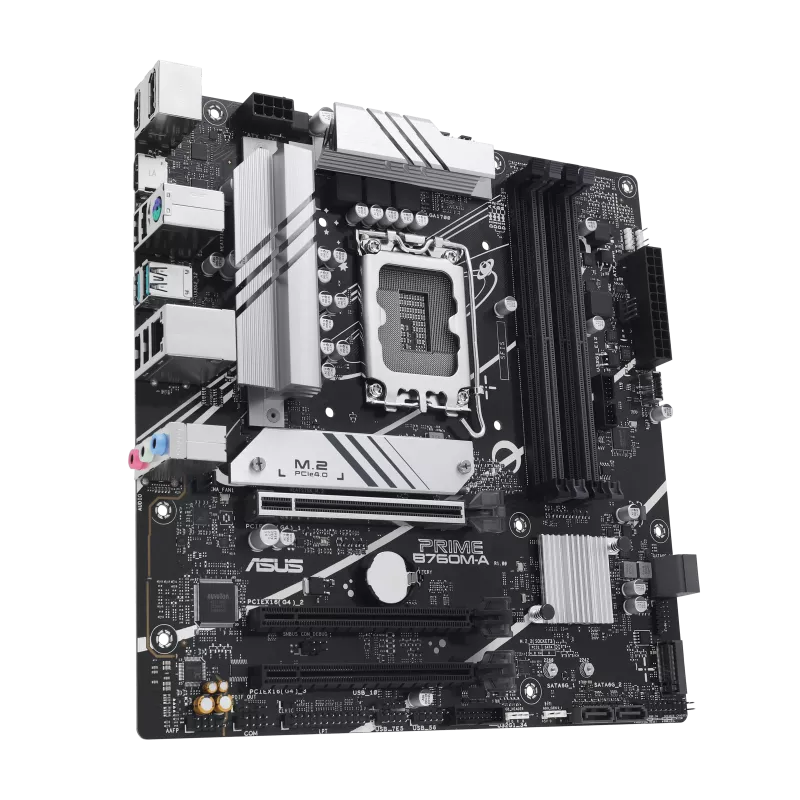

Asus Prime B760M-A Intel DDR4

LE 5,650.00

Asus Prime B760M-A Intel DDR4

LE 5,650.00

✔ ضمان حتى 3 سنوات✔ منتجات أصلية✔ تقسيط متاح

الوصف الكامل

Quick Summary: Micro-ATX LGA1700 motherboard on the Intel B760 chipset with DDR4 memory support for 12th, 13th, and 14th Gen Intel Core processors.

Key Features

Intel LGA1700 socket, B760 chipset
Supports 12th, 13th, and 14th Gen Intel Core processors
Realtek 2.5Gb Ethernet
PCIe 4.0 with dual M.2 storage
mATX form factor

Technical Specifications

Socket	Intel LGA1700
Chipset	Intel B760
Supported Processors	12th, 13th, and 14th Gen Intel Core
Memory	4 x DIMM, DDR4, up to 128GB, 2133–5333 MHz (OC), dual-channel, XMP support
PCIe Slots	3 total — 1x PCIe 4.0 x16 (CPU), 2x PCIe 4.0 x16 (x4/x1 mode, chipset)
M.2 Slots	2 slots, PCIe 4.0 x4, 2242/2260/2280
SATA	4 x SATA 6Gb/s
LAN	1 x Realtek 2.5Gb Ethernet
Audio	Realtek 7.1 Surround Sound HD Audio, 24-bit/192kHz
Rear I/O	2x USB 3.2 Gen 2 Type-A, 4x USB 2.0 Type-A, DisplayPort, 2x HDMI, Ethernet, 3x audio jacks, PS/2 combo
Form Factor	mATX (9.6" x 9.6")

Compatibility

Supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket. DDR4 memory only.

المواصفات الفنية

السلسلة	PRIME
الموديل	B760M-A D4
الشريحة	Intel B760
المقبس	Intel LGA1700
نوع الذاكرة	DDR4
دعم الذاكرة	4 x DIMM, Max. 128GB, DDR4 2133-5333 MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP, OptiMem II
منافذ التوسعة	1 x PCIe 4.0 x16 slot (CPU); 1 x PCIe 4.0 x16 slot via chipset (x4 mode); 1 x PCIe 4.0 x16 slot via chipset (x1 mode)
التخزين	2 x M.2 slots (Key M, PCIe 4.0 x4, 2242/2260/2280); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors
منافذ USB	Rear (6 total): 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A. Front (10 total): 2 x USB 3.2 Gen 1 headers (4 ports), 1 x USB 3.2 Gen 1 Type-C connector, 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port)

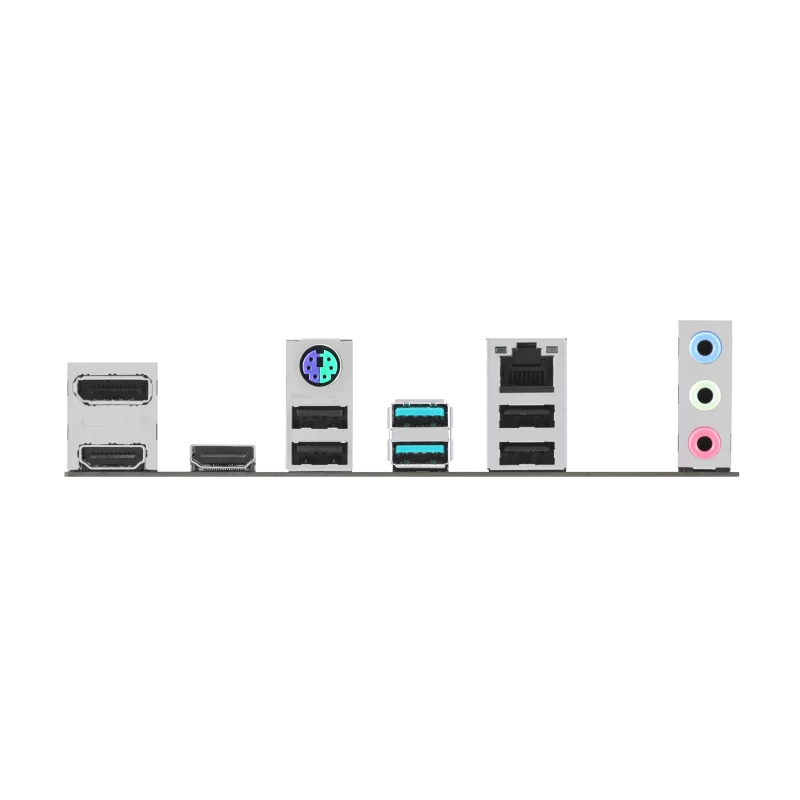

لوحة التوصيلات الخلفية	2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 2 x HDMI ports, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x PS/2 combo port
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 2 x USB 3.2 Gen 1 headers, 1 x USB 3.2 Gen 1 Type-C connector, 2 x USB 2.0 headers, 1 x USB 2.0 header, 3 x Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), LPT header, S/PDIF Out header, SPI TPM header, System Panel header with chassis intrude
البايوس	128 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), M.2 & VRM heatsinks, ProCool, Aura Sync RGB header
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit

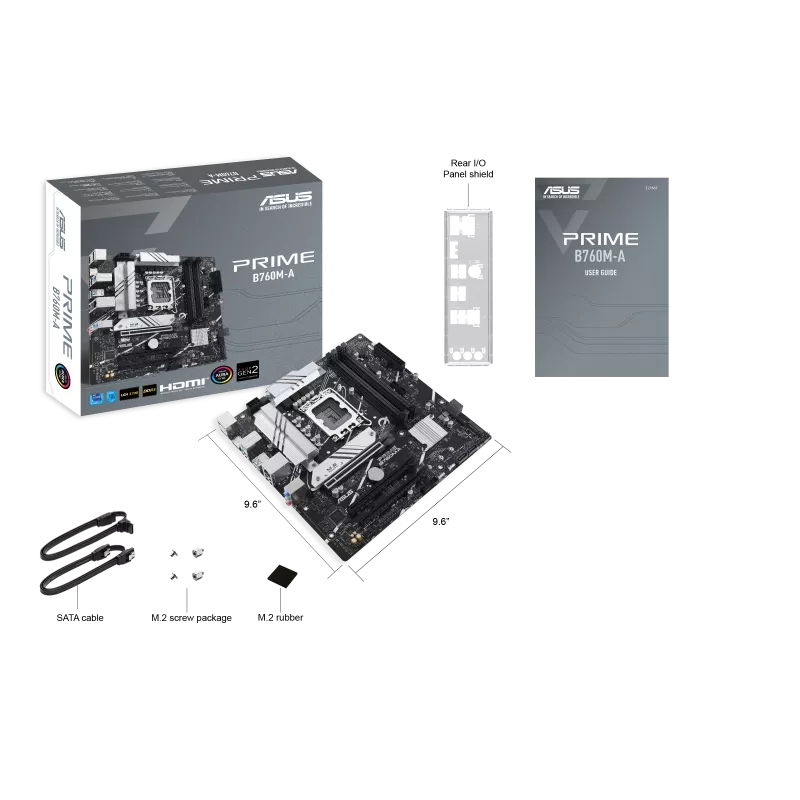

الملحقات	2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x User guide
الأبعاد	mATX Form Factor, 24.4 x 24.4 cm (9.6 x 9.6 inch)
