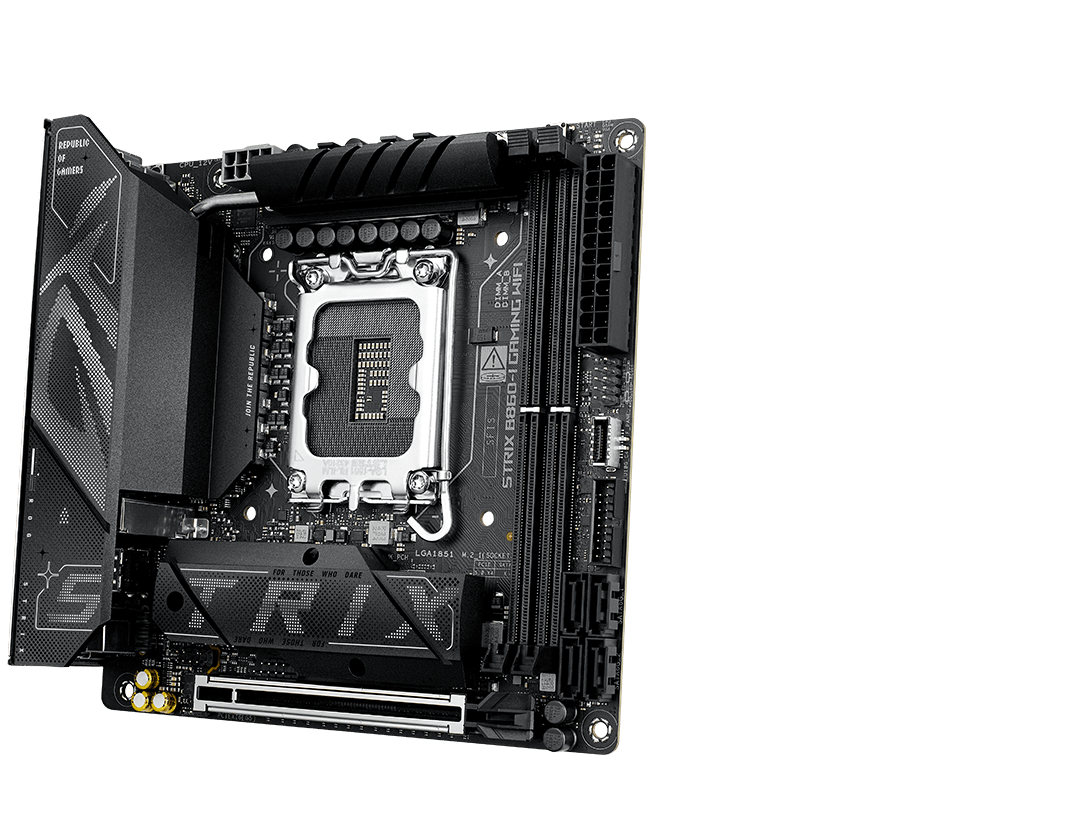

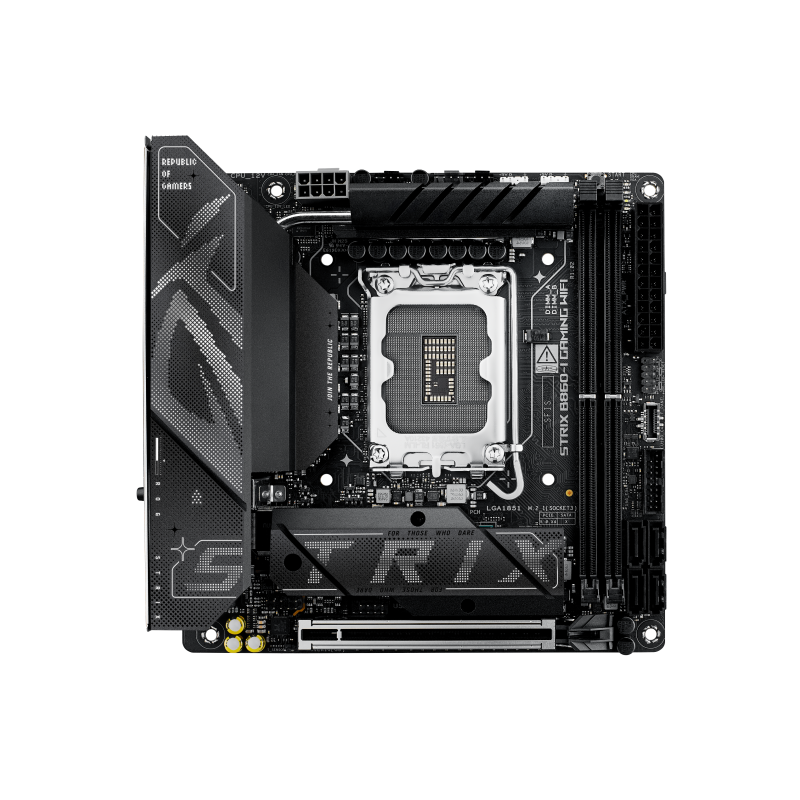

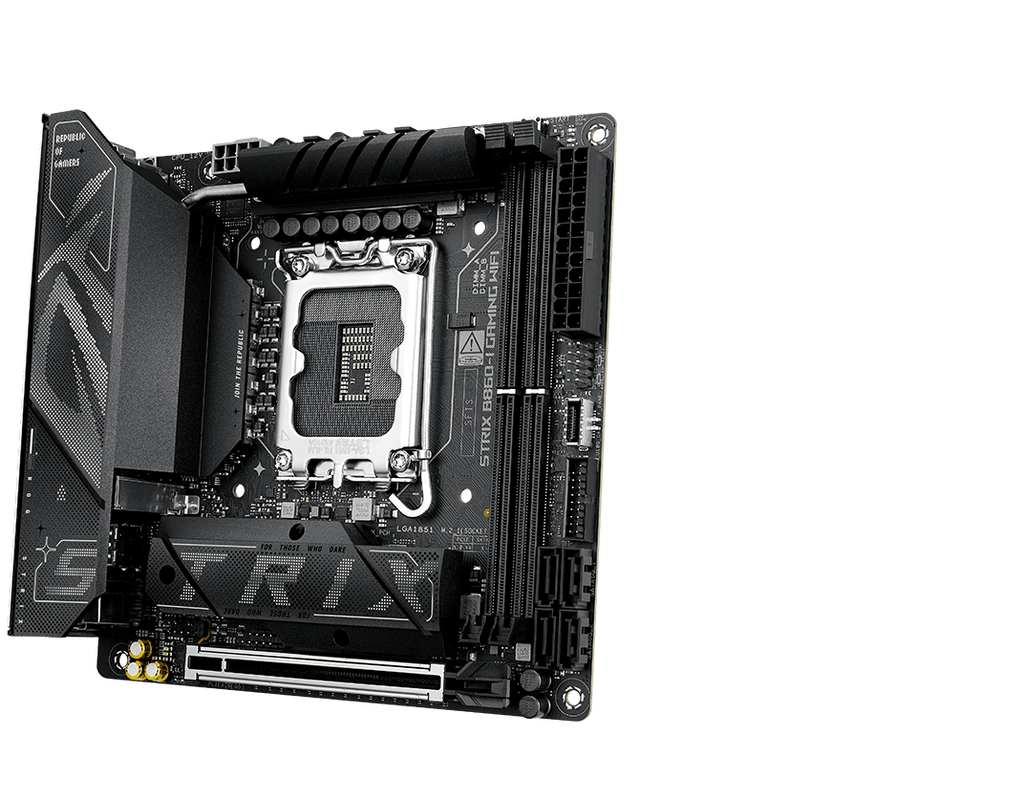

Quick Summary: Mini-ITX LGA1700 motherboard on the Intel B860 chipset, built for Intel Core Ultra Series 2 processors with DDR5 memory, PCIe 5.0 storage, and Thunderbolt 4.
Key Features
- Intel LGA1700 socket, B860 chipset
- Supports Intel Core Ultra Processors (Series 2)
- Wi-Fi 7 (802.11be) with Bluetooth 5.4
- Thunderbolt 4 rear I/O
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 slot
Technical Specifications
| Socket |
Intel LGA1700 |
| Chipset |
Intel B860 |
| Supported Processors |
Intel Core Ultra Processors (Series 2) |
| Memory |
2 x DIMM, DDR5, up to 128GB, up to 9066+ MT/s (OC) |
| PCIe Slots |
1 x PCIe 5.0 x16 |
| M.2 Slots |
2 total — M.2_1 PCIe 5.0 x4 (2260/2280), M.2_2 PCIe 4.0 x4 (2242/2260/2280) |
| SATA |
4 x SATA 6Gb/s |
| LAN |
1 x Intel 2.5Gb Ethernet |
| Wi-Fi |
Wi-Fi 7 (802.11be) 2x2, Bluetooth 5.4 |
| Audio |
Realtek ALC1220P 7.1 Surround Sound HD Audio |
| Rear I/O |
Thunderbolt 4, USB 20Gbps Type-C, USB 10Gbps Type-A, 3x USB 5Gbps Type-A, 2x USB 2.0, DisplayPort, HDMI, Ethernet, audio jacks, optical S/PDIF out |
| Form Factor |
Mini-ITX (6.7" x 6.7") |
Compatibility
Supports Intel Core Ultra Series 2 processors on the LGA1700 socket. DDR5 memory only (not backward compatible with DDR4).
