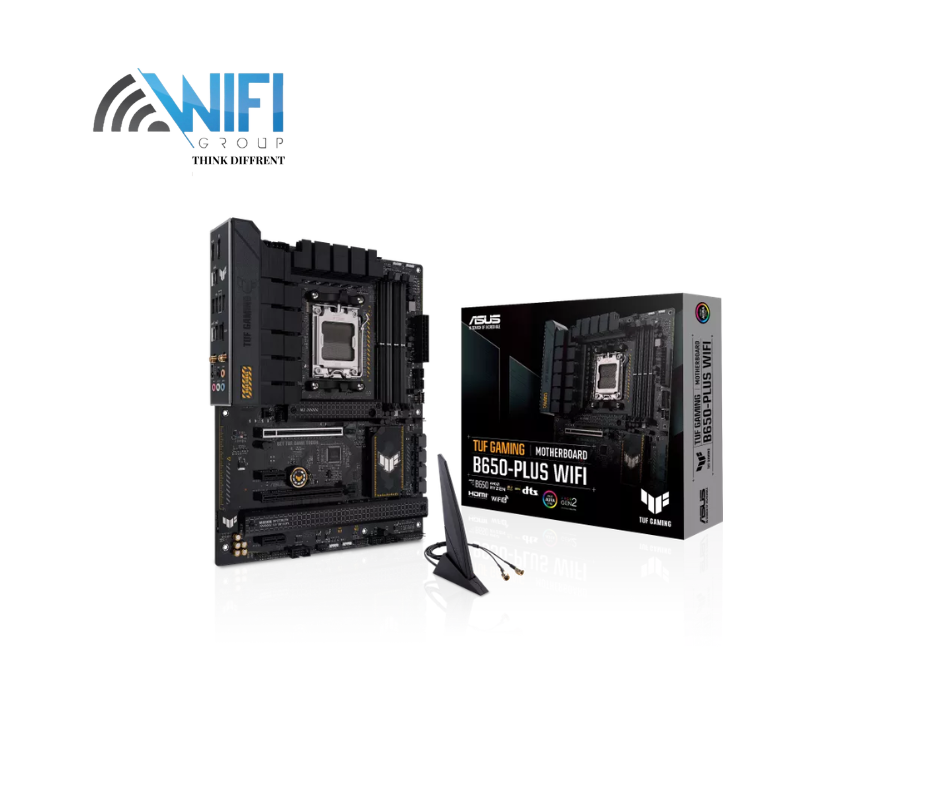

Name: ASUS TUF Gaming B650-PLUS WiFi AMD DDR5
Brand: ASUS
Price: 8500.00 EGP
Availability: OutOfStock

ملخص سريع

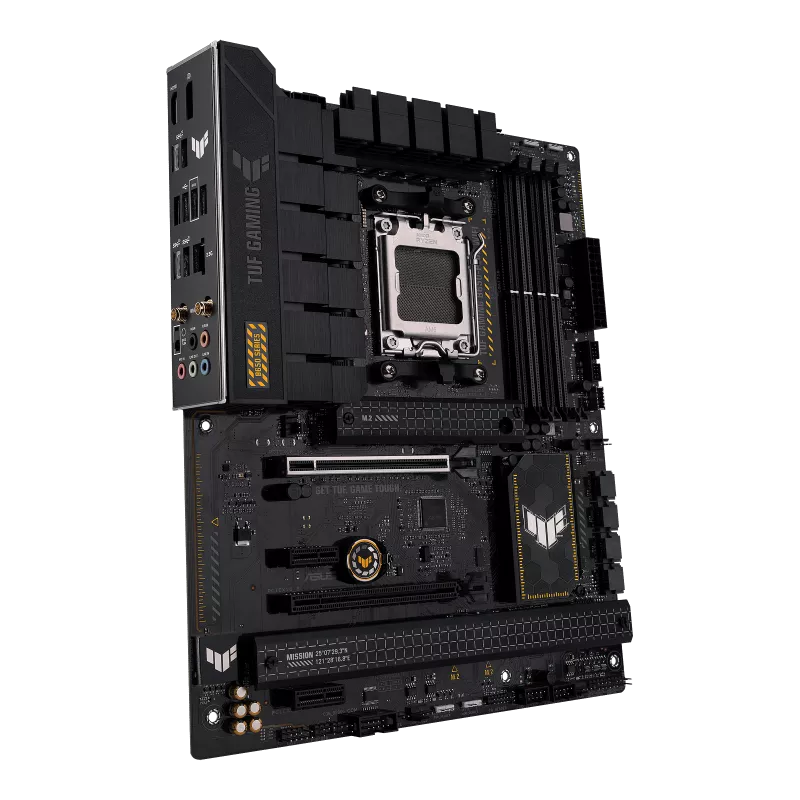

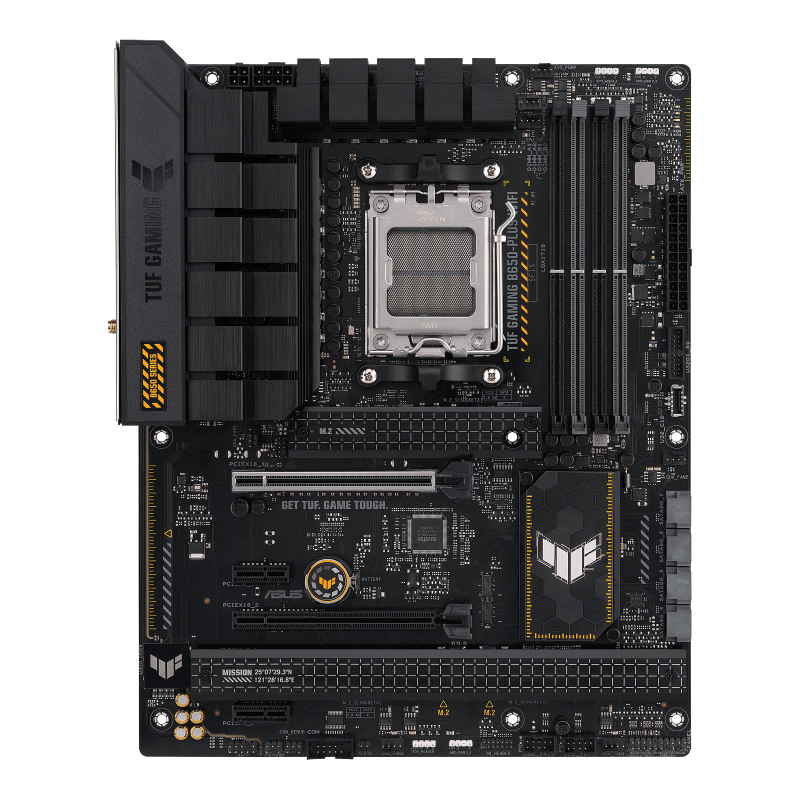

لوحة ASUS TUF Gaming B650-PLUS WiFi بمنفذ AM5.

الوصف الكامل

Quick Summary: ASUS TUF Gaming B650-PLUS WiFi ATX motherboard for AMD Socket AM5, with PCIe 5.0 M.2, 2.5Gb LAN, and Wi-Fi.

Key Features

AMD Socket AM5, B650 chipset
PCIe 5.0 M.2 (M.2_1), 3 total M.2 slots
Realtek 2.5Gb Ethernet + built-in Wi-Fi
TUF Protection: DIGI+ VRM, ESD Guards, SafeSlot Core+

Technical Specifications

Socket	AMD AM5
Chipset	AMD B650
Supported Processors	AMD Ryzen 9000/7000 series
M.2 Slots	3x (M.2_1 PCIe 5.0 x4, M.2_2/M.2_3 PCIe 4.0 x4)
SATA	4x SATA 6Gb/s
Rear USB	USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C
Display	DisplayPort, HDMI
Networking	Realtek 2.5Gb Ethernet, built-in Wi-Fi
Form Factor	ATX

Compatibility

Supports AMD Ryzen 9000 and 7000 series processors on the AM5 socket.

المواصفات الفنية

العلامة التجارية	ASUS
السلسلة	TUF Gaming
الموديل	B650-PLUS WIFI
الشريحة	AMD B650
المقبس	AMD AM5
نوع الذاكرة	DDR5
دعم الذاكرة	4 x DIMM, Max. 256GB, DDR5 4800-7600+ MHz (OC), Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem II, ECC and Non-ECC Un-buffered Memory
منافذ التوسعة	1 x PCIe 4.0/3.0 x16 slot (CPU, Ryzen 9000/7000, or x8/x4 mode for Ryzen 8000); 1 x PCIe 4.0/3.0 x16 slot via chipset (x4 mode); 2 x PCIe 4.0/3.0 x1 slots
التخزين	3 x M.2 slots (M.2_1 PCIe 5.0 x4 on Ryzen 9000/7000, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4 via chipset); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet with TUF LANGuard, plus Wi-Fi 6 (802.11ax) 2x2, Bluetooth 5.2
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, power pre-regulator, premium audio capacitors, de-pop circuit
منافذ USB	Rear (8 total): 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C), 4 x USB 2.0 Type-A. Front (7 total): 1 x USB 3.2 Gen 1 Type-C connector, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)

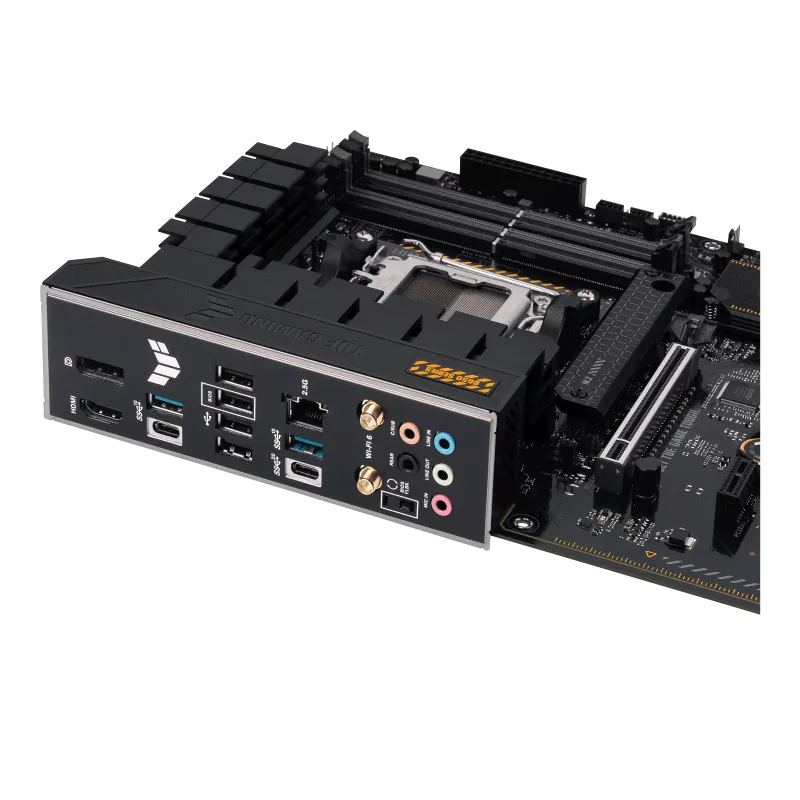

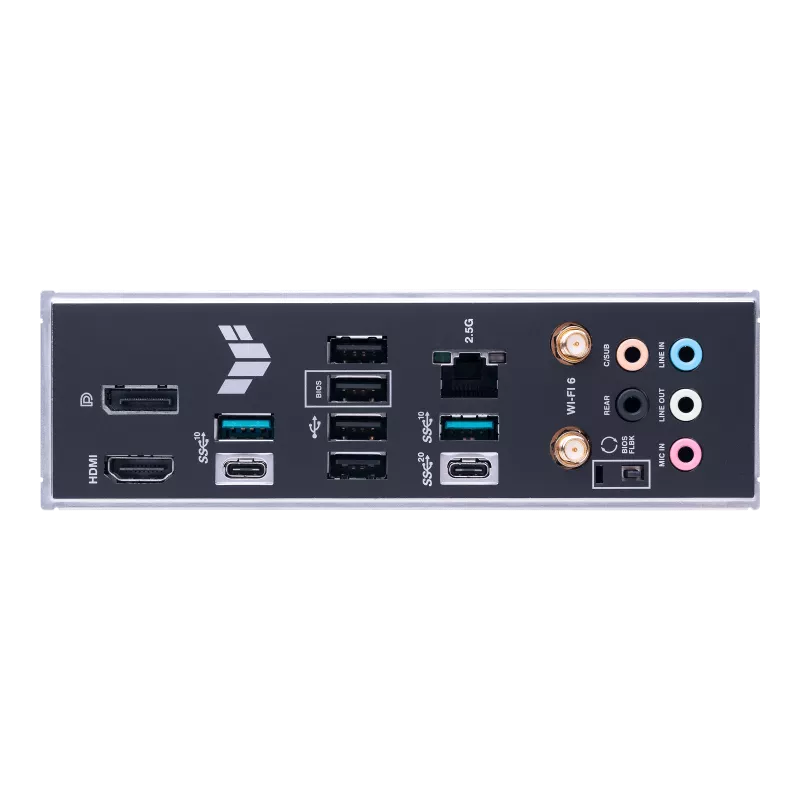

لوحة التوصيلات الخلفية	1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C), 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb LAN port, 5 x Audio jacks, 1 x BIOS FlashBack button
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 Type-C connector, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), System Panel header with chassis intrude, 1 x Thunderbolt (USB4) header
البايوس	256 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS TUF Protection (DIGI+ VRM with DrMOS, Enhanced DRAM Overcurrent Protection, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot), M.2 & VRM heatsinks, BIOS FlashBack, ProCool, pre-mounted I/O shield, SafeDIMM, Aura Sync RGB header
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit
الأبعاد	ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch)
