| السلسلة |
TUF Gaming |
| الموديل |

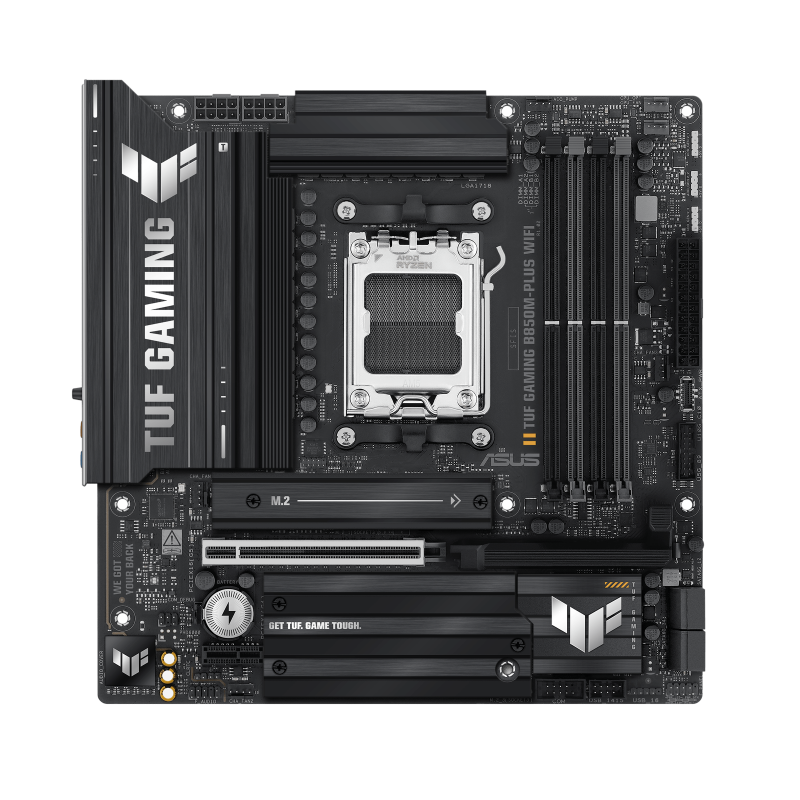

B850M-PLUS WIFI |
| الشريحة |
AMD B850 |
| المقبس |
AMD AM5 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 256GB, DDR5 up to 8000+ MT/s (OC), ECC and Non-ECC Un-buffered DIMM, Dual Channel, Supports AMD EXPO, ASUS Enhanced Memory Profile (AEMP) |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU, x16 mode, or x8/x4 mode for Ryzen 8000); 1 x PCIe 4.0 x1 slot via chipset |
| التخزين |
3 x M.2 slots (M.2_1 PCIe 5.0 x4 on Ryzen 9000/7000, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4 via chipset); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 support varies by CPU generation |
| كرت الشبكة |
1 x Realtek 2.5Gb Ethernet with TUF LANGuard, plus Wi-Fi 6E (802.11ax) 2x2, Bluetooth 5.3 |
| الصوت |
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC, up to 32-Bit/192kHz playback, 120dB SNR playback / 113dB SNR recording, internal amplifier, premium audio capacitors, audio cover |
| منافذ USB |
Rear (12 total): 1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A. Front (6 total): 1 x USB 10Gbps Type-C connector, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports) |
| لوحة التوصيلات الخلفية |
1 x USB 20Gbps Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 2.5Gb LAN port, 5 x Audio jacks, 1 x BIOS FlashBack button |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 2 x 8-pin +12V CPU, 3 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 10Gbps Type-C connector, 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Clear CMOS header, Chassis Intrusion header, COM Port header, Front Panel Audio header (F_AUDIO), Front Panel System header |
| البايوس |
256 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS TUF Protection (DIGI+ VRM with DrMOS, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O), Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED), M.2 & VRM heatsinks, BIOS FlashBack, ProCool, pre-mounted I/O shield, SafeDIMM, Aura Sync |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x TUF GAMING sticker, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x Quick start guide |
| الأبعاد |
micro-ATX Form Factor, 24.4 x 24.4 cm (9.6 x 9.6 inch) |
