| السلسلة |
TUF Gaming |
| الموديل |

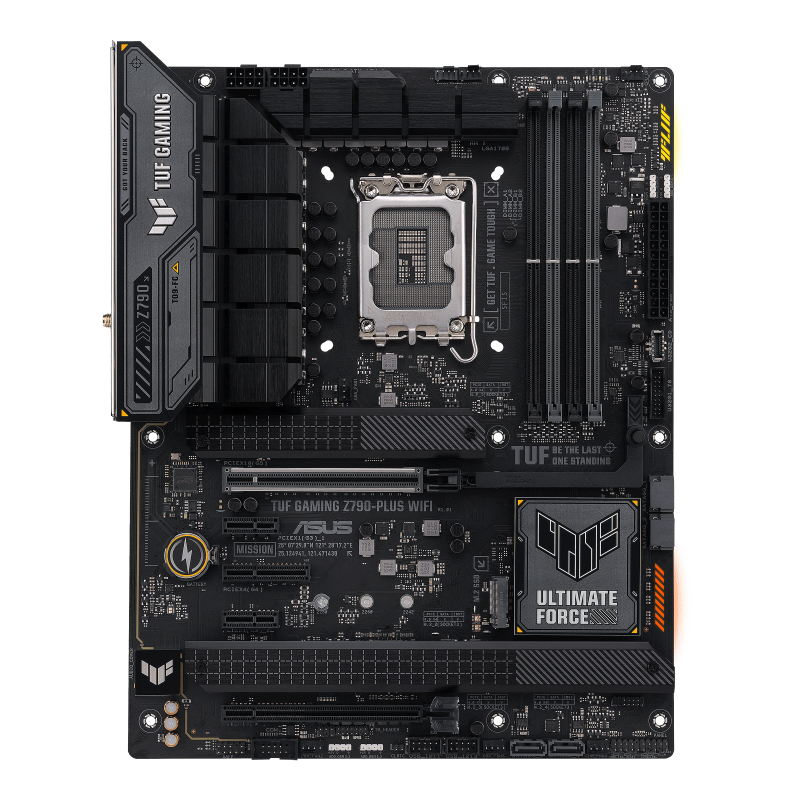

Z790-PLUS WIFI |
| الشريحة |
Intel Z790 |
| المقبس |
Intel LGA1700 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 192GB, DDR5 4800-7200 MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP, OptiMem II |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU); 1 x PCIe 4.0 x16 slot via chipset (x4 mode); 1 x PCIe 4.0 x4 slot; 2 x PCIe 3.0 x1 slots |
| التخزين |
4 x M.2 slots (M.2_1 PCIe 4.0 x4 on 13th/12th Gen, M.2_2/M.2_3 PCIe 4.0 x4, M.2_4 PCIe 4.0 x4 & SATA); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Intel 2.5Gb Ethernet with TUF LANGuard, plus Wi-Fi 6E (802.11ax) 2x2, Bluetooth 5.3 |
| الصوت |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, up to 32-Bit/192kHz playback, 120dB SNR playback / 113dB SNR recording, internal amplifier, rear optical S/PDIF out, Audio Shielding |
| منافذ USB |
Rear (8 total): 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C), 4 x USB 3.2 Gen 1 Type-A. Front (7 total): 1 x USB 3.2 Gen 2 Type-C connector, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |
1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C), 4 x USB 3.2 Gen 1 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Intel 2.5Gb LAN port, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 2 x 8-pin +12V, 4 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 2 Type-C connector, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), System Panel header with chassis intrude, Thunderbolt (USB4) header |
| البايوس |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS TUF Protection (DIGI+ VRM with DrMOS, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O), Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot), M.2 & VRM heatsinks, ProCool, pre-mounted I/O shield, SafeDIMM, Aura Sync RGB header |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 1 x TUF GAMING sticker, 2 x M.2 Rubber Packages, 1 x Screw package for M.2 SSD, 1 x TUF Certification card, 1 x User guide |
| الأبعاد |
ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch) |
