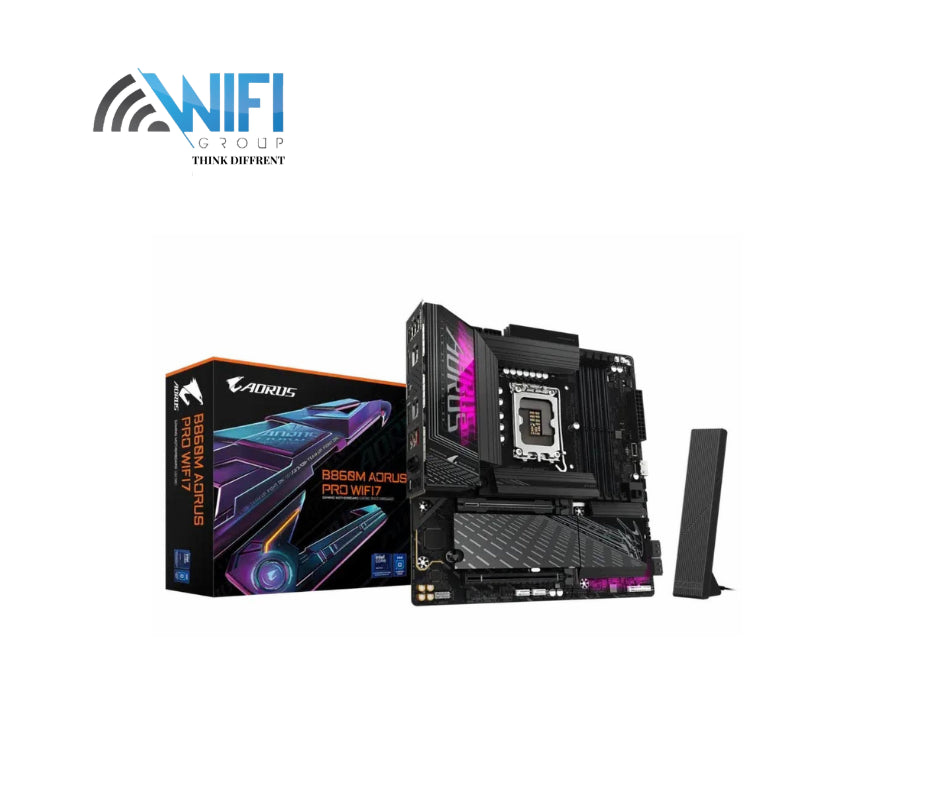

Quick Summary: Micro-ATX LGA1851 motherboard on the Intel B860 chipset for Intel Core Ultra Series 2 processors, with DDR5 memory up to 256GB, PCIe 5.0 M.2 storage, 2.5GbE LAN, Wi-Fi 7, and USB4 Type-C.
Key Features
- Intel LGA1851 socket, B860 chipset, Core Ultra Series 2 ready
- Digital 12+1+2 phase 60A VRM
- 1x PCIe 5.0 M.2 + 2x PCIe 4.0 M.2 slots
- 2.5GbE LAN + Wi-Fi 7
- USB4 Type-C with DP-Alt and HDMI support
Technical Specifications
| Socket |
Intel LGA1851 |
| Chipset |
Intel B860 |
| Supported Processors |
Intel Core Ultra Processors (Series 2) |
| Memory |
4x DIMM, DDR5, up to 256GB, DDR5-4800 to DDR5-9200 (OC) |
| M.2 Slots |
1x PCIe 5.0 x4, 2x PCIe 4.0 x4 |
| LAN |
2.5GbE |
| Wireless |
Wi-Fi 7 |
| USB |
USB4 Type-C with DP-Alt, HDMI |
| Form Factor |
Micro-ATX (24.4 x 24.4cm) |
Compatibility
Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket.
