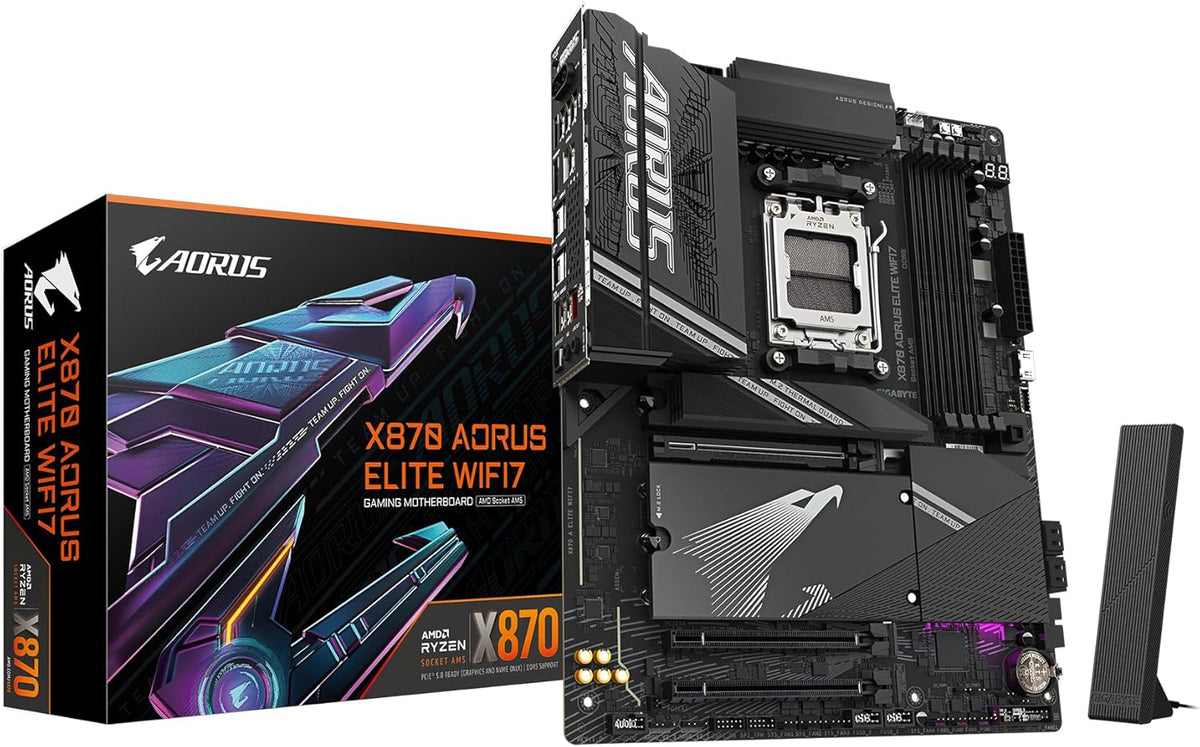

Quick Summary: Full ATX AM5 motherboard on the AMD X870 chipset with dual-channel DDR5 and AMD EXPO support, quad M.2 storage including three PCIe 5.0, 2.5GbE LAN, and Wi-Fi 7.
Key Features
- AMD Socket AM5, X870 chipset
- Digital twin 16+2+2 phase VRM
- 4x M.2 slots including 3x PCIe 5.0 x4

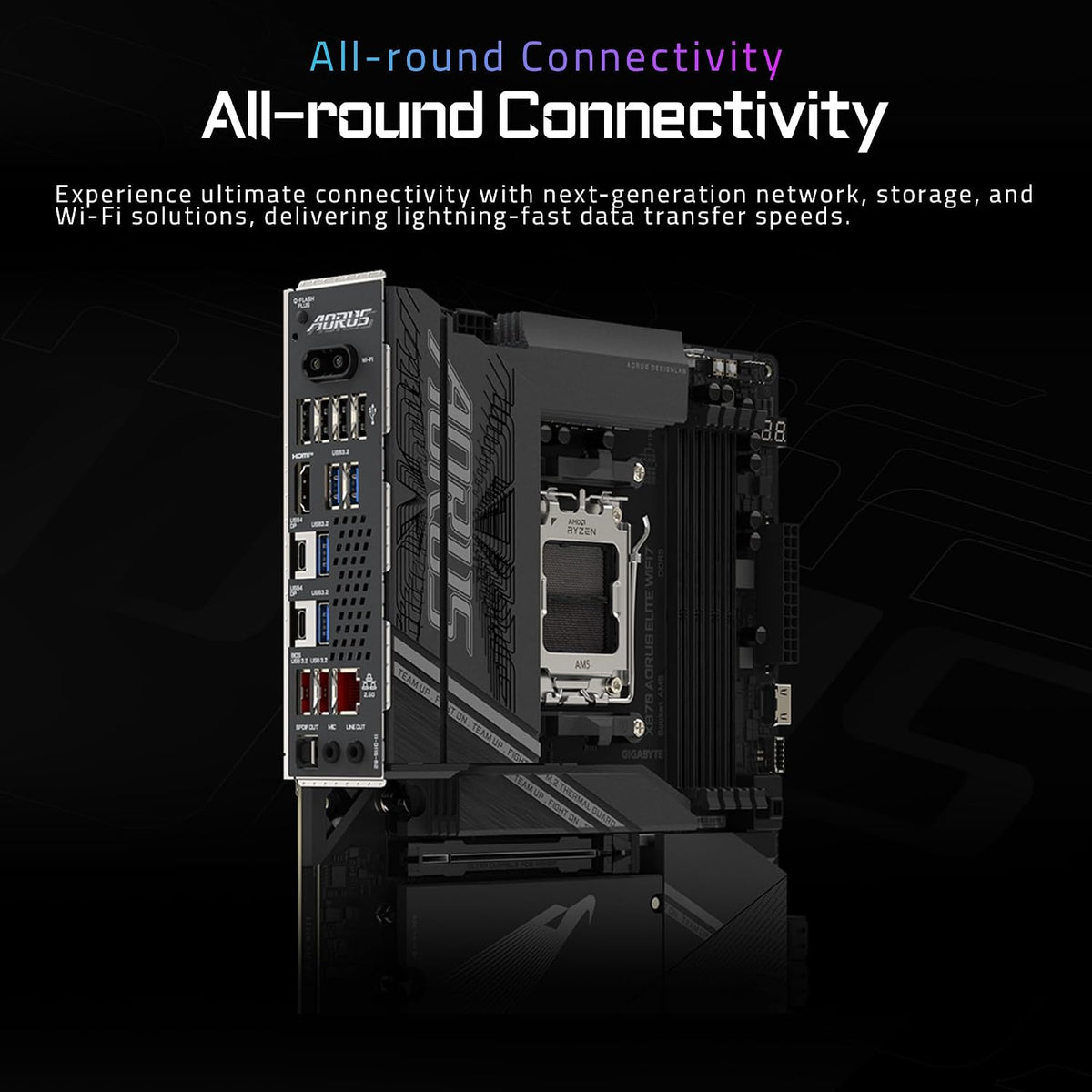

- Realtek Wi-Fi 7 (RTL8922AE), Bluetooth 5.4, 2.5GbE LAN
Technical Specifications
| Socket |
AMD AM5 |
| Chipset |
AMD X870 |
| Supported Processors |
AMD Ryzen 9000/8000/7000 series |
| Memory |
Dual-channel DDR5, 4x DIMM, up to 256GB, AMD EXPO support |
| M.2 Slots |
4x, including 3x PCIe 5.0 x4 |
| SATA |
4x SATA 6Gb/s |
| LAN |
2.5GbE |
| Wireless |
Wi-Fi 7 (RTL8922AE), Bluetooth 5.4 |
| PCIe |
1x PCIe 5.0 x16 (PCIe 5.0 x16 mode with Ryzen 9000/7000 series) |
| Form Factor |
ATX |
Compatibility
Supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket.
