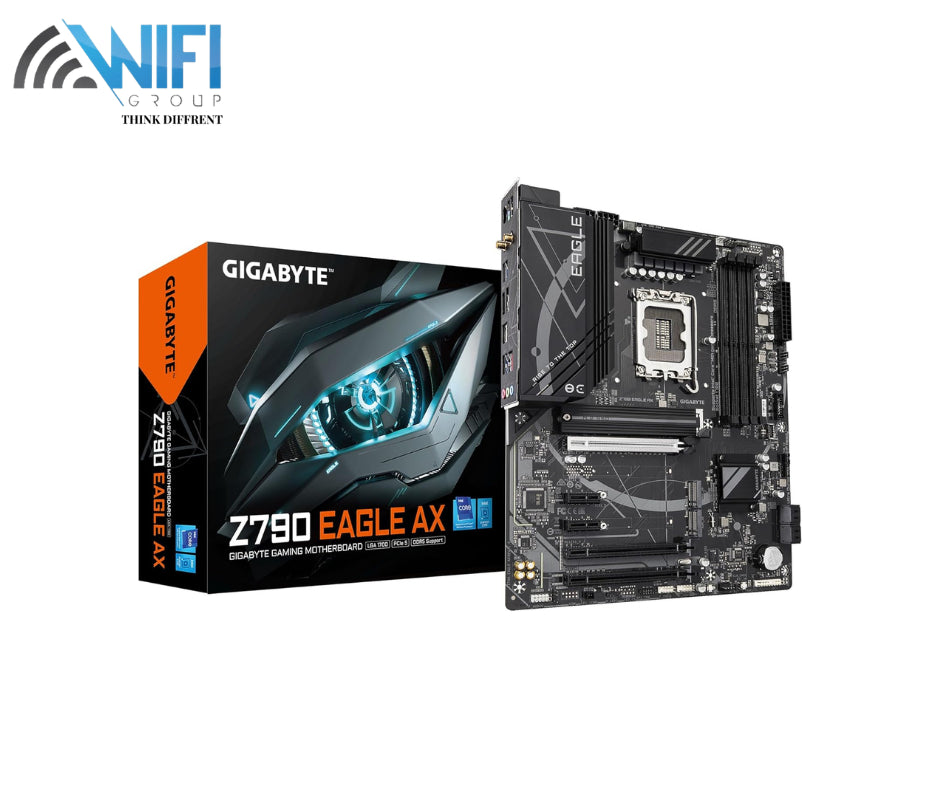

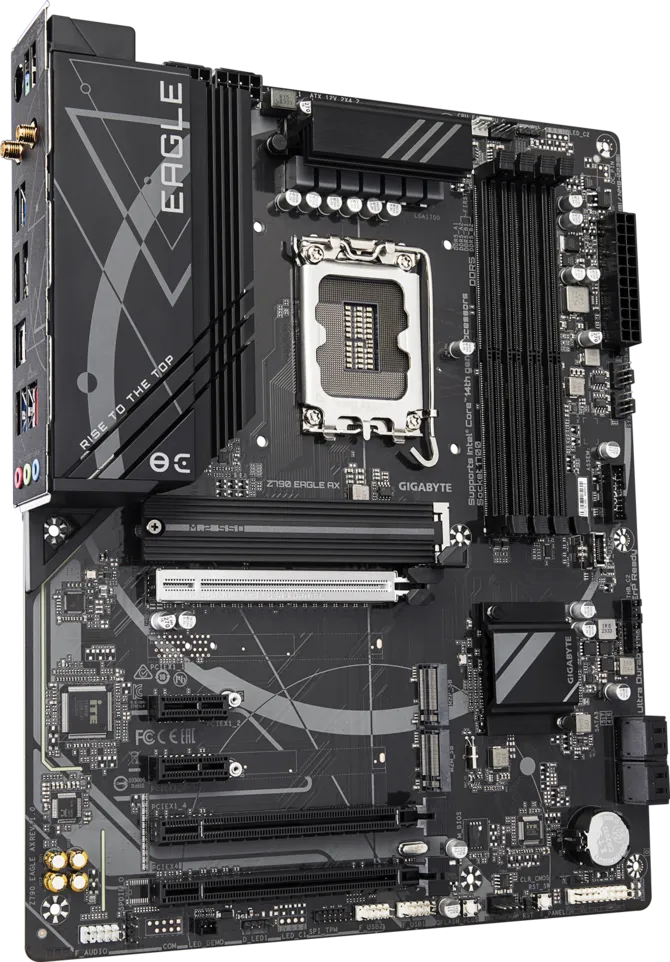

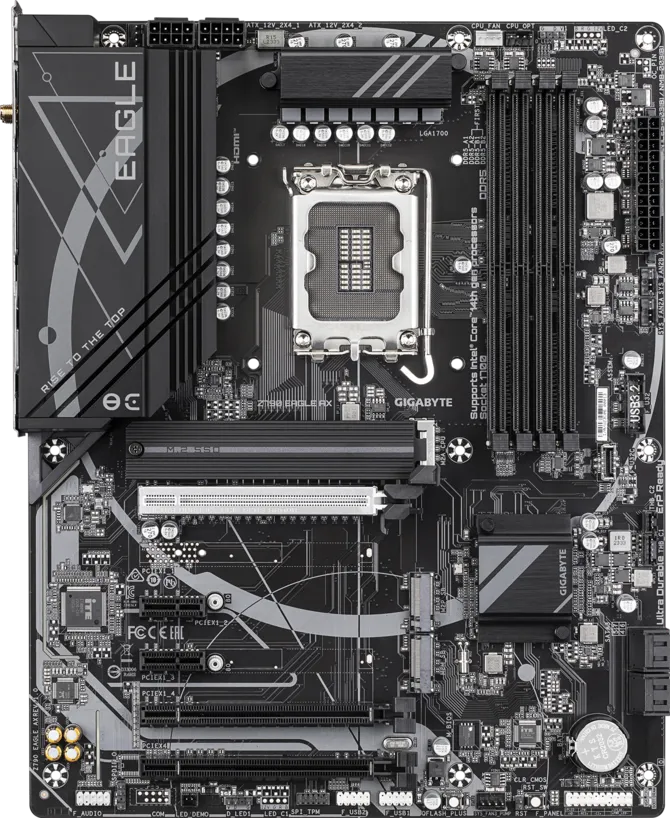

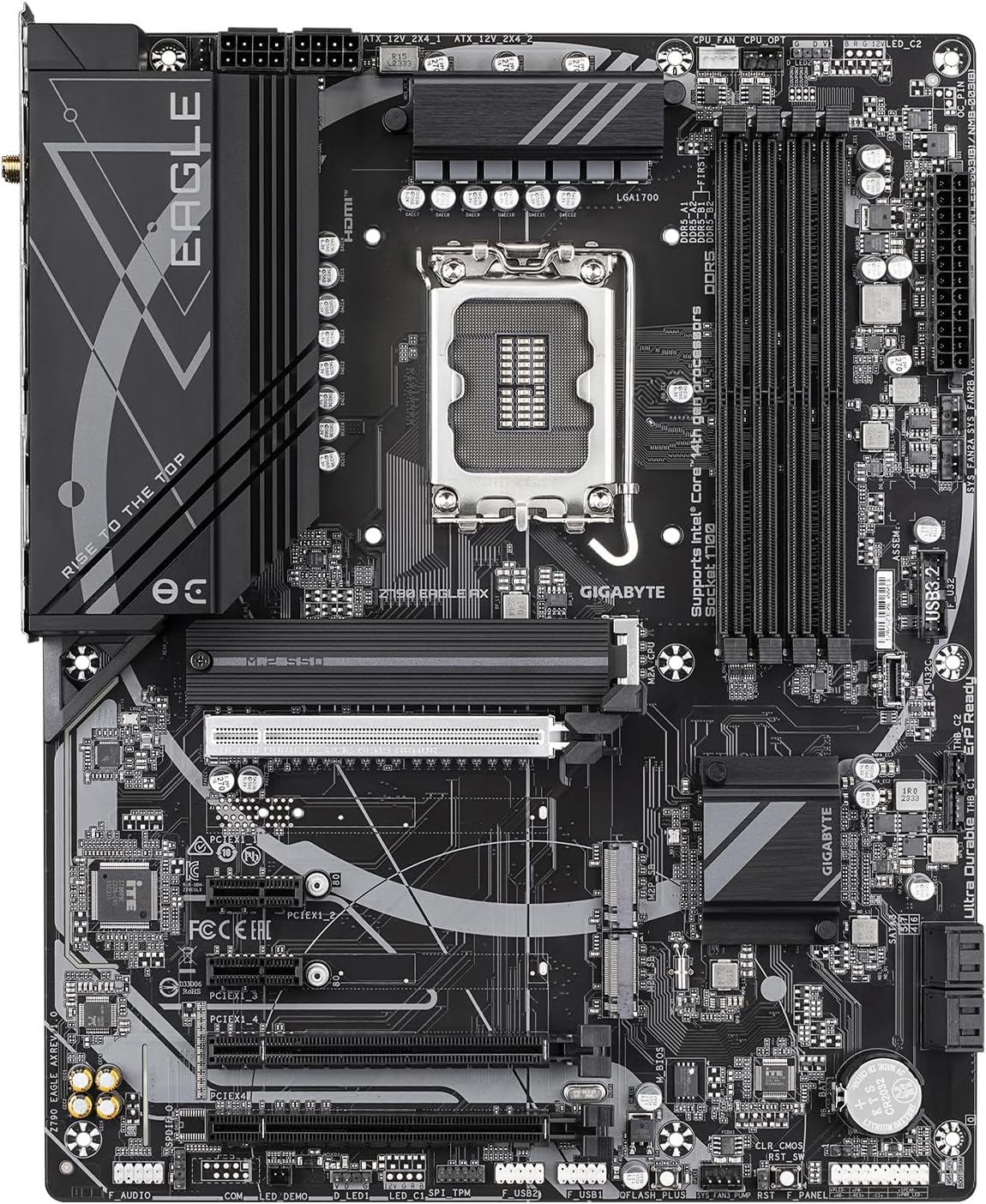

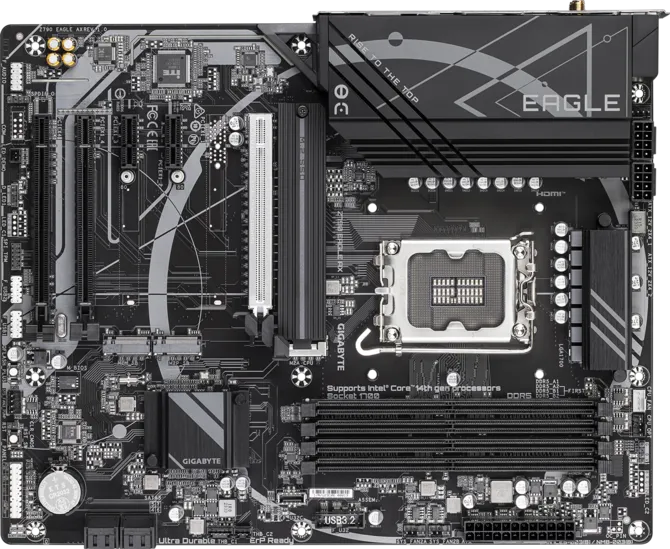

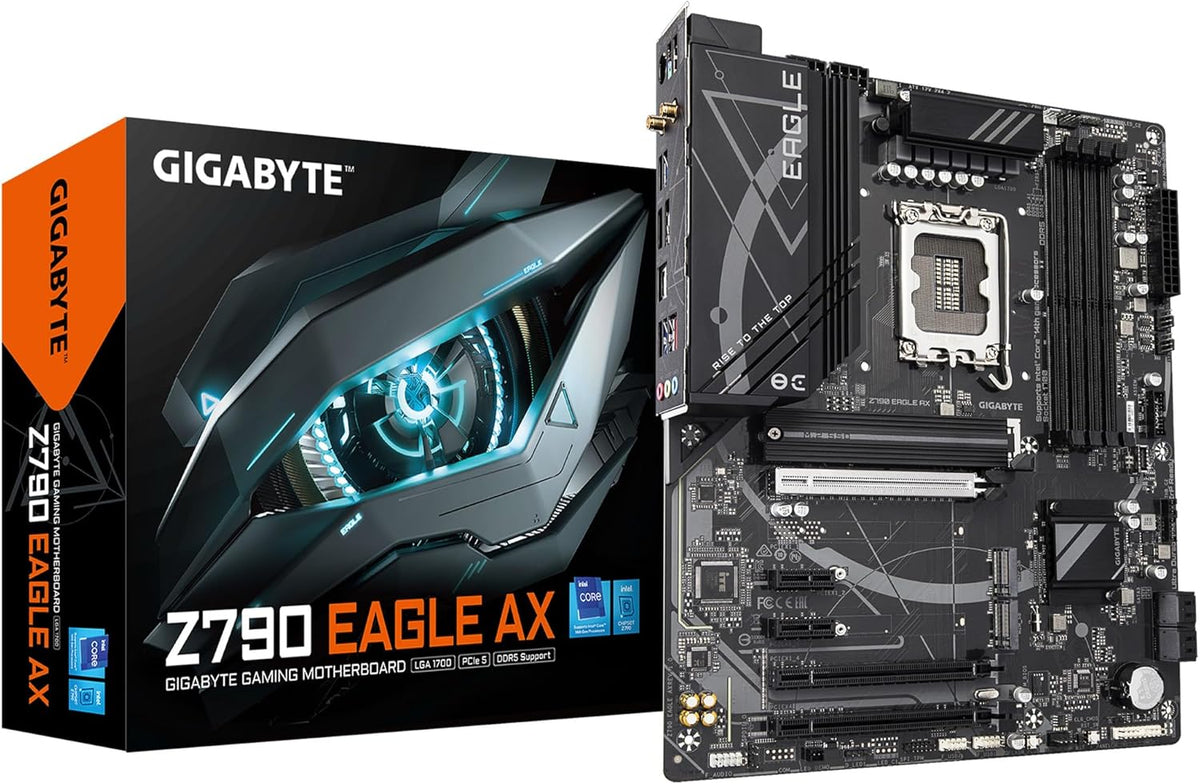

Name: Gigabyte Z790 Eagle AX DDR5 Motherboard
Brand: Gigabyte
Price: 9999.00 EGP
Availability: InStock

Gigabyte Z790 Eagle AX DDR5 Motherboard

LE 9,999

Gigabyte Z790 Eagle AX DDR5 Motherboard

LE 9,999

ملخص سريع

لوحة Gigabyte Z790 Eagle AX بمنفذ LGA1700.

الوصف الكامل

Quick Summary: ATX LGA1700 motherboard on the Intel Z790 chipset with DDR5 memory up to 192GB, triple PCIe 4.0 M.2 storage, Wi-Fi 6E, 2.5GbE LAN, and a 5-year warranty.

Key Features

Intel LGA1700 socket, Z790 chipset
3x PCIe 4.0 x4 M.2 slots
4x SATA 6Gb/s with RAID 0/1/5/10
1x PCIe 5.0 x16 + 1x PCIe 4.0 x16 (x4) + 1x PCIe 3.0 x16 (x1) + 2x PCIe 3.0 x1
Wi-Fi 6E, USB-C 3.2 Gen 2, 2.5GbE LAN

Technical Specifications

Socket	Intel LGA1700
Chipset	Intel Z790
Supported Processors	12th, 13th, 14th Gen Intel Core
Memory	4x DIMM, DDR5, up to 192GB
M.2 Slots	3x PCIe 4.0 x4
SATA	4x SATA 6Gb/s, RAID 0/1/5/10
PCIe Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x1), 2x PCIe 3.0 x1
Wireless	Wi-Fi 6E
LAN	2.5GbE
Form Factor	ATX

Compatibility

Supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket.

المواصفات الفنية

العلامة التجارية	Gigabyte
السلسلة	Eagle
الموديل	Z790 EAGLE AX
الشريحة	Z790
المقبس	LGA1700
نوع الذاكرة	DDR5
دعم الذاكرة	4 x DIMM, Dual Channel DDR5, Max. 256GB (64GB single DIMM), speeds from 4400 to 7600 MT/s depending on CPU
منافذ التوسعة	1 x PCIe 4.0 x16 slot (PCIEX4); 1 x PCIe 3.0 x16 slot running at x1 (PCIEX1_4); 2 x PCIe 3.0 x1 slots
التخزين	3 x M.2 slots
كرت الشبكة	2.5GbE LAN plus Intel Wi-Fi 6E 802.11ax

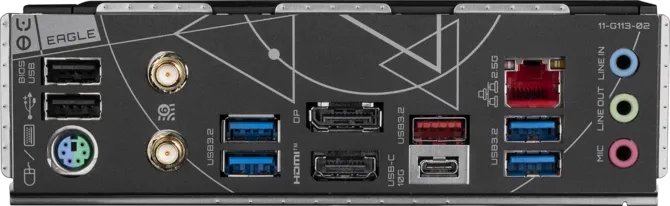

لوحة التوصيلات الخلفية	USB 3.2 Gen 1 ports, USB 3.2 Gen 2x2 Type-C, 1 x DisplayPort, 1 x HDMI port, USB 2.0/1.1 ports including Q-Flash Plus port, 1 x PS/2 keyboard/mouse port
