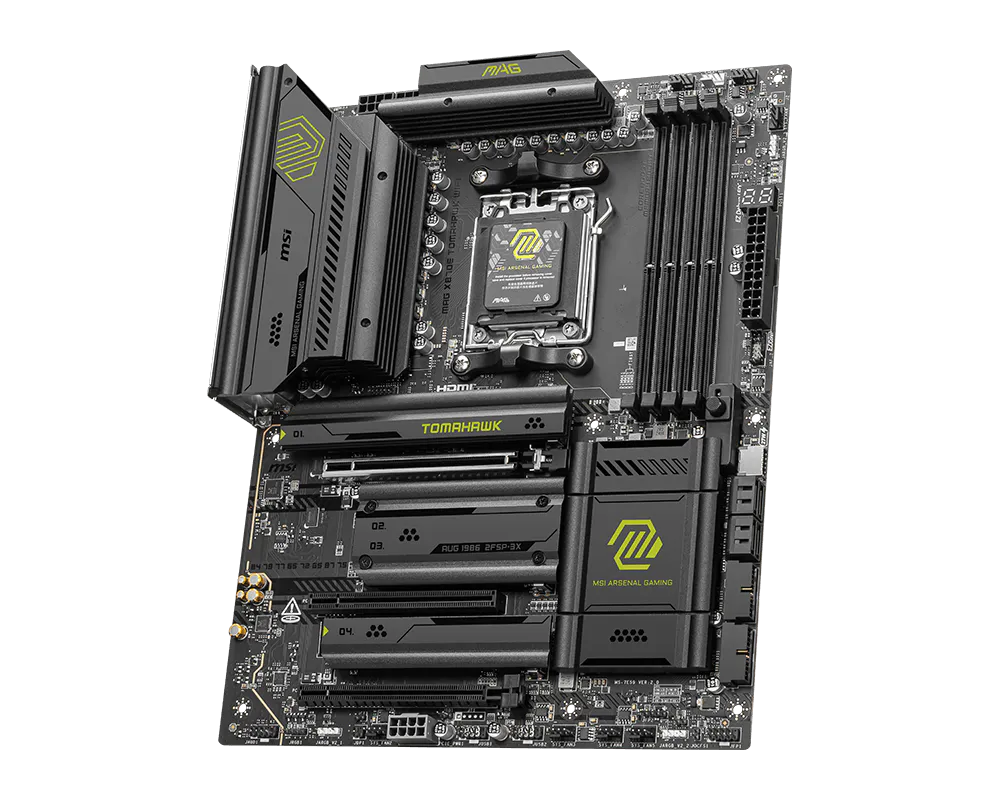

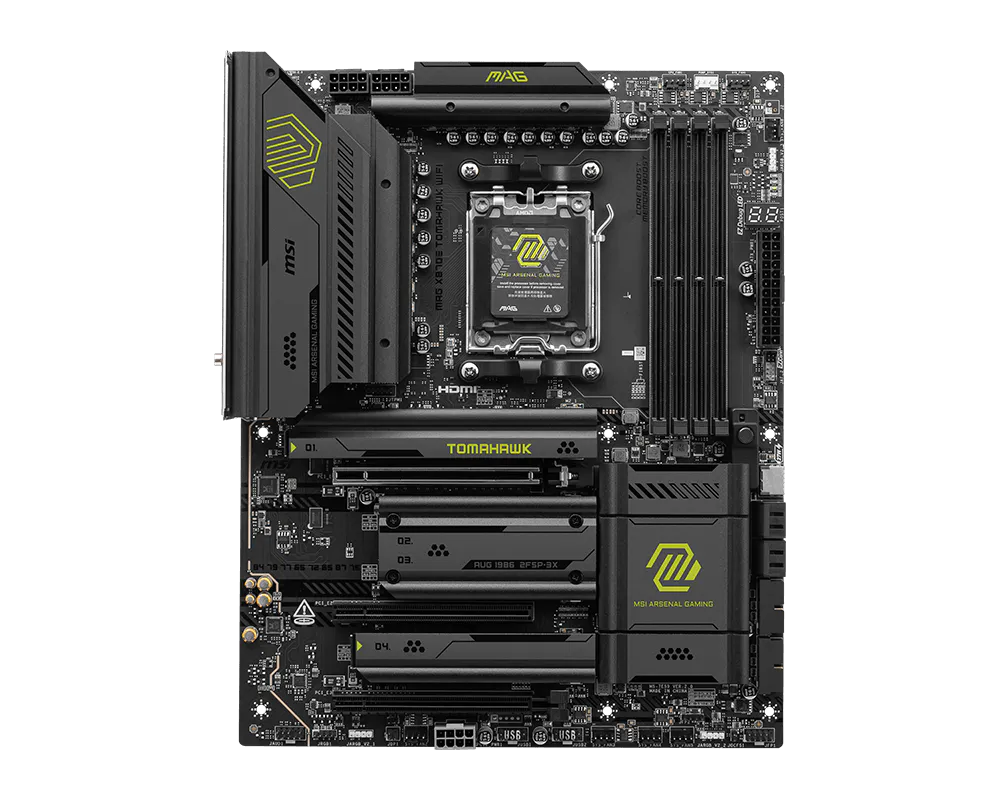

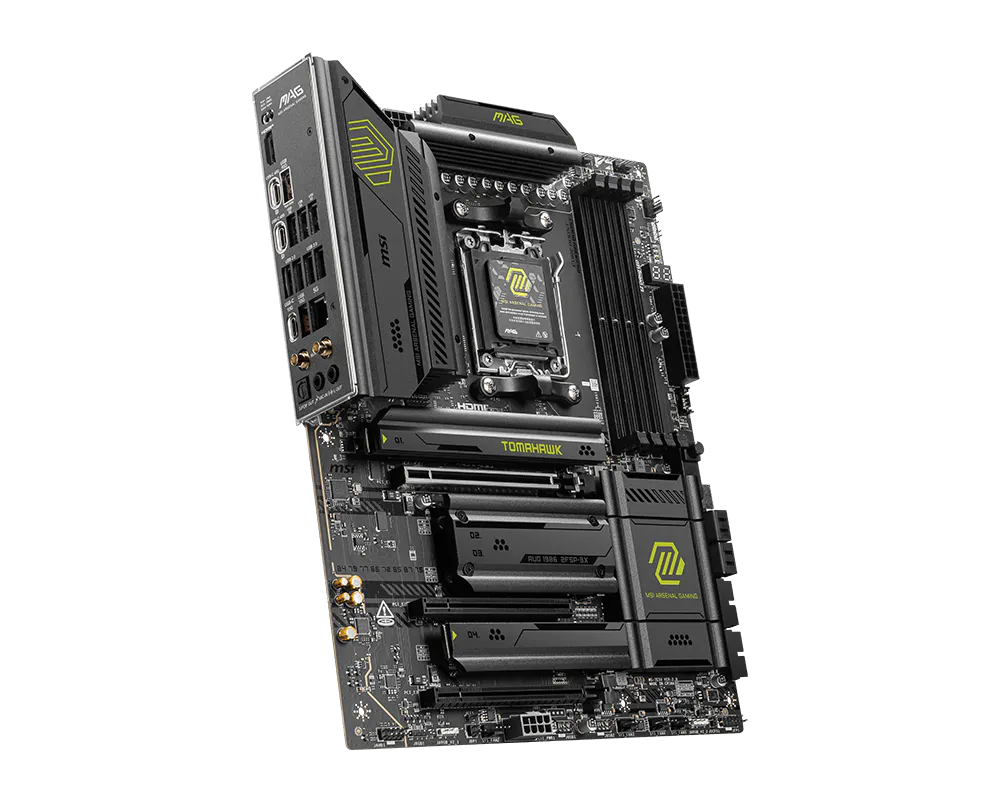

Quick Summary: MSI MAG X870E TOMAHAWK MAX WIFI ATX motherboard for AMD Socket AM5, with PCIe 5.0, Wi-Fi 7, and USB 40Gbps.
Key Features
- AMD Socket AM5, X870E chipset
- 2x M.2 Gen5 + 2x M.2 Gen4 storage
- Wi-Fi 7, 5G LAN, PCIe 5.0
- 14+2+1 Duet Rail Power System 80A SPS
Technical Specifications
| Socket |
AMD AM5 |
| Chipset |
AMD X870E |
| Supported Processors |
AMD Ryzen 9000/8000/7000 series |
| Memory |
4x DIMM, DDR5, dual-channel, up to 8400+MT/s (OC) |
| PCIe Slots |
1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| M.2 Slots |
2x Gen5 x4 (128Gbps), 2x Gen4 x4 (64Gbps) |
| SATA |
4x SATA 6Gbps |
| USB |
2x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 3x USB 10Gbps, 7x USB 5Gbps, 8x USB 2.0 |
| Display |
HDMI 2.1 FRL (8K@60Hz) |
| Networking |
Wi-Fi 7, 5G LAN |
| Form Factor |
ATX |
Compatibility
Supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket.
