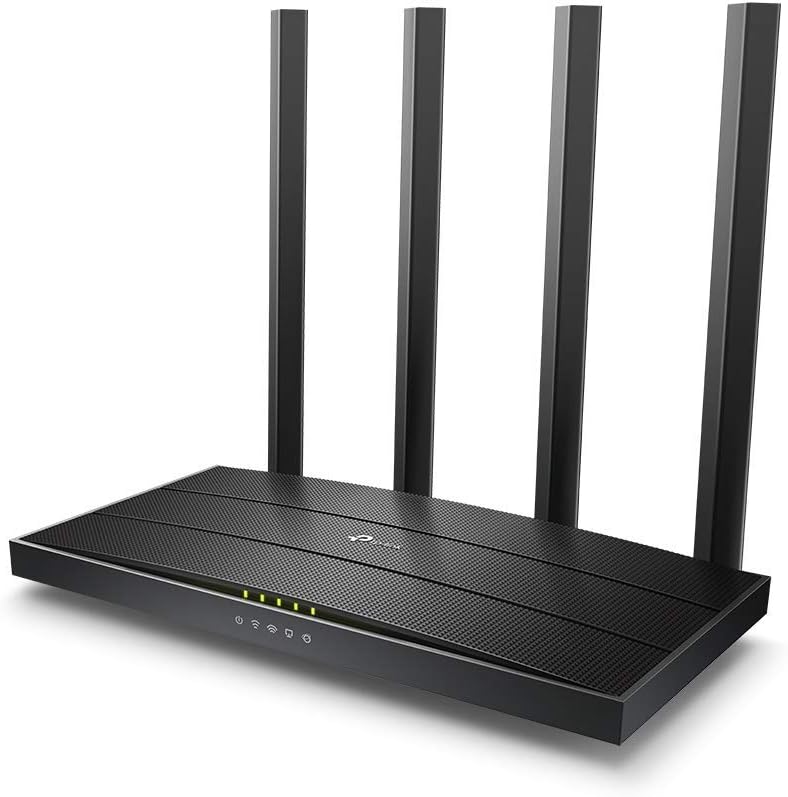

TP-Link AC1200 Wireless Dual Band Full Gigabit Wi-Fi Router, Wi-Fi Speed Up to 867 Mbps/5 GHz + 300 Mbps/2.4 GHz, 4+1 Gigabit Ports, Dual-Core CPU, Paren

Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz

AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)

3 Bedroom Houses

4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

Medium

Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation

Router Mode Access Point Mode

Dual-Core CPU

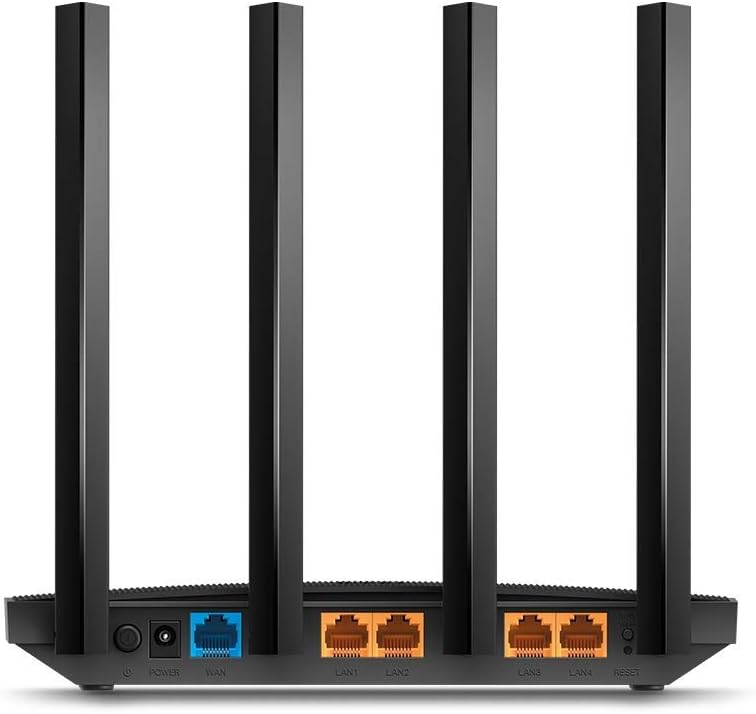

1× Gigabit WAN Port 4× Gigabit LAN Ports

WPS/Wi-Fi Button Power On/Off Button Reset Button

12 V ⎓ 1 A

WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)

SPI Firewall Access Control IP & MAC Binding Application Layer Gateway

1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

OpenVPN PPTP

IPv4 IPv6

OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

URL Filtering Time Controls

Dynamic IP Static IP PPPoE PPTP L2TP

QoS by Device

OTA Firmware Upgrade TP-Link ID DDNS

Virtual Servers Port Forwarding Port Triggering DMZ UPnP

IGMP Proxy IGMP Snooping Bridge Tag VLAN

Address Reservation DHCP Client List Server

TP-Link NO-IP DynDNS

Tether App Webpage

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)

FCC, CE, RoHS

Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz)

5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm；

8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)

Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
