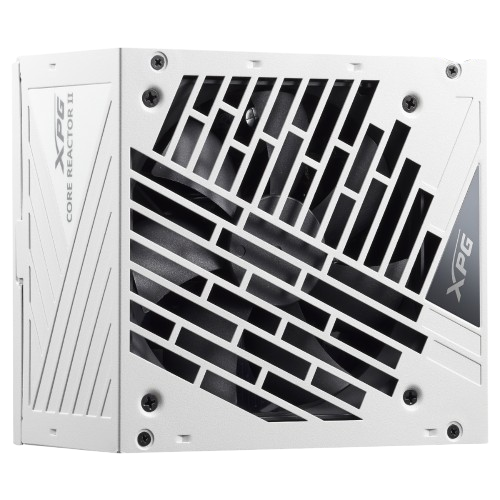

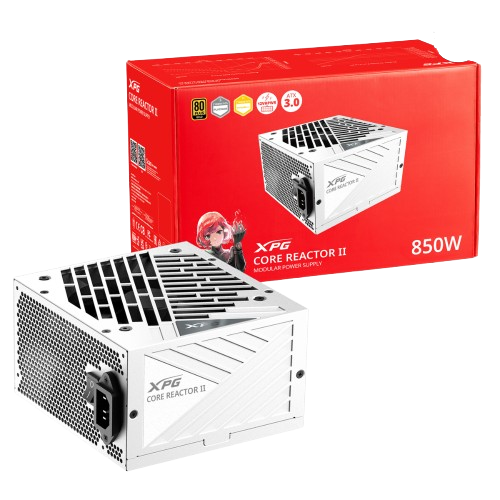

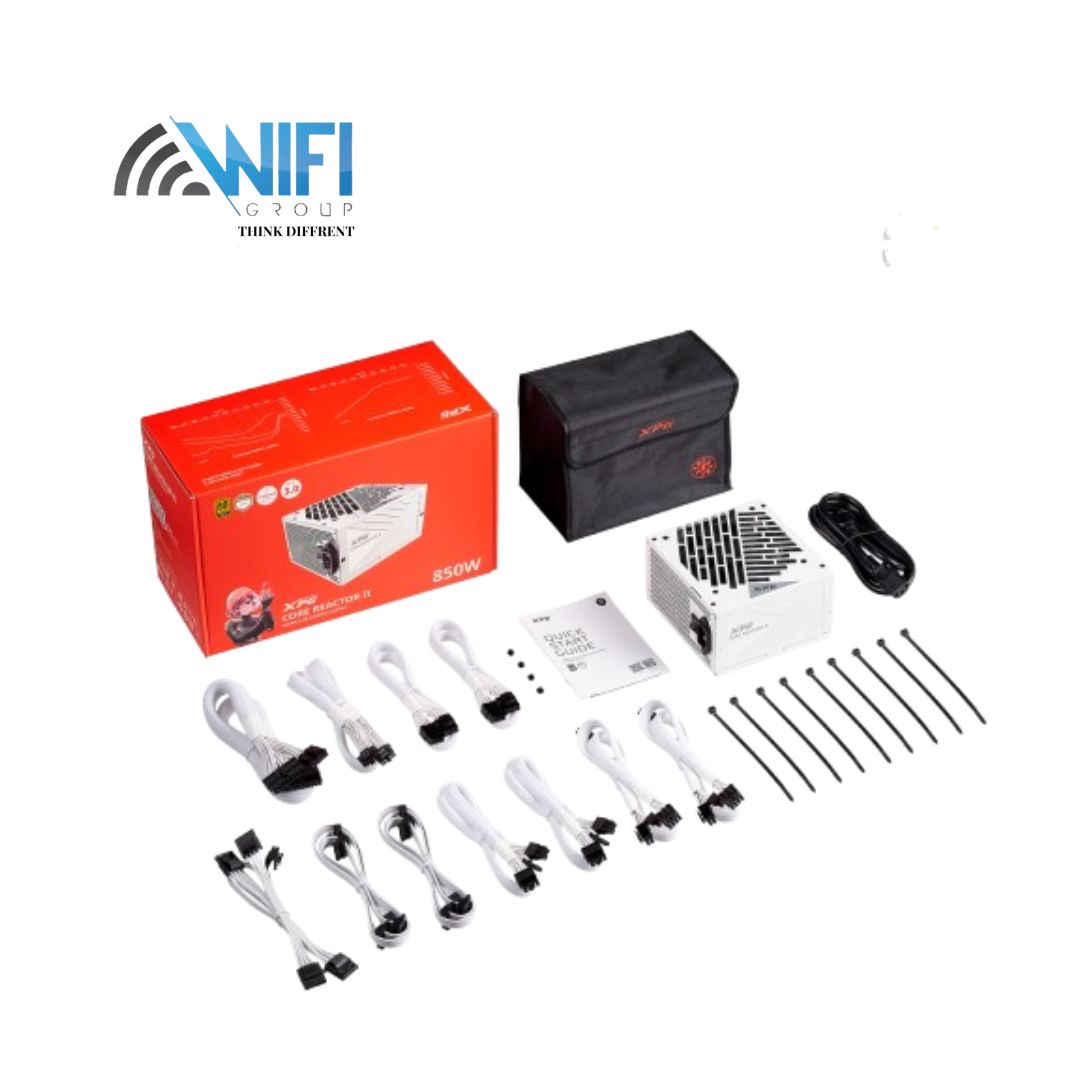

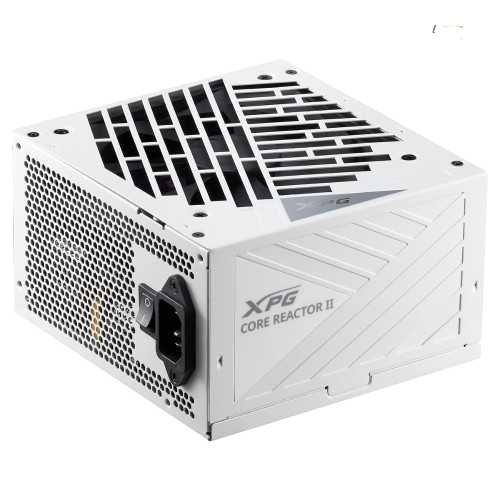

XPG CORE REACTOR II 850W WHITE PCIE 5 & ATX 3.0 Power Supply - Full Modular - 80+ GOLD Certified

• Description

General:

• 80 Plus Rating: GOLD

• ATX Version: ATX 3.0 & ATX 3.1

Protections:

• OCP (Over Current Protection)

• OVP (Over Voltage Protection)

• OPP (Over Power Protection)

• OTP (Over Temperature Protection)

• UVP (Under Voltage Protection)

• SCP (Short Circuit Protection)

• NLO (No Load Operation)

• SIP (Surge and Inrush Protection)

Certifications:

• CE

• CB

• FCC (IC)

• TUV

• cTUVus

• TUV S-Mark

• NOM

• BSMI

• UKCA

• EAC

• CCC

• RCM

Power Factor Correction:

• PFC > 0.99

Input Specifications:

• Voltage: 100-240V

• Current: 12A

• Frequency: 47Hz-63Hz

DC Output Voltages:

• +5V

• +3.3V

• +12V

• -12V

• +5Vsb

Total Output:

• +5V/+3.3V : 22A

• +12V : 70.8A

• -12V : 0.3A

• +5Vsb : 3A

Power Excursion:

• 1997W (up to 235% of the PSU's rated power for 100μs)

Operating Temperature:

• 50°C

Fan:

• Size: 120mm FDB (Fluid Dynamic Bearing) Fan

• Bearing: FDB (Fluid Dynamic Bearing)

• Speed: 2400 RPM

MTBF:

• 100K hours at full load

Connectors:

• ATX 24 Pin: 1

• EPS 8 Pin: 2

• PCI-E 6+2 Pin: 6

• Molex 4 Pin: 4

• 12VHPWR (12 + 4) Connector (600W): 1

• SATA Connector: 8

Introducing our robust 250W Power Supply Unit – the perfect solution for seamless performance and reliable power delivery. This high-quality power supply unit is designed with user-friendly installation in mind, featuring a comprehensive array of cables, connectors, and accessories. Engineered for optimal performance, it's an essential upgrade for any system. Available in a sleek, compact design, this PSU ensures your setup remains both powerful and stylish.
