| الموديل |

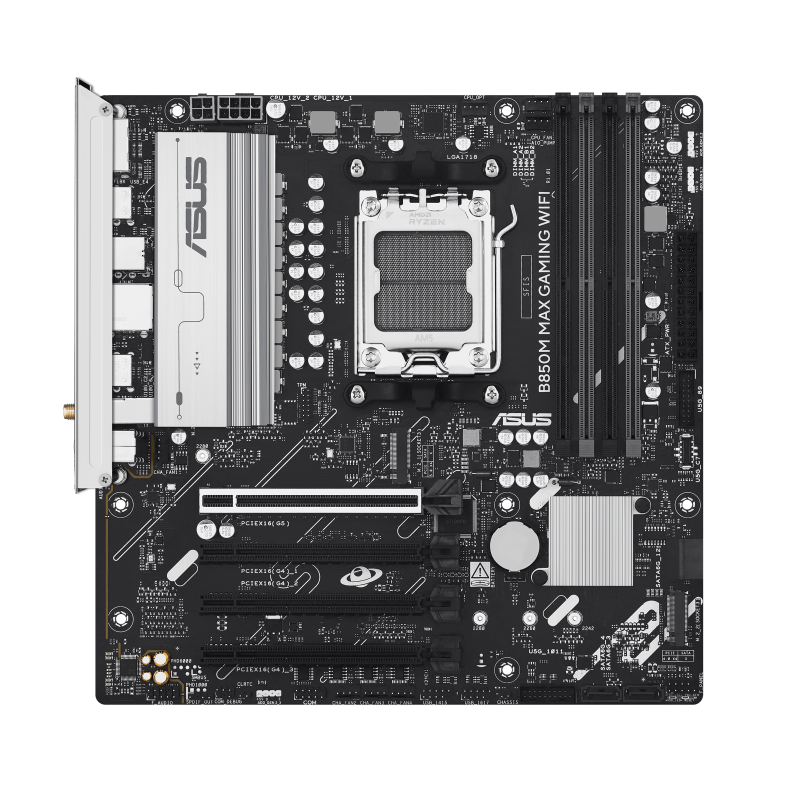

B850M MAX Gaming WiFi |
| الشريحة |
AMD B850 |
| المقبس |
AMD AM5 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 256GB, DDR5 up to 8000+ MT/s (OC), ECC and Non-ECC Un-buffered DIMM, Dual Channel, Supports AMD EXPO, ASUS Enhanced Memory Profile (AEMP) |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU, x16 mode, or x8/x4 mode for Ryzen 8000); 3 x PCIe 4.0 x16 slots (x1 mode) |
| التخزين |
3 x M.2 slots (M.2_1 PCIe 5.0 x4 on Ryzen 9000/7000, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x2); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 support varies by CPU (RAID 0/1/5/10 on Ryzen 9000) |
| كرت الشبكة |
1 x Realtek 1Gb Ethernet with ASUS LANGuard, plus Wi-Fi 6 (802.11ax) 1x1, Bluetooth 5.4 |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors |
| منافذ USB |
Rear (9 total): 2 x USB 10Gbps (1x Type-A + 1x Type-C), 2 x USB 5Gbps Type-A, 5 x USB 2.0 Type-A. Front (9 total): 1 x USB 5Gbps Type-C connector, 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |
2 x USB 10Gbps (1x Type-A + 1x Type-C), 2 x USB 5Gbps Type-A, 5 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 1Gb LAN port, 3 x Audio jacks, 1 x BIOS FlashBack button |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 5Gbps Type-C connector, 2 x USB 5Gbps headers, 2 x USB 2.0 headers, 3 x Addressable RGB Gen 2 headers, Clear CMOS header, Chassis Intrusion header, COM Port header, Front Panel Audio header (F_AUDIO), S/PDIF Out header, SPI TPM header, System Panel header |
| البايوس |
256 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O), Q-Design (Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot), VRM heatsink, BIOS FlashBack, pre-mounted I/O shield, Aura Sync |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 2 x Screw packages for M.2 SSD, 1 x Quick start guide |
| الأبعاد |
mATX Form Factor, 24.4 x 24.4 cm (9.6 x 9.6 inch) |
