| العلامة التجارية |
ASUS |
| السلسلة |
PRIME |
| الموديل |

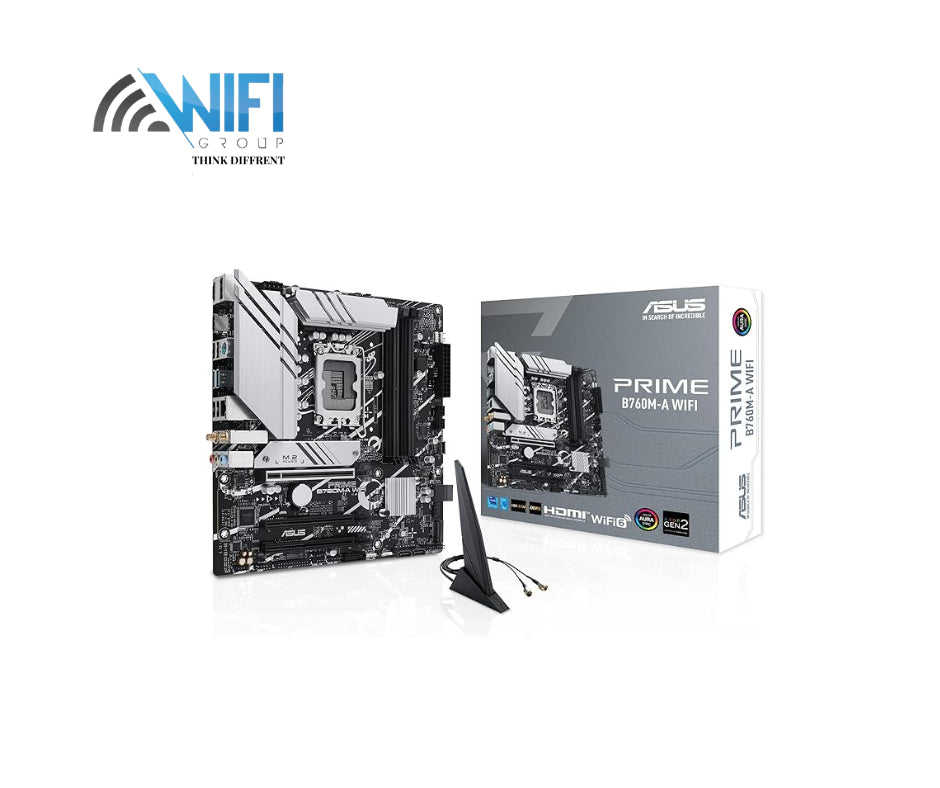

B760M-A WIFI |
| الشريحة |
Intel B760 |
| المقبس |
Intel LGA1700 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 192GB, DDR5 4800-7200+ MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP, OptiMem II |
| منافذ التوسعة |
1 x PCIe 4.0 x16 slot (CPU); 1 x PCIe 4.0 x16 slot via chipset (x4 mode); 1 x PCIe 4.0 x16 slot via chipset (x1 mode) |
| التخزين |
2 x M.2 slots (Key M, PCIe 4.0 x4, 2242/2260/2280); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Realtek 2.5Gb Ethernet, plus Wi-Fi 6 (802.11ax) 2x2, Bluetooth 5.2 |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors |
| منافذ USB |
Rear (6 total): 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A. Front (10 total): 2 x USB 3.2 Gen 1 headers (4 ports), 1 x USB 3.2 Gen 1 Type-C connector, 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port) |
| لوحة التوصيلات الخلفية |
2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 2 x HDMI ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x PS/2 combo port |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 2 x USB 3.2 Gen 1 headers, 1 x USB 3.2 Gen 1 Type-C connector, 2 x USB 2.0 headers, 1 x USB 2.0 header, 3 x Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), LPT header, S/PDIF Out header, SPI TPM header, System Panel header with chassis intrude |
| البايوس |
128 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), M.2 & VRM heatsinks, ProCool, Aura Sync RGB header |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x User guide |
| الأبعاد |
mATX Form Factor, 24.4 x 24.4 cm (9.6 x 9.6 inch) |
