Name: ASUS Intel PRIME B760M-A WIFI DDR5
Brand: ASUS
Price: 7299.00 EGP
Availability: InStock

ملخص سريع

لوحة ASUS PRIME B760M-A WIFI بمنفذ LGA1700.

الوصف الكامل

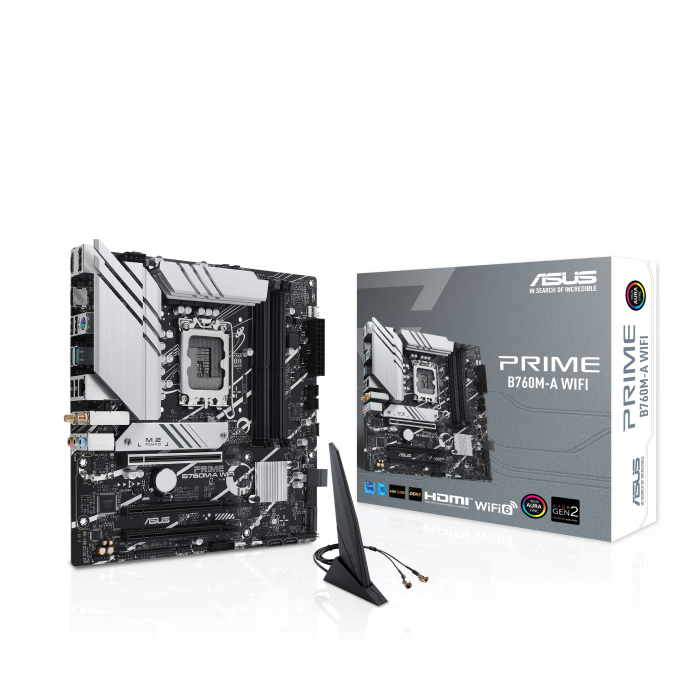

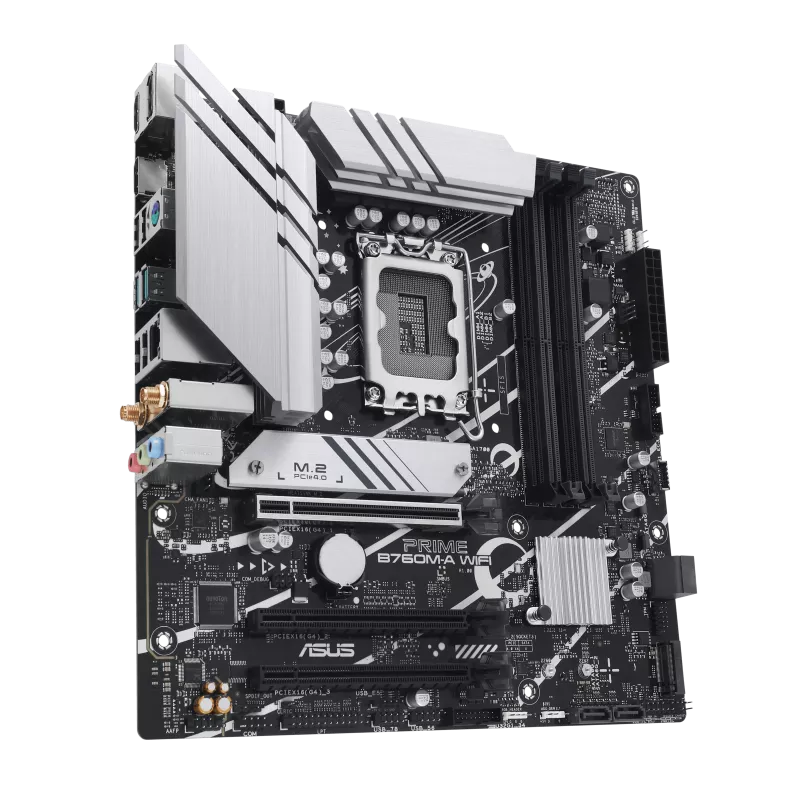

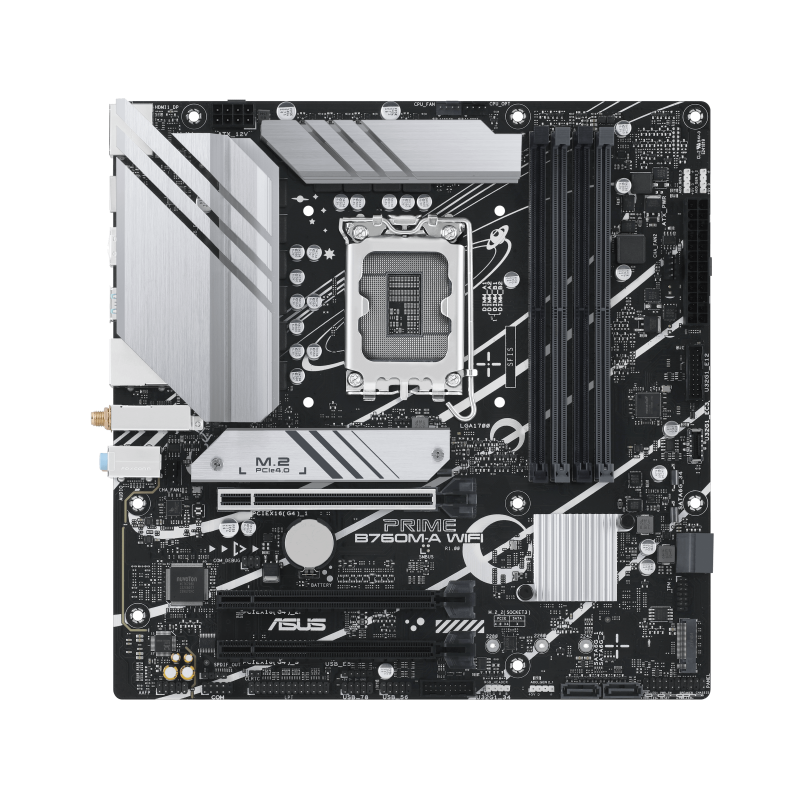

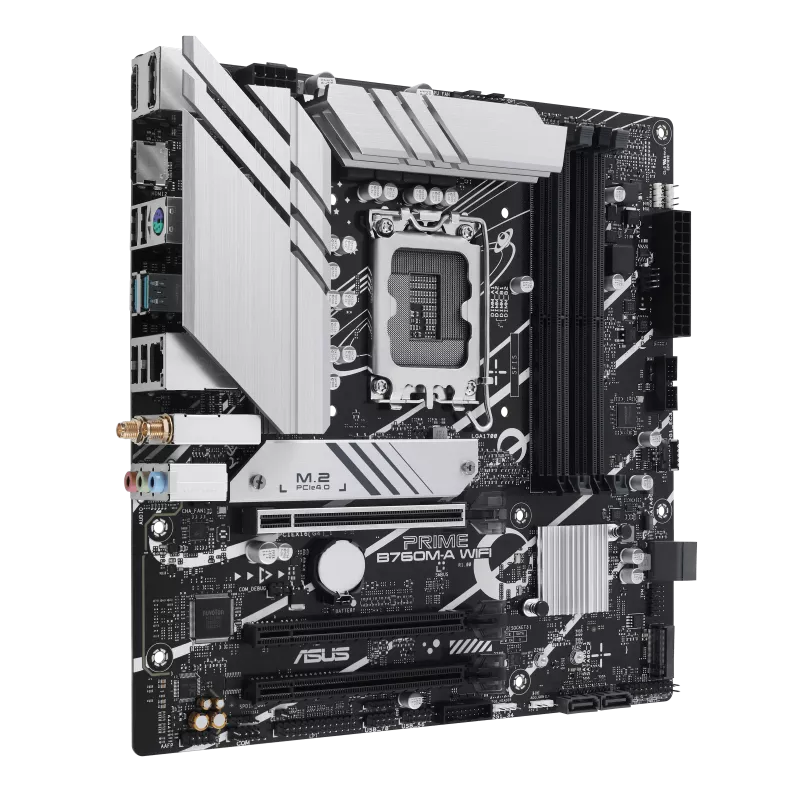

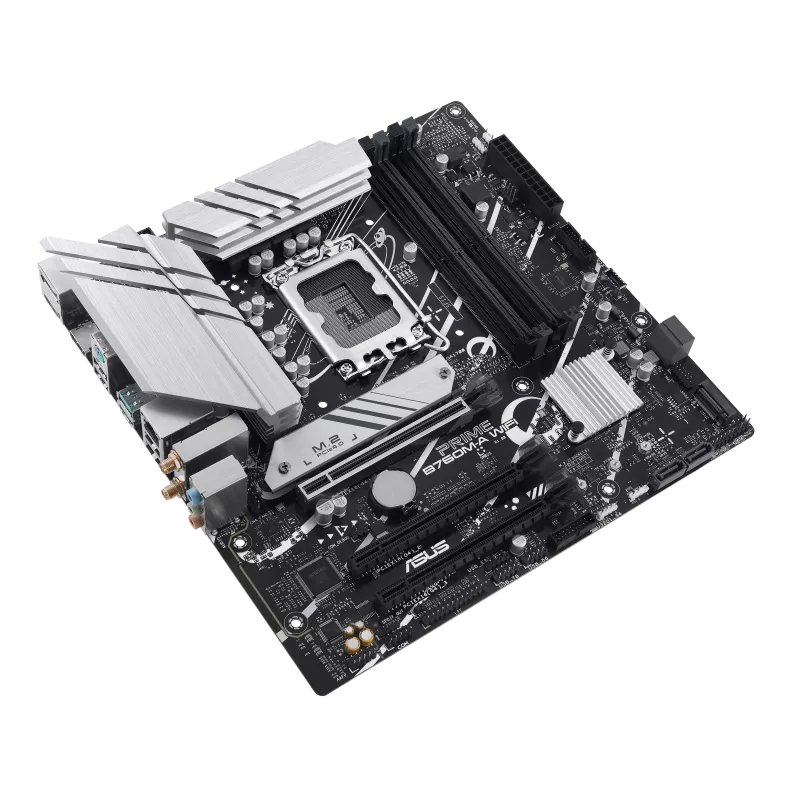

Quick Summary: ASUS Intel PRIME B760M-A WIFI Micro-ATX motherboard for Intel LGA1700, with DDR5 memory, Wi-Fi 6, and dual M.2.

Key Features

Intel LGA1700 socket, B760 chipset
Built-in Wi-Fi 6, Realtek 2.5Gb Ethernet
Dual M.2 slots, PCIe 4.0
Dual HDMI, front USB 3.2 Gen 1 Type-C, Aura Sync

Technical Specifications

Socket	Intel LGA1700
Chipset	Intel B760
Supported Processors	12th, 13th, 14th Gen Intel Core
Memory	DDR5
Storage	2x M.2, PCIe 4.0
Networking	Wi-Fi 6, Realtek 2.5Gb Ethernet
Display	DisplayPort, dual HDMI
USB	Rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
Form Factor	Micro-ATX

Compatibility

Supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket. DDR5 memory only.

المواصفات الفنية

العلامة التجارية	ASUS
السلسلة	PRIME
الموديل	B760M-A WIFI
الشريحة	Intel B760
المقبس	Intel LGA1700
نوع الذاكرة	DDR5
دعم الذاكرة	4 x DIMM, Max. 192GB, DDR5 4800-7200+ MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP, OptiMem II
منافذ التوسعة	1 x PCIe 4.0 x16 slot (CPU); 1 x PCIe 4.0 x16 slot via chipset (x4 mode); 1 x PCIe 4.0 x16 slot via chipset (x1 mode)
التخزين	2 x M.2 slots (Key M, PCIe 4.0 x4, 2242/2260/2280); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet, plus Wi-Fi 6 (802.11ax) 2x2, Bluetooth 5.2
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors
منافذ USB	Rear (6 total): 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A. Front (10 total): 2 x USB 3.2 Gen 1 headers (4 ports), 1 x USB 3.2 Gen 1 Type-C connector, 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port)

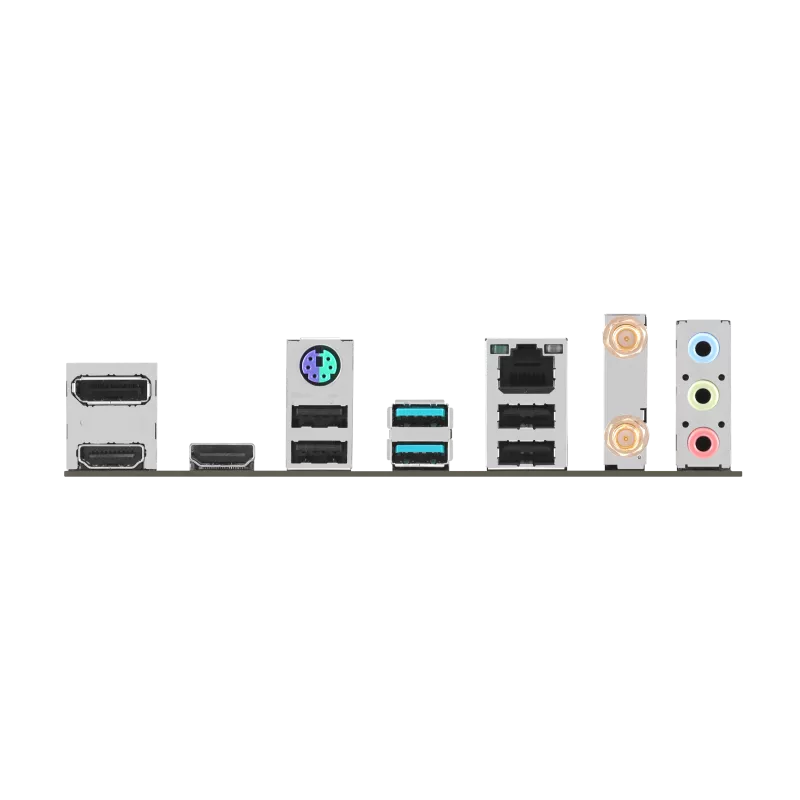

لوحة التوصيلات الخلفية	2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 2 x HDMI ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x PS/2 combo port
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 2 x USB 3.2 Gen 1 headers, 1 x USB 3.2 Gen 1 Type-C connector, 2 x USB 2.0 headers, 1 x USB 2.0 header, 3 x Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), LPT header, S/PDIF Out header, SPI TPM header, System Panel header with chassis intrude
البايوس	128 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), M.2 & VRM heatsinks, ProCool, Aura Sync RGB header
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit

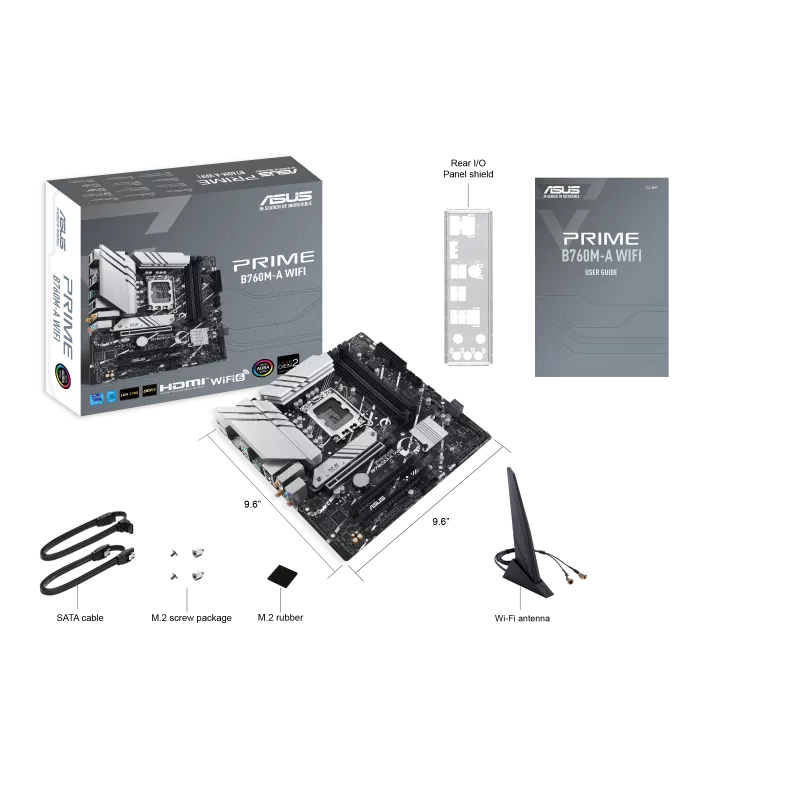

الملحقات	2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x User guide
الأبعاد	mATX Form Factor, 24.4 x 24.4 cm (9.6 x 9.6 inch)
