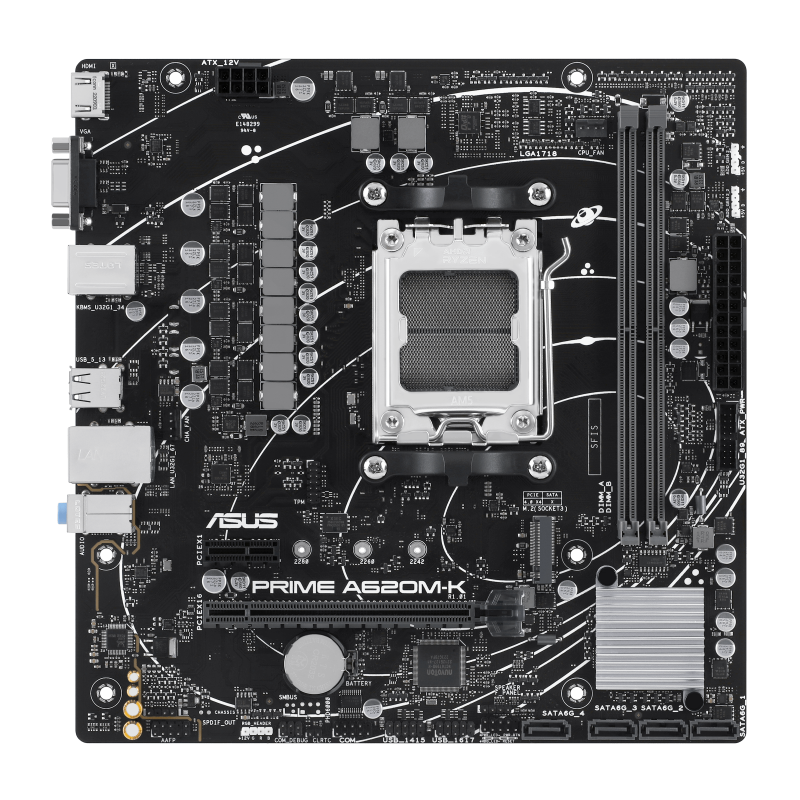

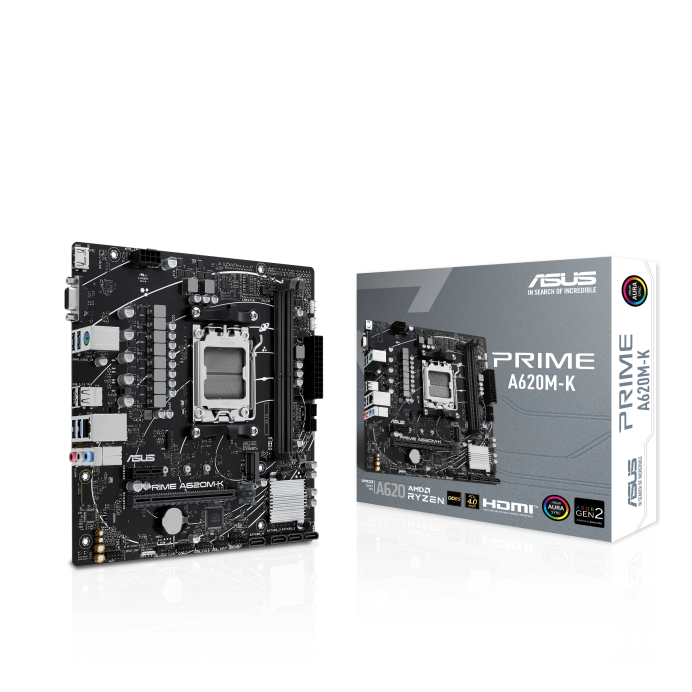

Name: Asus Prime A620M-K AMD DDR5
Brand: ASUS
Price: 4050.00 EGP
Availability: InStock

ملخص سريع

لوحة ASUS Prime A620M-K بمنفذ AM5.

الوصف الكامل

Quick Summary: Asus Prime A620M-K Micro-ATX motherboard for AMD Socket AM5, with DDR5 memory and PCIe 4.0.

Key Features

AMD Socket AM5, A620 chipset, up to 120W CPU
PCIe 4.0 graphics support
HDMI, VGA outputs
Two-Way AI Noise Cancelation, Aura Sync

Technical Specifications

Socket	AMD AM5
Chipset	AMD A620
Supported Processors	AMD Ryzen 9000/8000/7000 series, up to 120W
M.2 Slots	1x, PCIe 4.0 x4, 2242/2260/2280
SATA	4x SATA 6Gb/s
Rear USB	4x USB 3.2 Gen 1 (5Gbps) Type-A, 2x USB 2.0 Type-A
Display	HDMI, VGA
Form Factor	Micro-ATX

Compatibility

Supports AMD Ryzen 9000, 8000, and 7000 series processors (up to 120W) on the AM5 socket.

المواصفات الفنية

العلامة التجارية	ASUS
السلسلة	PRIME
الموديل	A620M-K
الشريحة	AMD A620
المقبس	AMD AM5
نوع الذاكرة	DDR5
دعم الذاكرة	2 x DIMM, Max. 96GB, DDR5 4800-7200+ MHz (OC), Non-ECC Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD EXPO
منافذ التوسعة	1 x PCIe 4.0 x16 slot (CPU, x16 mode, or x8/x4 mode for Ryzen 8000); 1 x PCIe 3.0 x1 slot via chipset
التخزين	1 x M.2 slot (Key M, PCIe 4.0 x4, 2242/2260/2280); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
كرت الشبكة	1 x Realtek 1Gb Ethernet
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors
منافذ USB	Rear (6 total): 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A. Front (6 total): 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
لوحة التوصيلات الخلفية	4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A, 1 x VGA port, 1 x HDMI port, 1 x Realtek 1Gb LAN port, 3 x Audio jacks, 1 x PS/2 combo port
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x M.2 slot, 4 x SATA 6Gb/s ports, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Addressable Gen 2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), S/PDIF Out header, Speaker header, SPI TPM header, System Panel header
البايوس	256 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), Aluminum heatsink design, Aura Sync RGB header
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit
الملحقات	2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x Screw package for M.2 SSD, 1 x User guide
الأبعاد	micro-ATX Form Factor, 22.6 x 22.1 cm (8.9 x 8.7 inch)
