| العلامة التجارية |

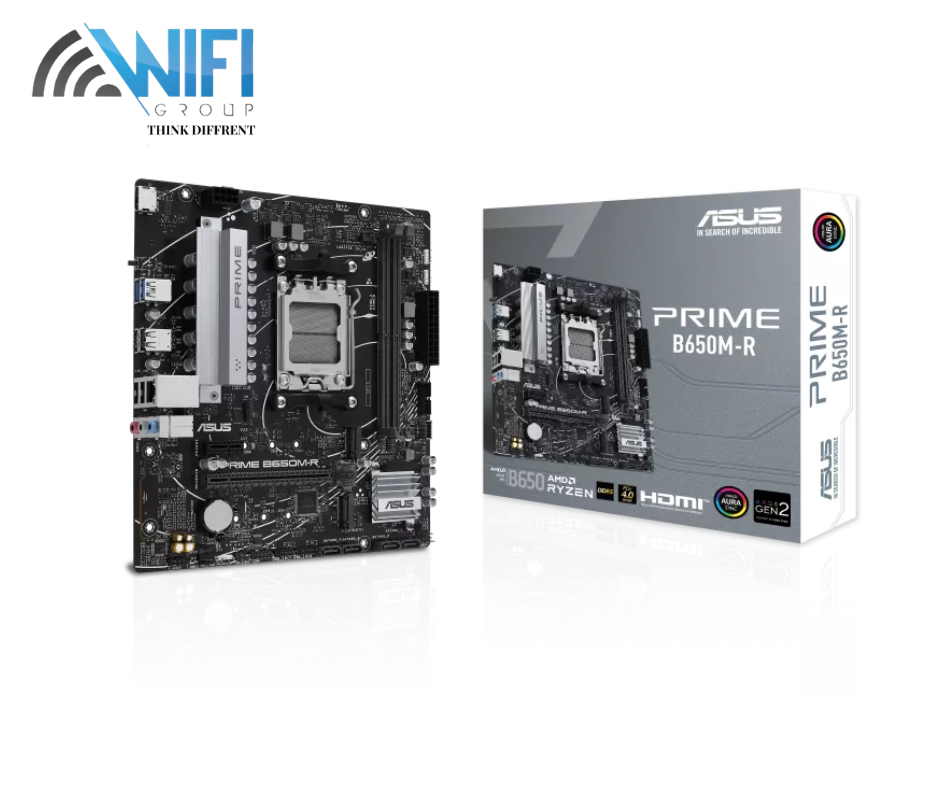

ASUS |
| السلسلة |
PRIME |
| الموديل |
B650M-R |
| الشريحة |
AMD B650 |
| المقبس |
AMD AM5 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
2 x DIMM slots, Max. 96GB, DDR5 4800-7200+ MHz (OC), Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem II, Non-ECC Un-buffered Memory |
| منافذ التوسعة |
1 x PCIe 4.0 x16 slot (CPU, Ryzen 9000/7000 series x16 mode, Ryzen 8000 series x8/x4 mode); 1 x PCIe 4.0 x1 slot via chipset |
| التخزين |
2 x M.2 slots (Key M, 2242/2260/2280, PCIe 4.0 x4); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 supports PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| كرت الشبكة |
1 x Realtek 2.5Gb Ethernet |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Shielding, Premium audio capacitors |
| منافذ USB |
Rear (6 total): 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A. Front (7 total): 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |
2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x HDMI port, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x BIOS FlashBack button |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), S/PDIF Out header, Speaker header, SPI TPM header, System Panel header |
| البايوس |
256 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), VRM heatsink design, BIOS FlashBack button and LED, Aura Sync |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x I/O Shield, 2 x M.2 Anchors, 1 x Quick start guide |
| الأبعاد |
micro-ATX Form Factor, 23.6 x 22.1 cm (9.3 x 8.7 inch) |
