Name: ASUS PRIME B650M-R AMD DDR5
Brand: ASUS
Price: 5149.00 EGP
Availability: InStock

ملخص سريع

لوحة ASUS PRIME B650M-R بمنفذ AM5.

الوصف الكامل

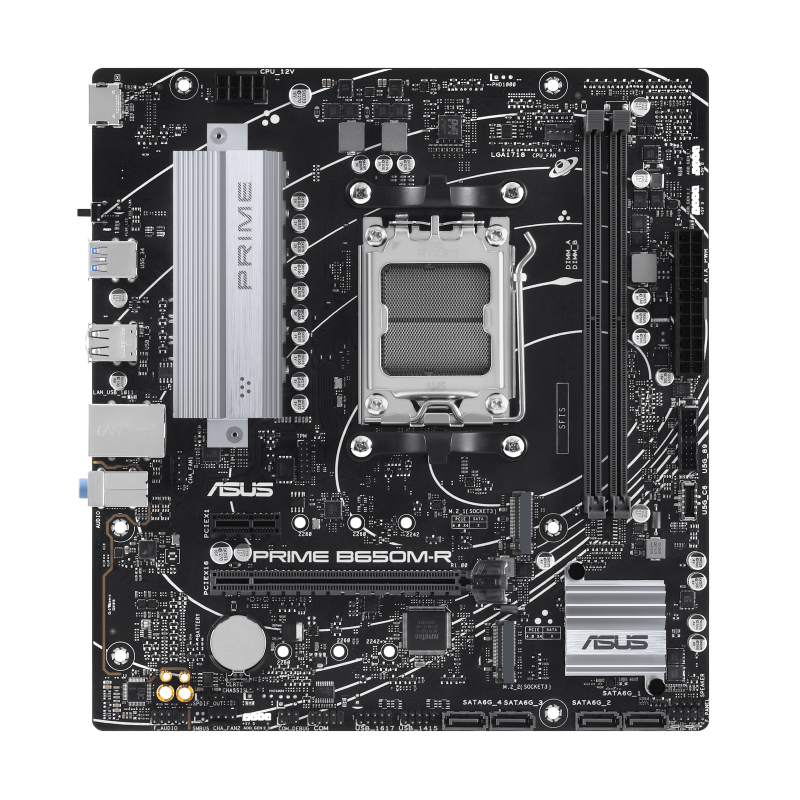

Quick Summary: ASUS PRIME B650M-R Micro-ATX motherboard for AMD Socket AM5, with dual M.2 storage and SATA support.

Key Features

AMD Socket AM5, B650 chipset
2x M.2 slots (PCIe 4.0 x4)
4x SATA 6Gb/s ports
Rear USB 5Gbps and USB 2.0

Technical Specifications

Socket	AMD AM5
Chipset	AMD B650
Supported Processors	AMD Ryzen 9000/8000/7000 series, up to 170W
M.2 Slots	2x, 2242/2260/2280, PCIe 4.0 x4
SATA	4x SATA 6Gb/s
Rear USB	2x USB 5Gbps Type-A, 4x USB 2.0 Type-A
Form Factor	Micro-ATX

Compatibility

Supports AMD Ryzen 9000, 8000, and 7000 series processors (up to 170W) on the AM5 socket.

المواصفات الفنية

العلامة التجارية	ASUS
السلسلة	PRIME
الموديل	B650M-R
الشريحة	AMD B650
المقبس	AMD AM5
نوع الذاكرة	DDR5
دعم الذاكرة	2 x DIMM slots, Max. 96GB, DDR5 4800-7200+ MHz (OC), Dual Channel Memory Architecture, Supports AMD EXPO, OptiMem II, Non-ECC Un-buffered Memory
منافذ التوسعة	1 x PCIe 4.0 x16 slot (CPU, Ryzen 9000/7000 series x16 mode, Ryzen 8000 series x8/x4 mode); 1 x PCIe 4.0 x1 slot via chipset
التخزين	2 x M.2 slots (Key M, 2242/2260/2280, PCIe 4.0 x4); 4 x SATA 6Gb/s ports; AMD RAIDXpert2 supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Shielding, Premium audio capacitors
منافذ USB	Rear (6 total): 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A. Front (7 total): 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
لوحة التوصيلات الخلفية	2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x HDMI port, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x BIOS FlashBack button
التوصيلات الداخلية	1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), S/PDIF Out header, Speaker header, SPI TPM header, System Panel header
البايوس	256 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), VRM heatsink design, BIOS FlashBack button and LED, Aura Sync
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit
الملحقات	2 x SATA 6Gb/s cables, 1 x I/O Shield, 2 x M.2 Anchors, 1 x Quick start guide
الأبعاد	micro-ATX Form Factor, 23.6 x 22.1 cm (9.3 x 8.7 inch)
