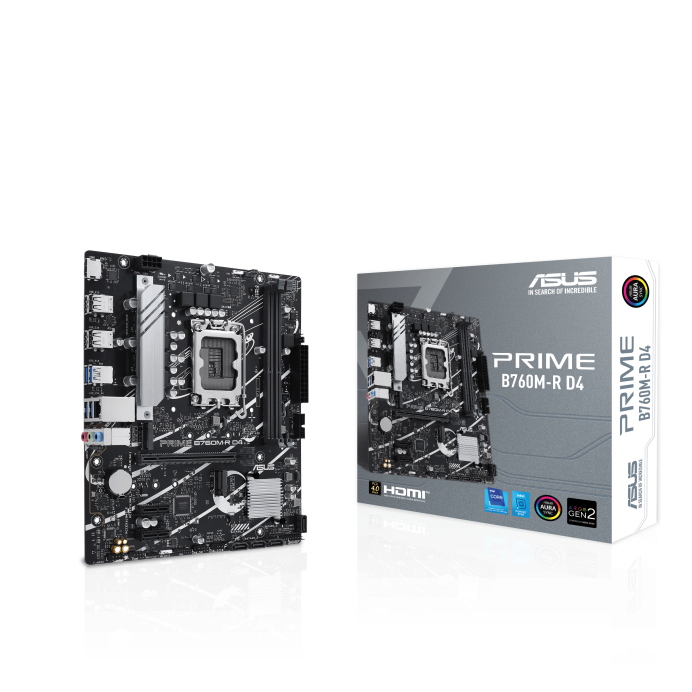

Name: ASUS PRIME B760M-R Intel DDR4
Brand: ASUS
SKU: 311
Price: 4700.00 EGP
Availability: OutOfStock

الوصف الكامل

Quick Summary: ASUS PRIME B760M-R D4 Micro-ATX motherboard for Intel LGA1700, with DDR4 memory and dual M.2 storage.

Key Features

Intel LGA1700 socket, B760 chipset
2x PCIe 4.0 M.2 slots
Realtek 2.5Gb Ethernet
Front USB 5Gbps support

Technical Specifications

Socket	Intel LGA1700
Chipset	Intel B760
Supported Processors	12th, 13th, 14th Gen Intel Core, Pentium Gold, Celeron
Memory	2x DIMM, DDR4
M.2 Slots	2x, PCIe 4.0
SATA	4x SATA 6Gb/s
Rear USB	4x USB 5Gbps Type-A, 4x USB 2.0
Front USB	1x USB 5Gbps header, 2x USB 2.0 headers
Networking	Realtek 2.5Gb Ethernet
Form Factor	Micro-ATX

Compatibility

Supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket. DDR4 memory only.

المواصفات الفنية

السلسلة	PRIME
الموديل	B760M-R D4
الشريحة	Intel B760
المقبس	Intel LGA1700
نوع الذاكرة	DDR4
دعم الذاكرة	2 x DIMM, Max. 64GB, DDR4 2133-5333 MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP
منافذ التوسعة	1 x PCIe 4.0 x16 slot (CPU); 2 x PCIe 4.0 x1 slots via chipset
التخزين	2 x M.2 slots (Key M, PCIe 4.0 x4, 2242/2260/2280); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors
منافذ USB	Rear (8 total): 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A. Front (6 total): 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
لوحة التوصيلات الخلفية	4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x HDMI port, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks
التوصيلات الداخلية	1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 2 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Clear CMOS header, COM Port header, Front panel audio header (F_AUDIO), S/PDIF Out header, Speaker header, SPI TPM header, System Panel header
البايوس	128 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-steel back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ProCool, VRM heatsink design, Aura Sync
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit
الملحقات	2 x SATA 6Gb/s cables, 1 x I/O shield, 2 x M.2 anchors, 1 x Quick start guide
الأبعاد	micro-ATX Form Factor, 24.4 x 21.1 cm (9.6 x 8.3 inch)
