| السلسلة |
PRIME |
| الموديل |

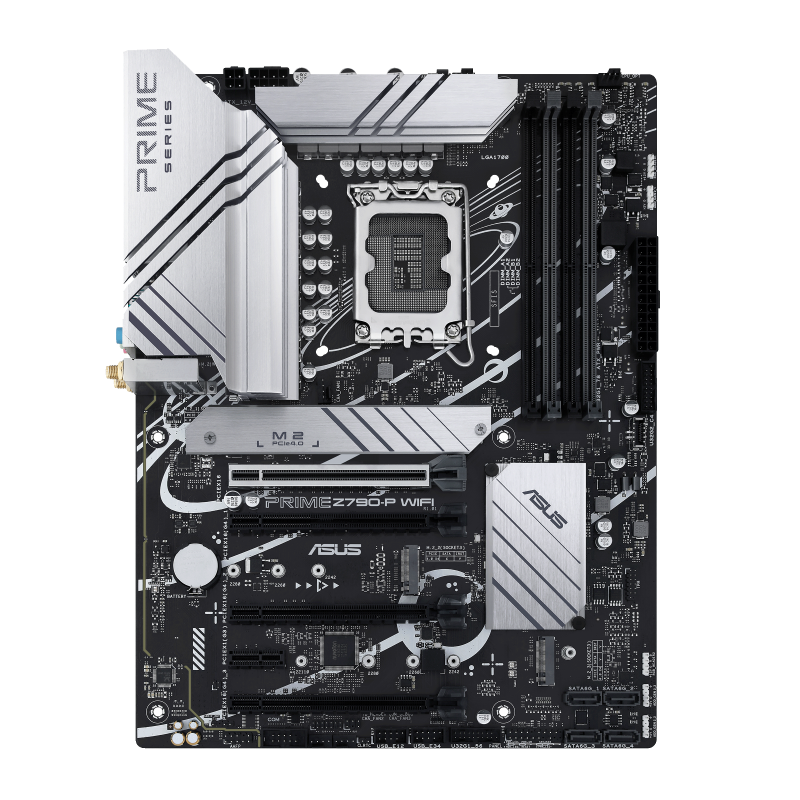

Z790-P WIFI |
| الشريحة |
Intel Z790 |
| المقبس |
Intel LGA1700 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 192GB, DDR5 4800-7200+ MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP, OptiMem II |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU); 3 x PCIe 4.0 x16 slots via chipset (x4 mode); 1 x PCIe 3.0 x1 slot |
| التخزين |
3 x M.2 slots (M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4 & SATA); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Realtek 2.5Gb Ethernet, plus Wi-Fi 6 (802.11ax) 2x2, Bluetooth 5.2 |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors |
| منافذ USB |
Rear (8 total): 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A. Front (9 total): 1 x USB 3.2 Gen 2 Type-C connector, 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x PS/2 combo port |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 2 Type-C connector, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), S/PDIF Out header, SPI TPM header, System Panel header, Thunderbolt (USB4) header |
| البايوس |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM with DrMOS, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-Slot, Q-LED Core), flexible M.2 & VRM heatsinks, ProCool, Aura Sync RGB headers |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD, 1 x User guide |
| الأبعاد |
ATX Form Factor, 30.5 x 23.4 cm (12 x 9.2 inch) |
