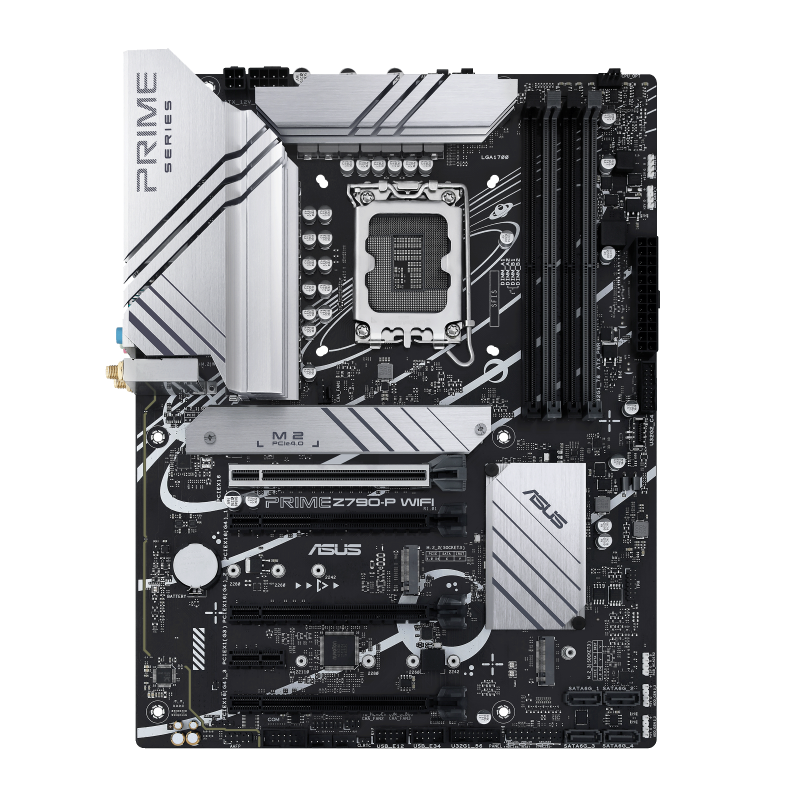

Name: ASUS Prime Z790-P WiFi Intel DDR5
Brand: ASUS
SKU: 40
Price: 11500.00 EGP
Availability: OutOfStock

ASUS Prime Z790-P WiFi Intel DDR5

LE 11,500.00

ASUS Prime Z790-P WiFi Intel DDR5

LE 11,500.00

✔ ضمان حتى 3 سنوات✔ منتجات أصلية✔ تقسيط متاح

الوصف الكامل

Quick Summary: ASUS Prime Z790-P WiFi ATX motherboard for Intel LGA1700, with PCIe 5.0, Wi-Fi 6, and Thunderbolt (USB4) support.

Key Features

Intel LGA1700 socket, Z790 chipset, 14+1 DrMOS
PCIe 5.0 x16, 3x M.2 slots
Intel Wi-Fi 6, Realtek 2.5Gb LAN
USB 3.2 Gen 2x2 Type-C, Thunderbolt (USB4) support

Technical Specifications

Socket	Intel LGA1700
Chipset	Intel Z790
Supported Processors	12th, 13th, 14th Gen Intel Core, Pentium Gold, Celeron
Power Design	14+1 DrMOS
PCIe Slots	1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x1
M.2 Slots	3x (M.2_1/M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4 & SATA)
SATA	4x SATA 6Gb/s
USB	1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
Networking	Intel Wi-Fi 6, Realtek 2.5Gb Ethernet
Audio	Realtek 7.1 Surround Sound HD Audio, 24-bit/192kHz
Form Factor	ATX

Compatibility

Supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket.

المواصفات الفنية

السلسلة	PRIME
الموديل	Z790-P WIFI
الشريحة	Intel Z790
المقبس	Intel LGA1700
نوع الذاكرة	DDR5
دعم الذاكرة	4 x DIMM, Max. 192GB, DDR5 4800-7200+ MHz (OC), Non-ECC Un-buffered Memory, Dual Channel, Supports Intel XMP, OptiMem II
منافذ التوسعة	1 x PCIe 5.0 x16 slot (CPU); 3 x PCIe 4.0 x16 slots via chipset (x4 mode); 1 x PCIe 3.0 x1 slot
التخزين	3 x M.2 slots (M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4 & SATA); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet, plus Wi-Fi 6 (802.11ax) 2x2, Bluetooth 5.2
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors
منافذ USB	Rear (8 total): 1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A. Front (9 total): 1 x USB 3.2 Gen 2 Type-C connector, 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports)
لوحة التوصيلات الخلفية	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x PS/2 combo port
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 3.2 Gen 2 Type-C connector, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, Clear CMOS header, COM Port header, Front Panel Audio header (AAFP), S/PDIF Out header, SPI TPM header, System Panel header, Thunderbolt (USB4) header
البايوس	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM with DrMOS, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-Slot, Q-LED Core), flexible M.2 & VRM heatsinks, ProCool, Aura Sync RGB headers
أنظمة التشغيل المدعومة	Windows 11, Windows 10 64-bit
الملحقات	2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD, 1 x User guide
الأبعاد	ATX Form Factor, 30.5 x 23.4 cm (12 x 9.2 inch)
