Name: Asus Prime Z890-P WIFI Motherboard
Brand: ASUS
Price: 12499.00 EGP
Availability: InStock

ملخص سريع

لوحة Asus Prime Z890-P WIFI بمنفذ LGA1851.

الوصف الكامل

Quick Summary: Asus Prime Z890-P WIFI ATX motherboard for Intel LGA1851, with Thunderbolt 4, Wi-Fi 7, and four M.2 slots.

Key Features

Intel LGA1851 socket, Z890 chipset
14+1+2+1 80A DrMOS power stages
4x M.2 slots (1x PCIe 5.0 x4, 3x PCIe 4.0 x4)
Wi-Fi 7, Realtek 2.5Gb Ethernet, Thunderbolt 4

Technical Specifications

Socket	Intel LGA1851
Chipset	Intel Z890
Supported Processors	Intel Core Ultra Processors (Series 2)
Power Delivery	14+1+2+1 80A DrMOS
PCIe Slots	1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x16 (x1 mode)
M.2 Slots	4x (1x PCIe 5.0 x4 128Gbps, 3x PCIe 4.0 x4 64Gbps)
Networking	Wi-Fi 7, Realtek 2.5Gb Ethernet
Connectivity	Thunderbolt 4 Type-C
Display	DisplayPort, HDMI
Form Factor	ATX

Compatibility

Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket.

المواصفات الفنية

العلامة التجارية	ASUS
السلسلة	PRIME
الموديل	Z890-P WIFI
الشريحة	Intel Z890
المقبس	Intel LGA1851
نوع الذاكرة	DDR5
دعم الذاكرة	4 x DIMM, Max. 256GB, DDR5 up to 8666+ MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM) support, Dual Channel, Intel XMP, ASUS Enhanced Memory Profile III (AEMP III)
منافذ التوسعة	1 x PCIe 5.0 x16 slot (CPU); 2 x PCIe 4.0 x16 slots via chipset (x4 mode); 1 x PCIe 4.0 x16 slot via chipset (x1 mode)
التخزين	4 x M.2 slots (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4, M.2_3 PCIe 4.0 x4, M.2_4 PCIe 4.0 x4 & SATA); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10
كرت الشبكة	1 x Realtek 2.5Gb Ethernet with ASUS LANGuard, plus Wi-Fi 7 (802.11be) 2x2 up to 2.9Gbps, Bluetooth 5.4
الصوت	Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Audio Shielding, premium audio capacitors
منافذ USB	Rear (8 total): 1 x Thunderbolt 4 Type-C, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A. Front (9 total): 1 x USB 10Gbps Type-C connector, 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports)

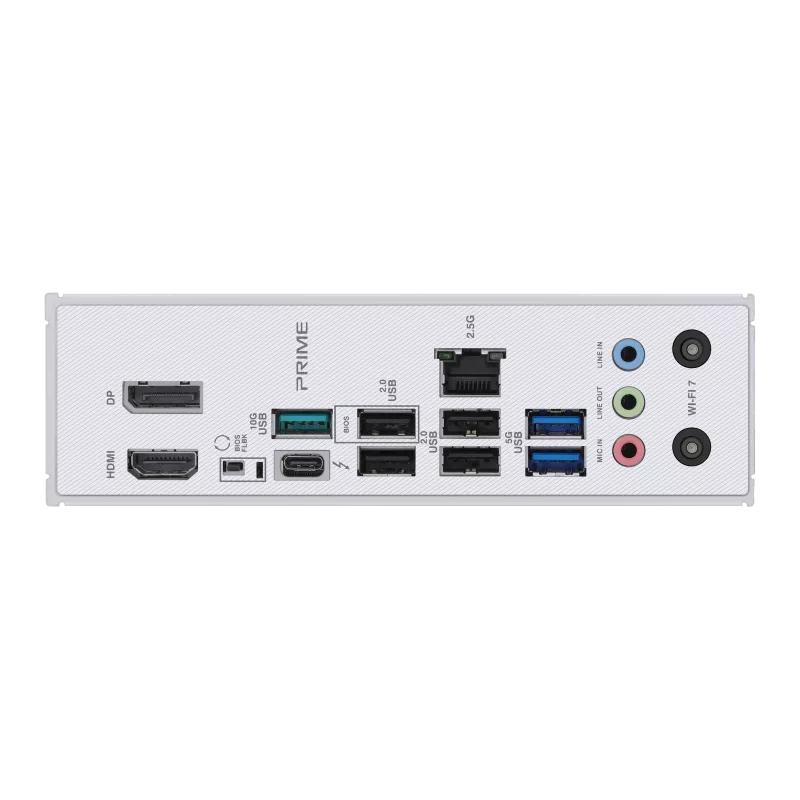

لوحة التوصيلات الخلفية	1 x Thunderbolt 4 Type-C, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 2.5Gb LAN port, 3 x Audio jacks, 1 x BIOS FlashBack button
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 2 x 8-pin +12V CPU, 4 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 10Gbps Type-C connector, 2 x USB 5Gbps headers, 2 x USB 2.0 headers, 3 x Addressable Gen2 headers, Aura RGB header, Clear CMOS header, COM Port header, Front Panel Audio header (F_AUDIO), S/PDIF Out header, SPI TPM header, Front Panel System header, Thunderbolt (USB4) header
البايوس	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	ASUS 5X Protection III (DIGI+ VRM with DrMOS, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O), Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot), M.2 & VRM heatsinks, BIOS FlashBack, ProCool, pre-mounted I/O shield, Aura Sync RGB header
أنظمة التشغيل المدعومة	Windows 11 (22H2 and later)

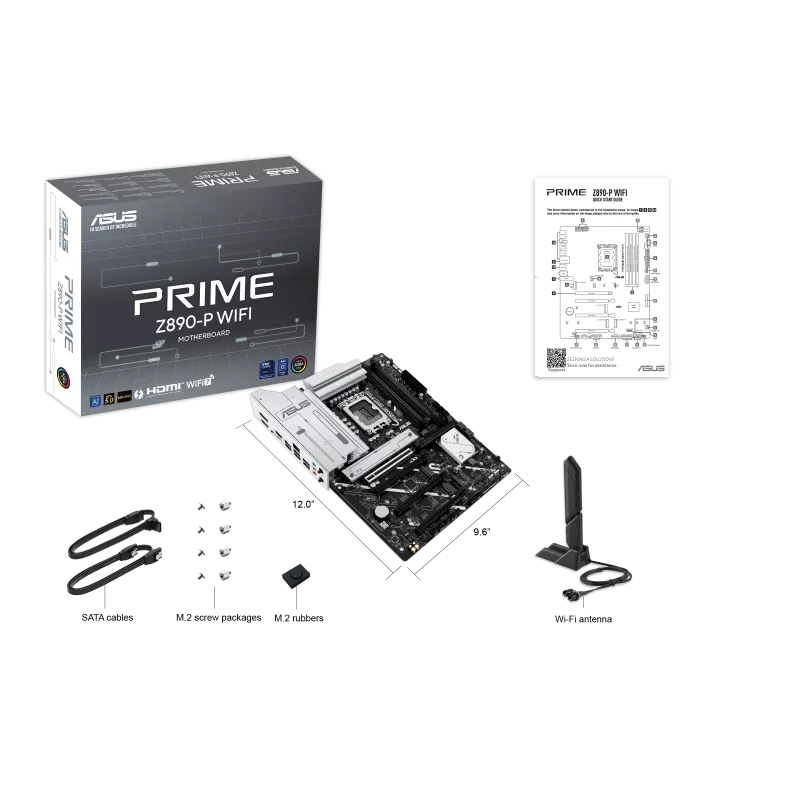

الملحقات	2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide
الأبعاد	ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch)
