| السلسلة |
ProArt |
| الموديل |

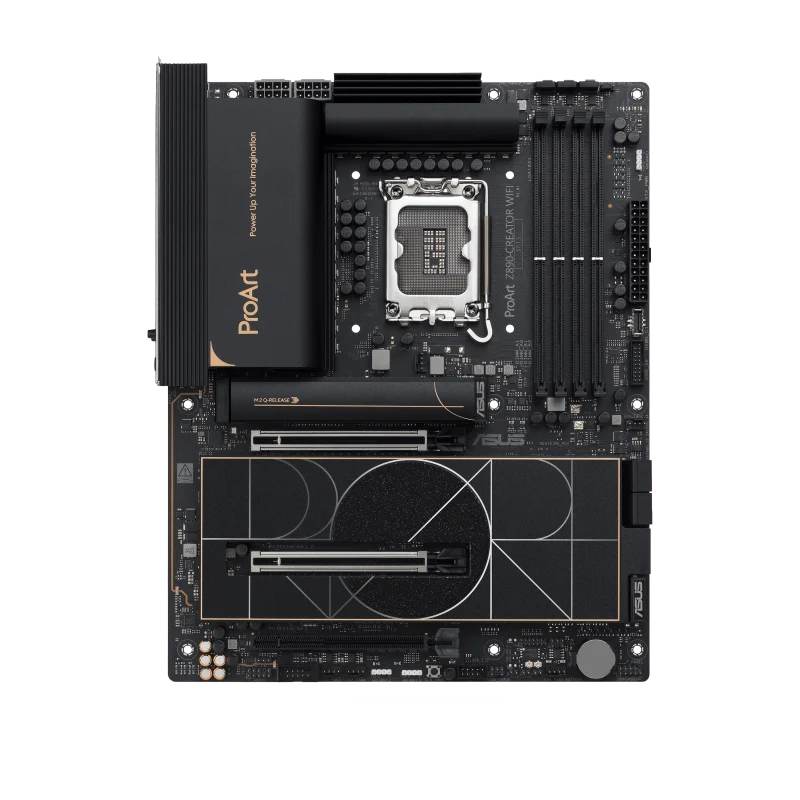

Z890-Creator WiFi |
| الشريحة |
Intel Z890 |
| المقبس |
Intel LGA1851 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 256GB, DDR5 up to 9066+ MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM) support, Dual Channel, Intel XMP, ASUS Enhanced Memory Profile III (AEMP III), DIMM Fit, DIMM Flex |
| منافذ التوسعة |
2 x PCIe 5.0 x16 slots (CPU, x16 or x8/x8 modes); 1 x PCIe 4.0 x16 slot via chipset (x4 mode) |
| التخزين |
5 x M.2 slots (M.2_1 PCIe 5.0 x4, M.2_2/3/4 PCIe 4.0 x4, M.2_5 PCIe 4.0 x4 & SATA); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Marvell AQtion 10Gb Ethernet + 1 x Intel 2.5Gb Ethernet with ASUS LANGuard, plus Wi-Fi 7 (802.11be) 2x2 up to 5.8Gbps, Bluetooth 5.4 |
| الصوت |
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC, up to 32-Bit/192kHz playback, 120dB SNR playback / 113dB SNR recording, internal amplifier, gold-plated audio jacks |
| منافذ USB |
Rear (10 total): 2 x Thunderbolt 5 Type-C, 1 x USB4/Thunderbolt Type-C, 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A. Front (5 total): 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| لوحة التوصيلات الخلفية |
2 x Thunderbolt 5 Type-C, 1 x USB4/Thunderbolt Type-C, 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A, 1 x DisplayPort (input only), 1 x HDMI, 1 x Wi-Fi module, 1 x Marvell 10Gb LAN, 1 x Intel 2.5Gb LAN, 2 x gold-plated audio jacks, 1 x BIOS FlashBack button |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 5 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 2 x 8-pin +12V CPU, 5 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 20Gbps Type-C connector, 1 x USB 5Gbps header, 1 x USB 2.0 header, 3 x Addressable Gen2 headers, Clear CMOS button, COM Port header, CPU Over voltage jumper, Chassis Intrusion header, Front Panel Audio header (F_AUDIO), SPI TPM header, Front System Panel header, Thermal Sensor header |
| البايوس |
256 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS 5X Protection III (DIGI+ VRM with DrMOS, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O), Q-Design (M.2 Q-Latch/Q-Release/Q-Slide, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED), M.2 & VRM heatsinks with backplate, BIOS FlashBack, ProCool II, pre-mounted I/O shield, SafeDIMM, Aura Sync, 24/7 reliability, overcurrent protection |
| أنظمة التشغيل المدعومة |
Windows 11 (22H2 and later) |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 2 x M.2 Q-Latch packages, 2 x M.2 rubber packages, 1 x ProArt accessory bag, 1 x ACC Express activation key card, 1 x Quick start guide |
| الأبعاد |
ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch) |
