| العلامة التجارية |
ASUS |
| السلسلة |
ROG Maximus |
| الموديل |
Z890 Hero |
| الشريحة |
Intel Z890 |
| المقبس |
Intel LGA1851 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 256GB, DDR5 up to 9200+ MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM) support, Dual Channel, Intel XMP, NitroPath DRAM Technology, DIMM Flex, ASUS Enhanced Memory Profile III (AEMP III) |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU, supports x16 or x8/x4/x4 modes); 1 x PCIe 4.0 x16 slot via chipset (x4 mode); 1 x PCIe 4.0 x1 slot |
| التخزين |
Up to 6 x M.2 slots + 1 x SlimSAS connector + 4 x SATA 6Gb/s ports. M.2_1 PCIe 5.0 x4 (2242/2260/2280/22110), M.2_2 PCIe 4.0 x4, M.2_3 & M.2_4 PCIe 5.0 x4 (CPU), M.2_5 & M.2_6 PCIe 4.0 x4 (chipset). Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Intel 2.5Gb Ethernet + 1 x Realtek 5Gb Ethernet with ASUS LANGuard, plus Wi-Fi 7 (802.11be) 2x2 up to 5.8Gbps, Bluetooth 5.4 |
| الصوت |
ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4082, ESS ES9219 QUAD DAC, up to 32-Bit/384kHz playback, 120dB SNR playback / 110dB SNR recording, gold-plated audio jacks, SupremeFX Shielding, rear optical S/PDIF out |
| منافذ USB |
Rear (11 total): 2 x Thunderbolt 4 Type-C, 5 x USB 10Gbps (4x Type-A + 1x Type-C), 4 x USB 5Gbps Type-A. Front (10 total): 1 x USB 20Gbps Type-C (60W PD/QC4+), 1 x USB 10Gbps Type-C, 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| لوحة التوصيلات الخلفية |

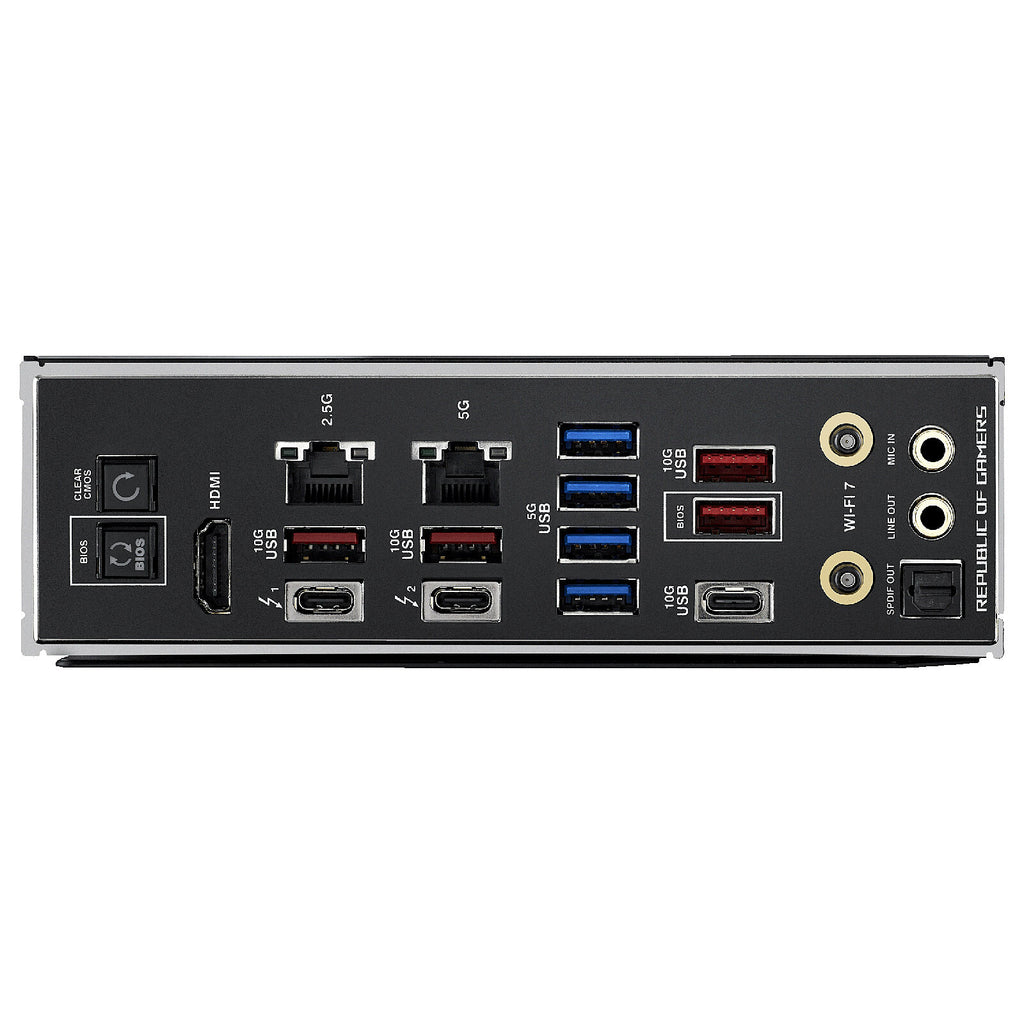

2 x Thunderbolt 4 Type-C, 5 x USB 10Gbps, 4 x USB 5Gbps, 1 x HDMI, 1 x Wi-Fi module, 1 x Intel 2.5Gb LAN, 1 x Realtek 5Gb LAN, 2 x gold-plated audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan, 1 x W_PUMP+ header, 1 x 24-pin Main Power, 2 x 8-pin +12V CPU, 1 x 8-pin PCIe Power, 6 x M.2 slots, 4 x SATA 6Gb/s, 1 x SlimSAS, 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-C, 2 x USB 5Gbps headers, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, PCIe mode switch, FlexKey/ReTry/Start buttons, Front Panel Audio header, System Panel header, Thermal Sensor header, Thunderbolt (USB4) header |
| البايوس |
256 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
Extreme OC Kit (FlexKey, ReTry, Start buttons), Extreme Engine Digi+ (10K black metallic capacitors, MicroFine alloy choke), ASUS Q-Design (M.2 Q-Latch/Q-Release/Q-Slide, Q-Release Slim, Q-Antenna, Q-Code, Q-Connector, Q-Dashboard, Q-LED, Q-Slot), M.2 & VRM heatsinks with backplate, ProCool II, pre-mounted I/O shield, SafeSlot, SafeDIMM, Aura Sync, ROG M.2 PowerBoost |
| أنظمة التشغيل المدعومة |
Windows 11 (22H2 and later) |
| الملحقات |
1 x ARGB RGB extension cable, 4 x SATA 6Gb/s cables, 1 x DDR5 fan holder, 1 x thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, M.2 Q-Latch/Q-Slide packages, ROG stickers, ROG thank you card, ROG bottle opener, USB drive with utilities, quick start guide |
| الأبعاد |
ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch) |
