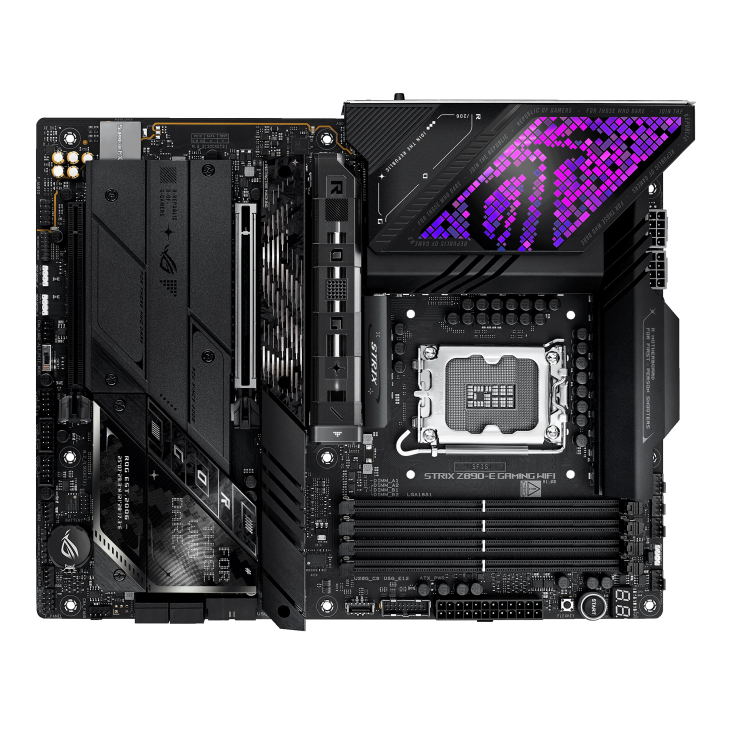

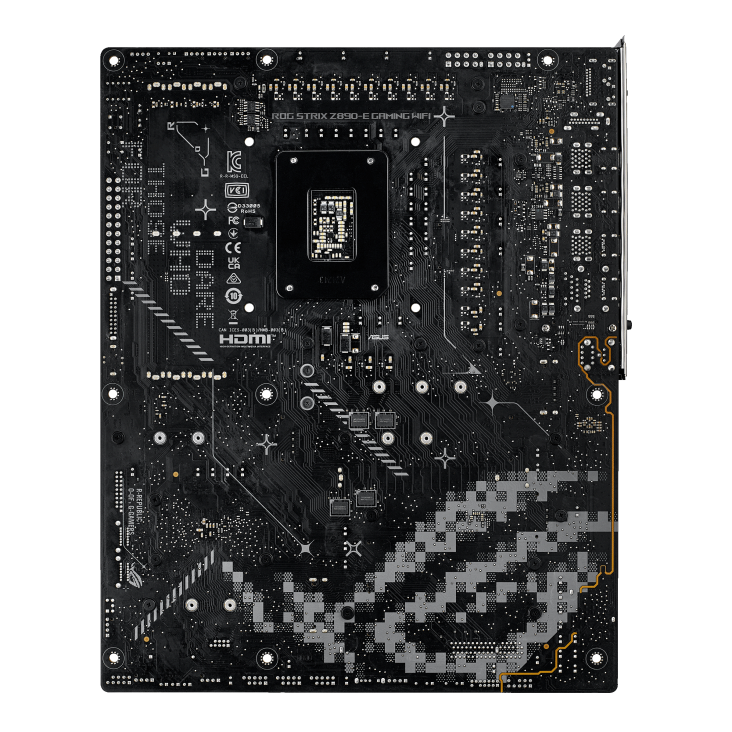

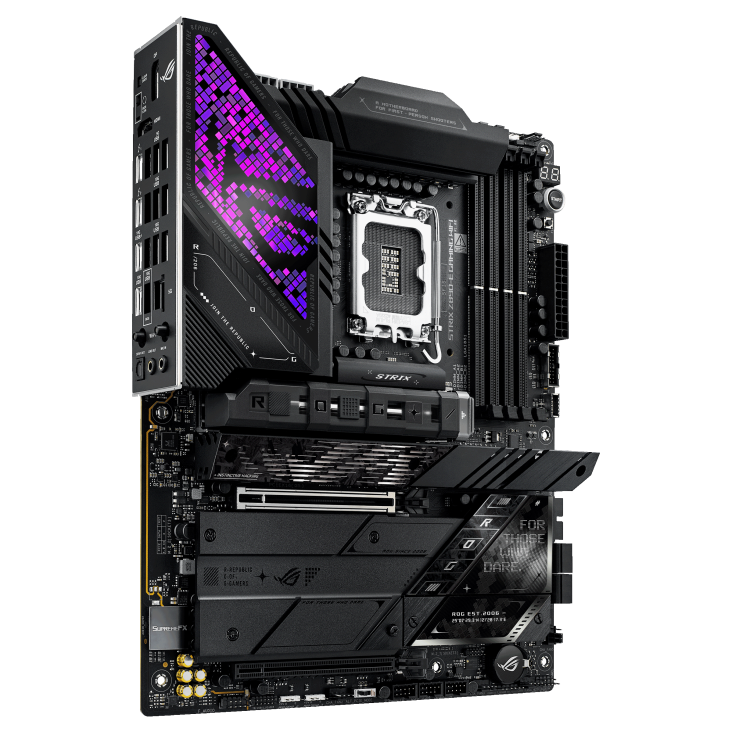

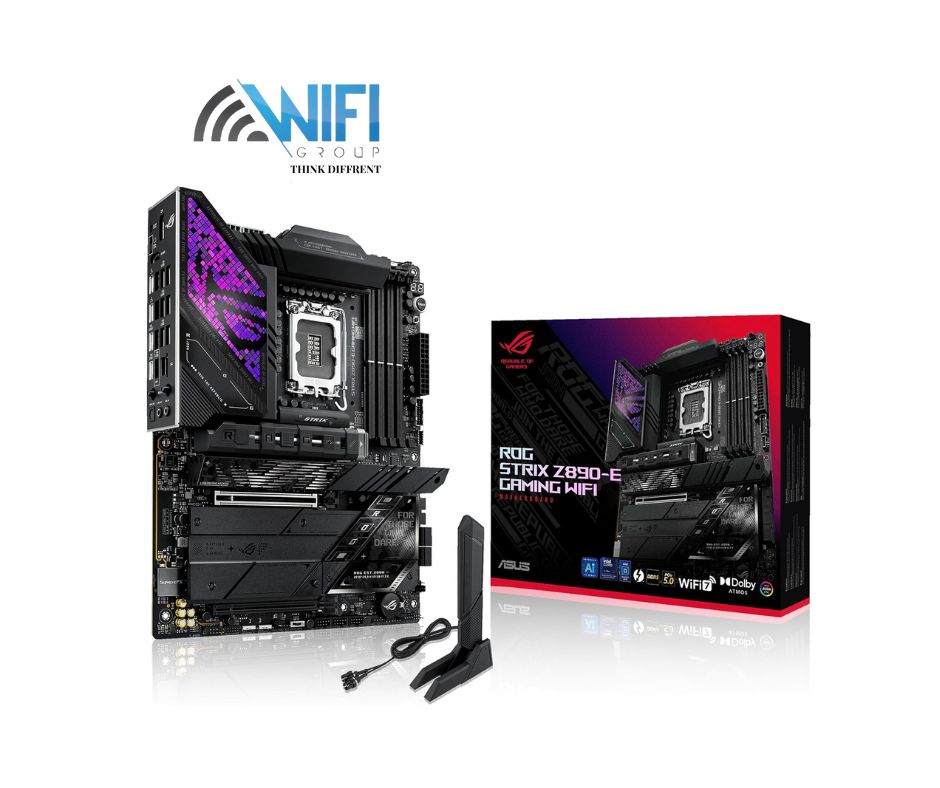

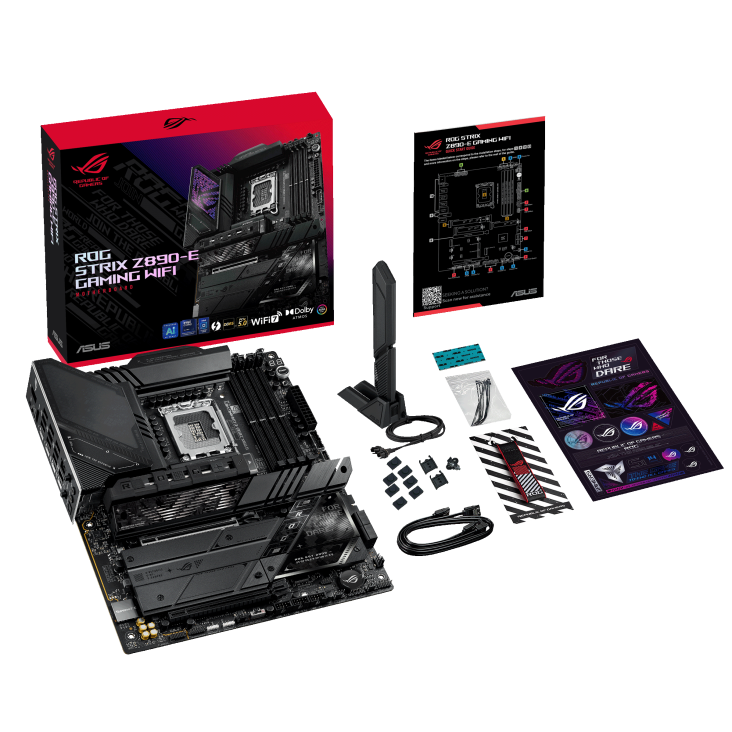

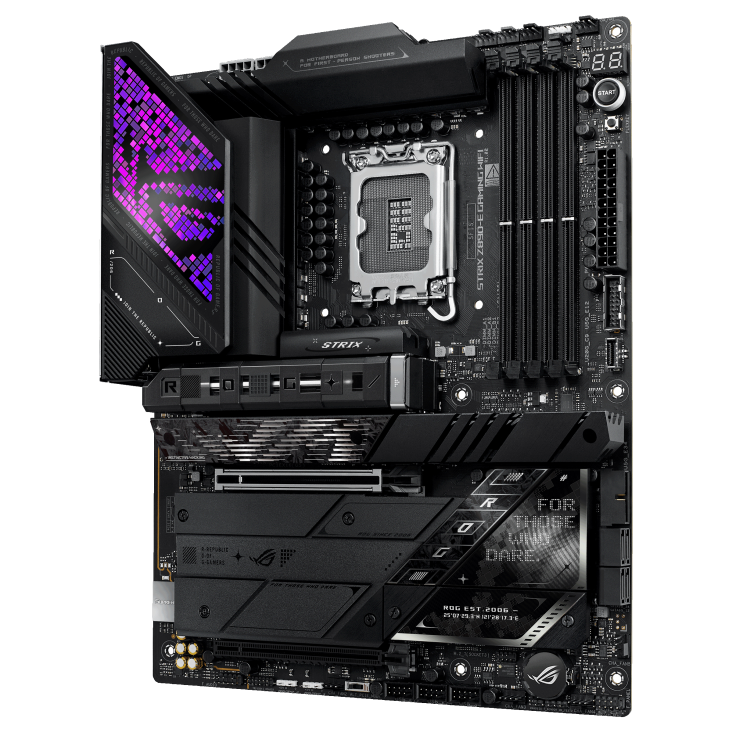

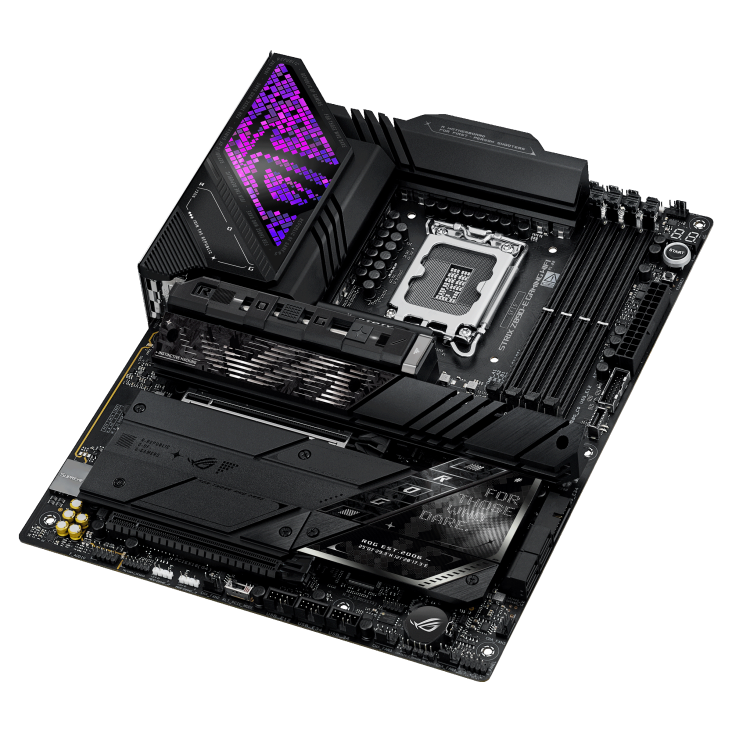

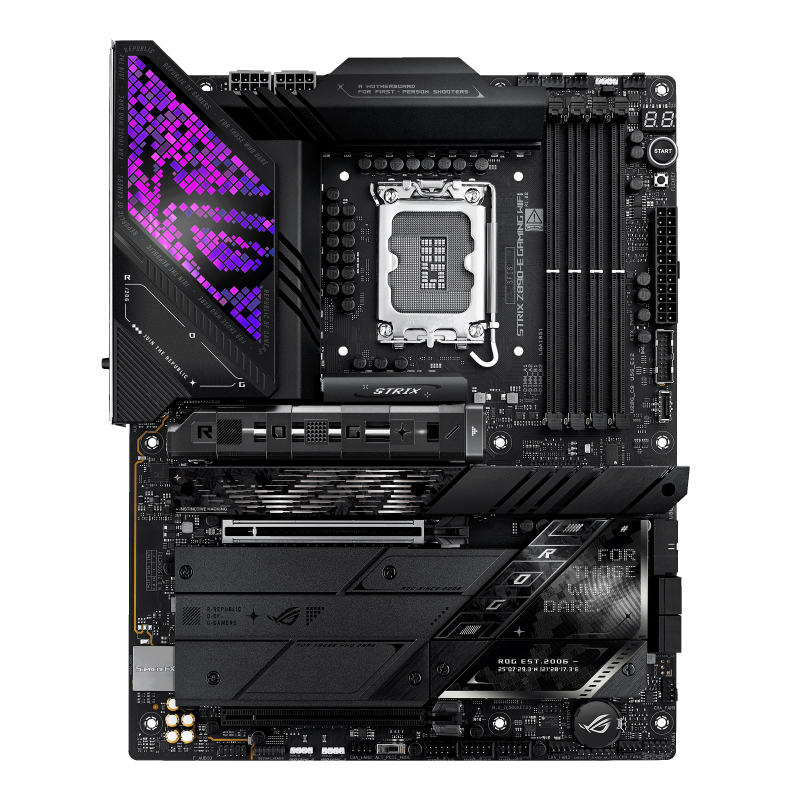

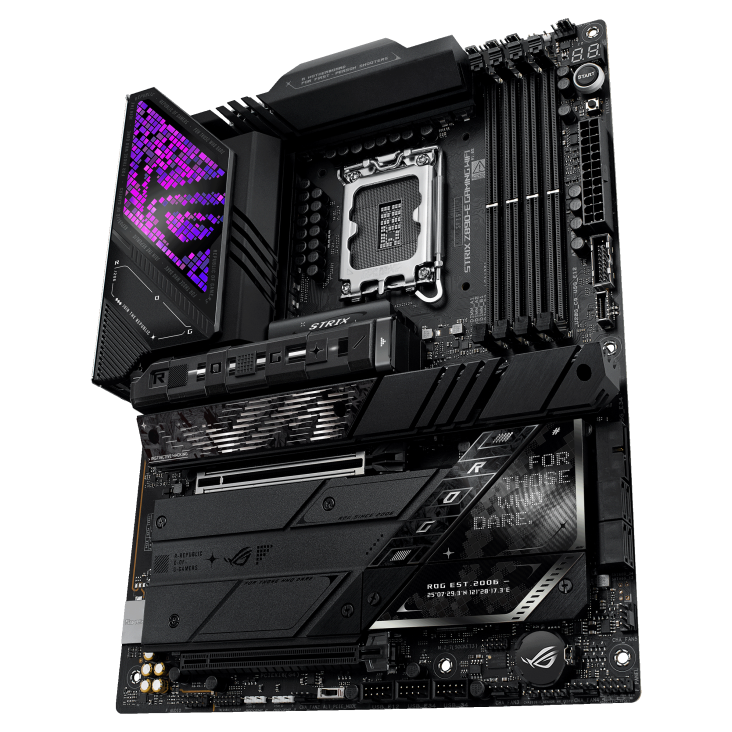

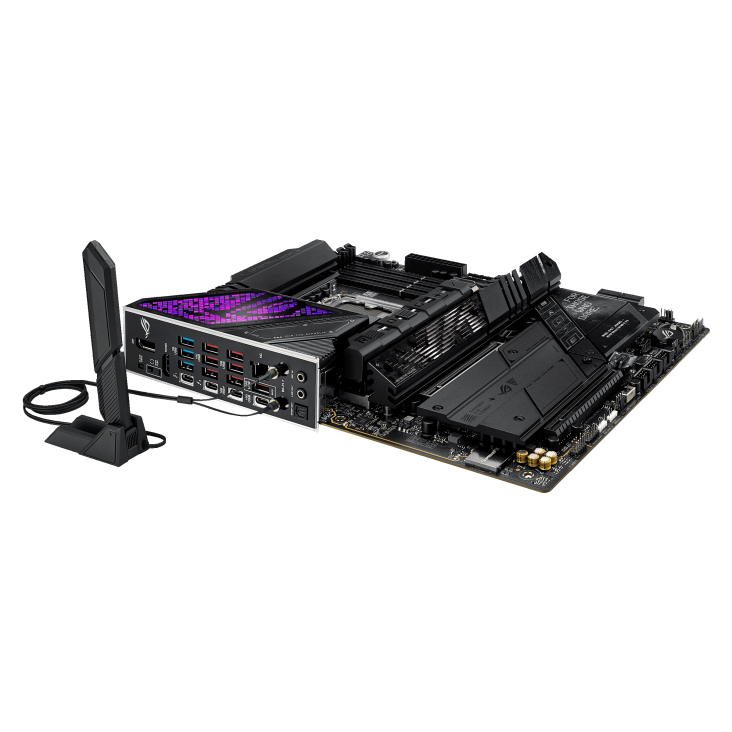

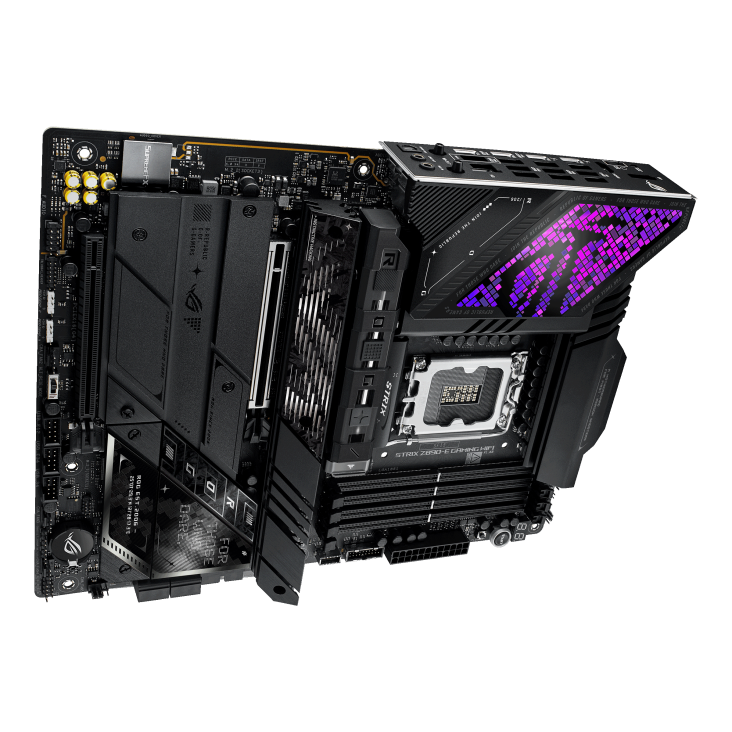

Name: ASUS ROG Strix Z890-E Gaming WiFi Intel DDR5
Brand: ASUS
Price: 26999.00 EGP
Availability: InStock

ملخص سريع

لوحة ASUS ROG Strix Z890-E Gaming WiFi بمنفذ LGA1851.

الوصف الكامل

Quick Summary: ASUS ROG Strix Z890-E Gaming WiFi ATX motherboard for Intel LGA1851, with dual Thunderbolt 4, Wi-Fi 7, and 7 M.2 slots.

Key Features

Intel LGA1851 socket, Z890 chipset
7x M.2 slots including 3x PCIe 5.0 NVMe
2x Thunderbolt 4 ports (one with 30W PD fast-charge)
Wi-Fi 7 (up to 4.8x faster than Wi-Fi 6)

Technical Specifications

Socket	Intel LGA1851
Chipset	Intel Z890
Supported Processors	Intel Core Ultra Processors (Series 2)
Power Delivery	18+1+2+2 power stages
Memory	DDR5 with NitroPath DRAM Technology
M.2 Slots	7 total, 3x PCIe 5.0 NVMe
USB	2x Thunderbolt 4 Type-C, 9x USB 10Gbps (7 Type-A + 2 Type-C), 3x USB 5Gbps
Networking	Wi-Fi 7
Form Factor	ATX

Compatibility

Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket.

المواصفات الفنية

العلامة التجارية	ASUS
السلسلة	ROG Strix
الموديل	Z890-E Gaming WiFi
الشريحة	Intel Z890
المقبس	Intel LGA1851
نوع الذاكرة	DDR5
دعم الذاكرة	4 x DIMM, Max. 256GB, DDR5 up to 9200+ MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM) support, Dual Channel, Intel XMP, DIMM Flex, NitroPath DRAM Technology, ASUS Enhanced Memory Profile III (AEMP III)
منافذ التوسعة	1 x PCIe 5.0 x16 slot (CPU, supports x16 or x8/x4/x4 modes); 1 x PCIe 4.0 x16 slot via chipset (x4 mode)
التخزين	7 x M.2 slots + 4 x SATA 6Gb/s ports. M.2_1 PCIe 5.0 x4 (2242/2260/2280/22110), M.2_2 PCIe 4.0 x4, M.2_3 & M.2_4 PCIe 5.0 x4, M.2_5 & M.2_6 PCIe 4.0 x4, M.2_7 PCIe 4.0 x4 & SATA. Intel Rapid Storage Technology supports PCIe/SATA RAID 0/1/5/10
كرت الشبكة	1 x Realtek 5Gb Ethernet with ASUS LANGuard, plus Wi-Fi 7 and Thunderbolt 4
الصوت	ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4080, Savitech SV3H712 AMP, up to 32-Bit/384kHz playback, 120dB SNR playback / 110dB SNR recording, gold-plated audio jacks, rear optical S/PDIF out, Audio Shielding
منافذ USB	Rear (14 total): 2 x Thunderbolt 4 Type-C, 9 x USB 10Gbps (7x Type-A + 2x Type-C, one with 30W PD), 3 x USB 5Gbps Type-A. Front (11 total): 1 x USB 20Gbps Type-C, 2 x USB 5Gbps headers (4 ports), 3 x USB 2.0 headers (6 ports)

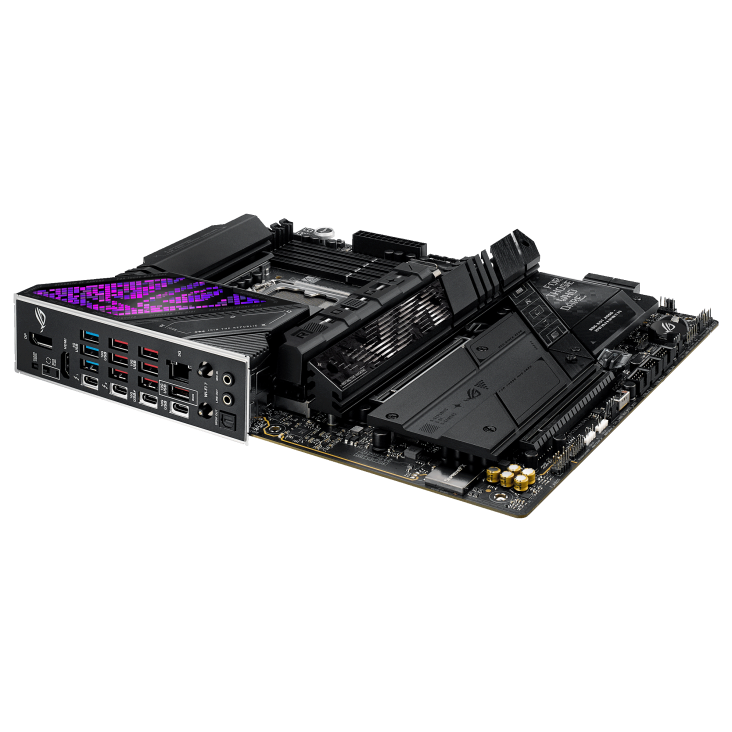

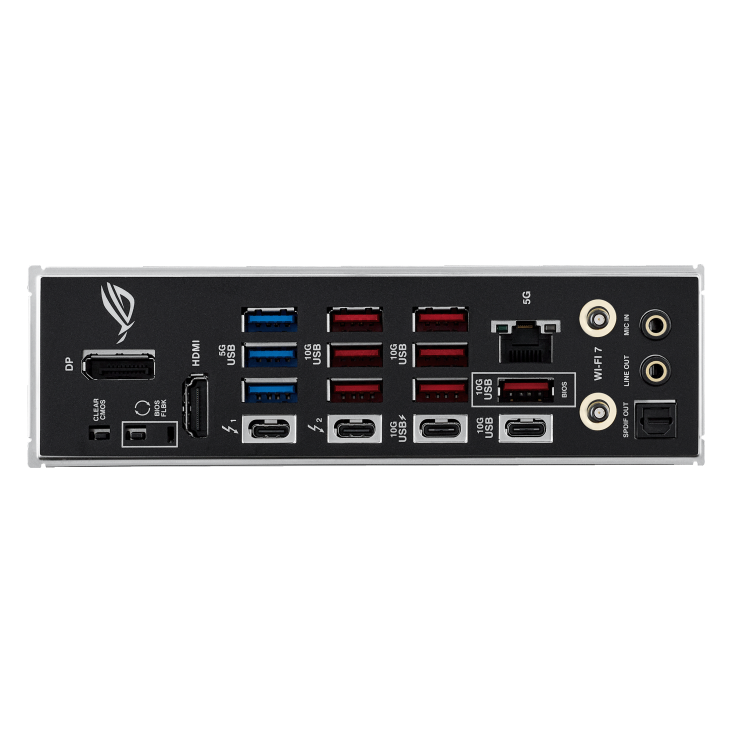

لوحة التوصيلات الخلفية	2 x Thunderbolt 4 Type-C, 9 x USB 10Gbps, 3 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Realtek 5Gb LAN, 2 x gold-plated audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack button, 1 x Clear CMOS button
التوصيلات الداخلية	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 5 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 2 x 8-pin +12V CPU, 7 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 20Gbps Type-C, 2 x USB 5Gbps headers, 3 x USB 2.0 headers, 3 x Addressable Gen2 headers, Chassis Intrusion header, CPU Over Voltage jumper, FlexKey button, Front Panel Audio header, Start button, System Panel header, PCIe mode switch, Thermal Sensor header, Thunderbolt (USB4) header
البايوس	256 Mb Flash ROM, UEFI AMI BIOS
مميزات خاصة	Dual Thunderbolt 4, Wi-Fi 7, 18+1+2+2 power stages, ROG SupremeFX audio, Aura Sync, Q-Design suite, BIOS FlashBack, Clear CMOS button
أنظمة التشغيل المدعومة	Windows 11 (22H2 and later)
الأبعاد	ATX Form Factor, 30.5 x 24.4 cm (12 x 9.6 inch)
