| العلامة التجارية |
ASUS |
| السلسلة |
TUF Gaming |
| الموديل |

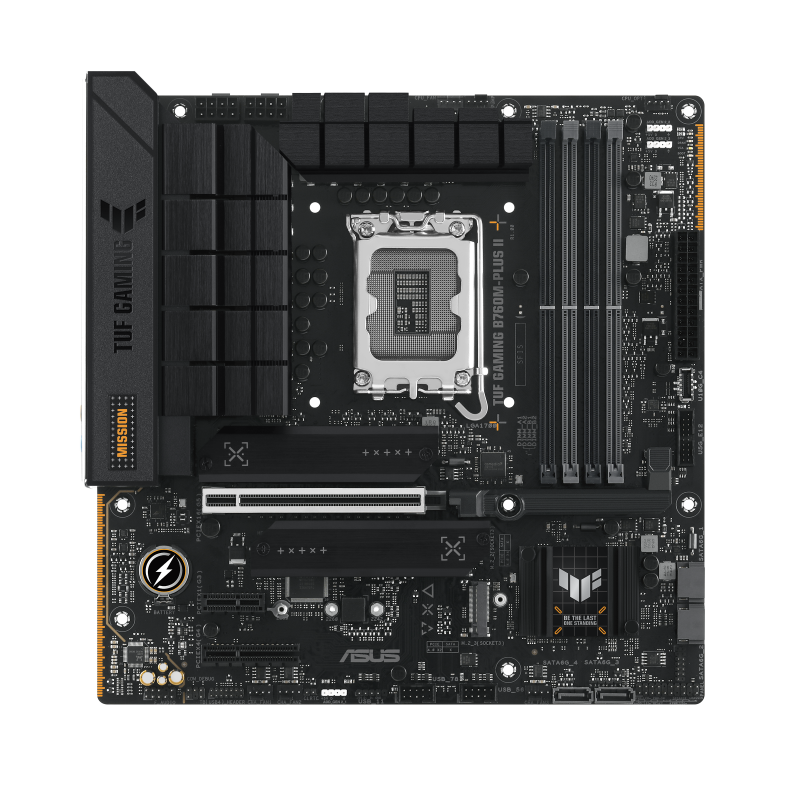

B760M-PLUS II |
| الشريحة |
Intel B760 |
| المقبس |
Intel LGA1700 |
| نوع الذاكرة |
DDR5 |
| دعم الذاكرة |
4 x DIMM, Max. 192GB, DDR5 4800-7800+ MHz (OC), Dual Channel Memory Architecture, Supports Intel XMP, ASUS Enhanced Memory Profile II (AEMP II), Non-ECC Un-buffered Memory |
| منافذ التوسعة |
1 x PCIe 5.0 x16 slot (CPU); 1 x PCIe 4.0 x4 slot (chipset); 1 x PCIe 3.0 x1 slot |
| التخزين |
3 x M.2 slots (Key M, PCIe 4.0 x4/x4/x2 depending on slot); 4 x SATA 6Gb/s ports; Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| كرت الشبكة |
1 x Realtek 2.5Gb Ethernet with TUF LANGuard |
| الصوت |
Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-Bit/192kHz, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Audio Shielding, rear optical S/PDIF out |
| منافذ USB |
Rear (8 total): 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A. Front (8 total): 1 x USB 10Gbps Type-C connector, 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (5 ports) |
| لوحة التوصيلات الخلفية |
1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Realtek 2.5Gb LAN port, 5 x Audio jacks, 1 x Optical S/PDIF out port |
| التوصيلات الداخلية |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power, 2 x 8-pin +12V Power connectors, 3 x M.2 slots, 4 x SATA 6Gb/s ports, 1 x USB 10Gbps Type-C connector, 1 x USB 5Gbps header, 3 x USB 2.0 headers, 3 x Addressable Gen 2 headers, Clear CMOS header, Front Panel Audio header (F-AUDIO), System Panel header with chassis intrusion, 1 x Thunderbolt (USB4) header |
| البايوس |
128 Mb Flash ROM, UEFI AMI BIOS |
| مميزات خاصة |
ASUS TUF Protection (DIGI+ VRM with DrMOS, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-steel back I/O), Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED), M.2 heatsinks, VRM heatsink, ProCool, pre-mounted I/O shield, SafeDIMM, Aura Sync |
| أنظمة التشغيل المدعومة |
Windows 11, Windows 10 64-bit |
| الملحقات |
2 x SATA 6Gb/s cables, 1 x M.2 rubber package, 1 x TUF GAMING sticker, 2 x Screw packages for M.2 SSD, 1 x TUF certification card, 1 x Quick start guide |
| الأبعاد |
micro-ATX Form Factor, 24.4 x 24.4 cm (9.6 x 9.6 inch) |
