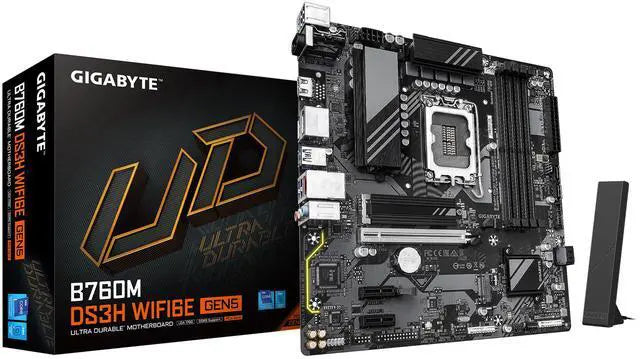

Quick Summary: Micro-ATX LGA1700 motherboard on the Intel B760 chipset with DDR5 memory up to 256GB, PCIe 5.0 graphics slot, dual M.2 with RAID-capable SATA, and 8-channel HD audio.
Key Features
- Intel LGA1700 socket, B760 chipset, 12th/13th/14th Gen support
- 4x DDR5 DIMMs, up to 256GB, DDR5-7600(OC)
- 1x PCIe 5.0 x16 with PCIe UD Slot
- 2x M.2 (CPU + chipset) + 4x SATA 6Gb/s with RAID 0/1/5/10
Technical Specifications
| Socket |
Intel LGA1700 |
| Chipset |
Intel B760 |
| Supported Processors |
12th, 13th, 14th Gen Intel Core, Pentium Gold, Celeron |
| Memory |
4x DIMM, DDR5, up to 256GB, DDR5-7600/7400/5200/4800/4000 (OC) |
| M.2 Slots |
1x CPU PCIe 4.0 x4/x2, 1x chipset |
| SATA |
4x SATA 6Gb/s, RAID 0/1/5/10 |
| PCIe Slots |
1x PCIe 5.0 x16, 2x PCIe 3.0 x1 |
| Audio |
8-channel HD Audio |
| Form Factor |
Micro-ATX |
Compatibility
Supports 12th, 13th, and 14th Gen Intel Core processors on the LGA1700 socket.
