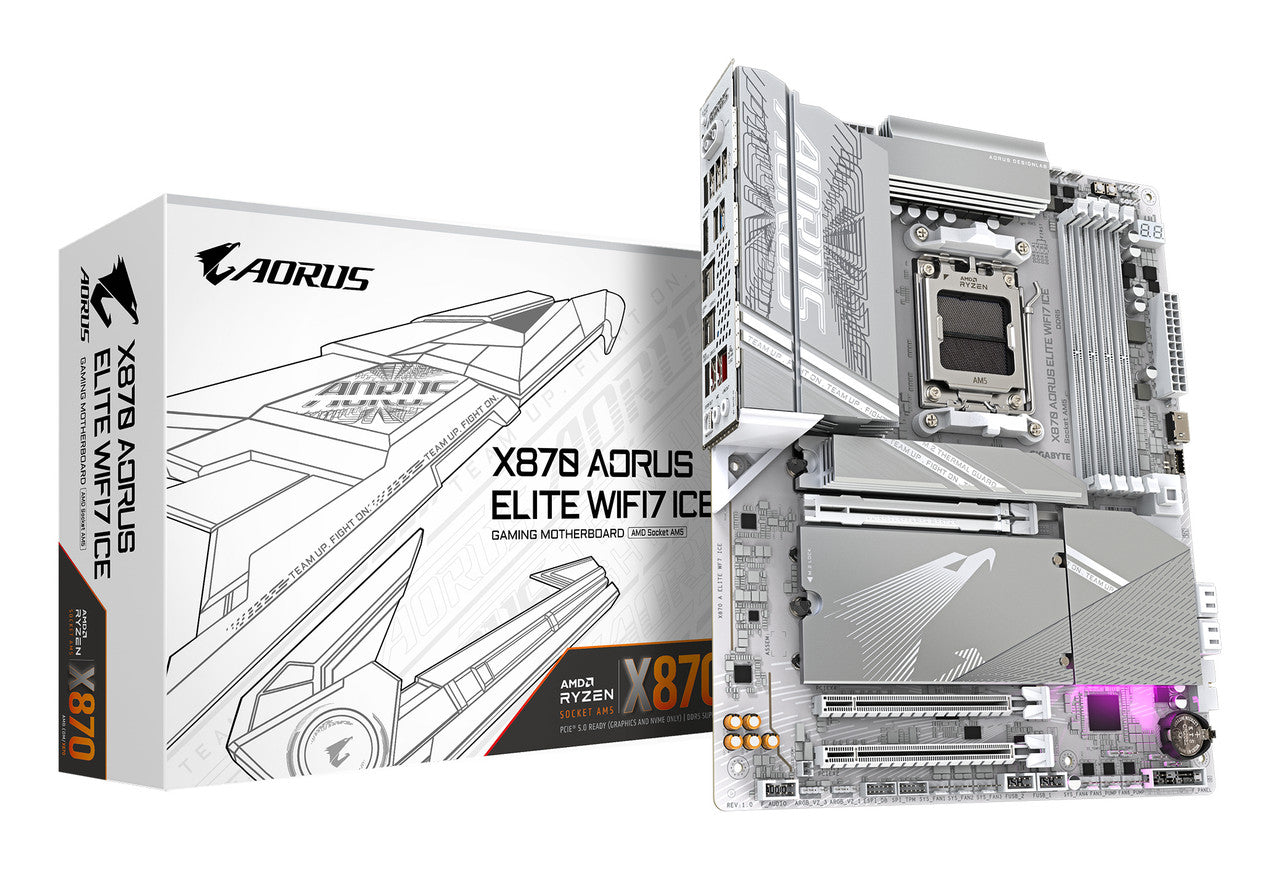

Quick Summary: Full ATX AM5 motherboard on the AMD X870 chipset in the white "ICE" colorway, with DDR5 memory up to 256GB, quad M.2 storage including three PCIe 5.0, 2.5GbE LAN, and Wi-Fi 7.
Key Features
- AMD Socket AM5, X870 chipset, white ICE colorway
- Digital twin 16+2+2 phase VRM
- 4x M.2 slots including 3x PCIe 5.0 x4
- 2.5GbE LAN + Wi-Fi 7, Bluetooth 5.4
- EZ-Latch Plus and EZ-Latch Click screwless design
Technical Specifications
| Socket |
AMD AM5 |
| Chipset |
AMD X870 |
| Supported Processors |
AMD Ryzen 9000/8000/7000 series |
| Memory |
4x DIMM, DDR5, up to 256GB, up to 8200MHz (OC) |
| M.2 Slots |
4x, including 3x PCIe 5.0 x4 |
| PCIe Slots |
1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x2 |
| SATA |
4x SATA 6Gb/s |
| LAN |
2.5GbE |
| Wireless |
Wi-Fi 7, Bluetooth 5.4 |
| Display |
HDMI, USB4 Type-C w/ DisplayPort |
| Form Factor |
ATX, white |
Compatibility
Supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket.
